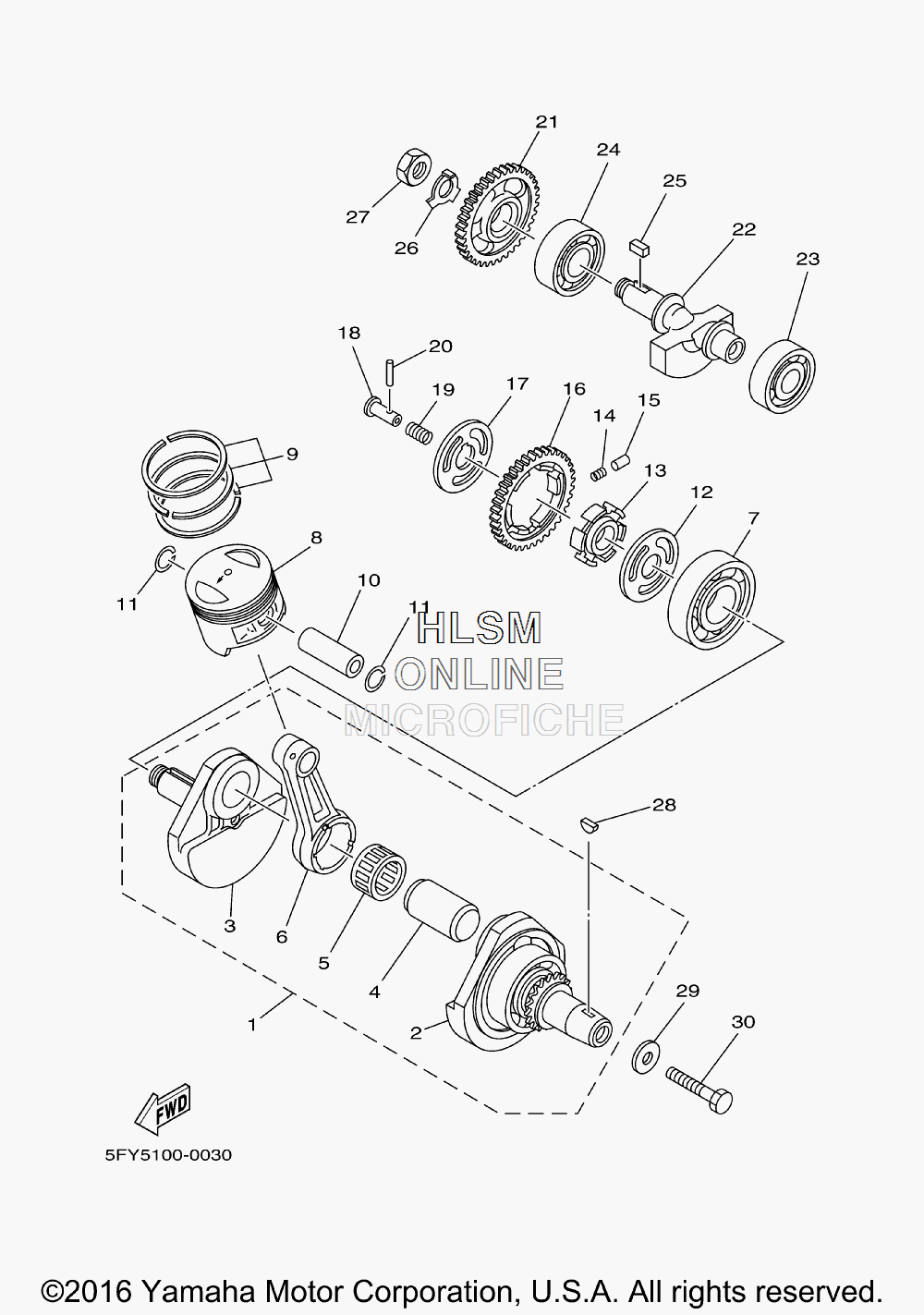

CRANKSHAFT - PISTON для Yamaha TW200 - 2017 года выпуска
-
№АртикулНазвание
-
15H0-11400-00-00 CRANKSHAFT ASSYCRANKSHAFT ASSY
-
25H0-11401-09-00 ...CRANK SUB ASSY 1...CRANK SUB ASSY 1
-
35H0-11422-00-00 ...CRANK 2...CRANK 2
-
45H0-11681-00-00 ...PIN, CRANK 1...PIN, CRANK 1
-
593310-530J3-00 ...BEARING...BEARING
-
615A-11651-00-00 ...ROD, CONNECTING...ROD, CONNECTING
-
793306-30611-00 BEARINGBEARING
-
836X-11631-00-A0 PISTON (STD)PISTON (STD)
-
836X-11636-00-00 PISTON (0.50MM O/S) (OPT)PISTON (0.50MM O/S) (OPT)
-
836X-11638-00-00 PISTON (1.00MM O/S) (OPT)PISTON (1.00MM O/S) (OPT)
-
915A-11603-00-00 PISTON RING SET (STD)PISTON RING SET (STD)
-
915A-11605-00-00 PISTON RING SET (0.50MM O/S) (OPT)PISTON RING SET (0.50MM O/S) (OPT)
-
915A-11607-00-00 PISTON RING SET (1.00MM O/S) (OPT)PISTON RING SET (1.00MM O/S) (OPT)
-
1015A-11633-00-00 PIN, PISTONPIN, PISTON
-
1193450-17044-00 CIRCLIPCIRCLIP
-
1290201-201E4-00 WASHER, PLATEWASHER, PLATE
-
135H0-11496-00-00 BOSS, BUFFERBOSS, BUFFER
-
1490501-21133-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
1593605-10090-00 PIN, DOWELPIN, DOWEL
-
165H0-11536-00-00 GEAR, DRIVE (38T)GEAR, DRIVE (38T)
-
1790214-20023-00 WASHER, CLAWWASHER, CLAW
-
1890240-07083-00 PIN, CLEVISPIN, CLEVIS
-
1990501-07629-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
2093602-13177-00 PIN, DOWELPIN, DOWEL
-
215H0-11531-00-00 GEAR, BALANCE WEIGHT (38T)GEAR, BALANCE WEIGHT (38T)
-
2215A-11454-00-00 WEIGHT 1WEIGHT 1
-
2393306-30427-00 BEARINGBEARING
-
2493306-30427-00 BEARINGBEARING
-
2590282-05013-00 KEY, STRAIGHTKEY, STRAIGHT
-
2690215-14205-00 WASHER, LOCKWASHER, LOCK
-
2790170-14284-00 NUTNUT
-
2890280-05048-00 KEY, WOODRUFFKEY, WOODRUFF
-
2990201-10508-00 WASHER, PLATEWASHER, PLATE
-
3090101-10188-00 BOLTBOLT
