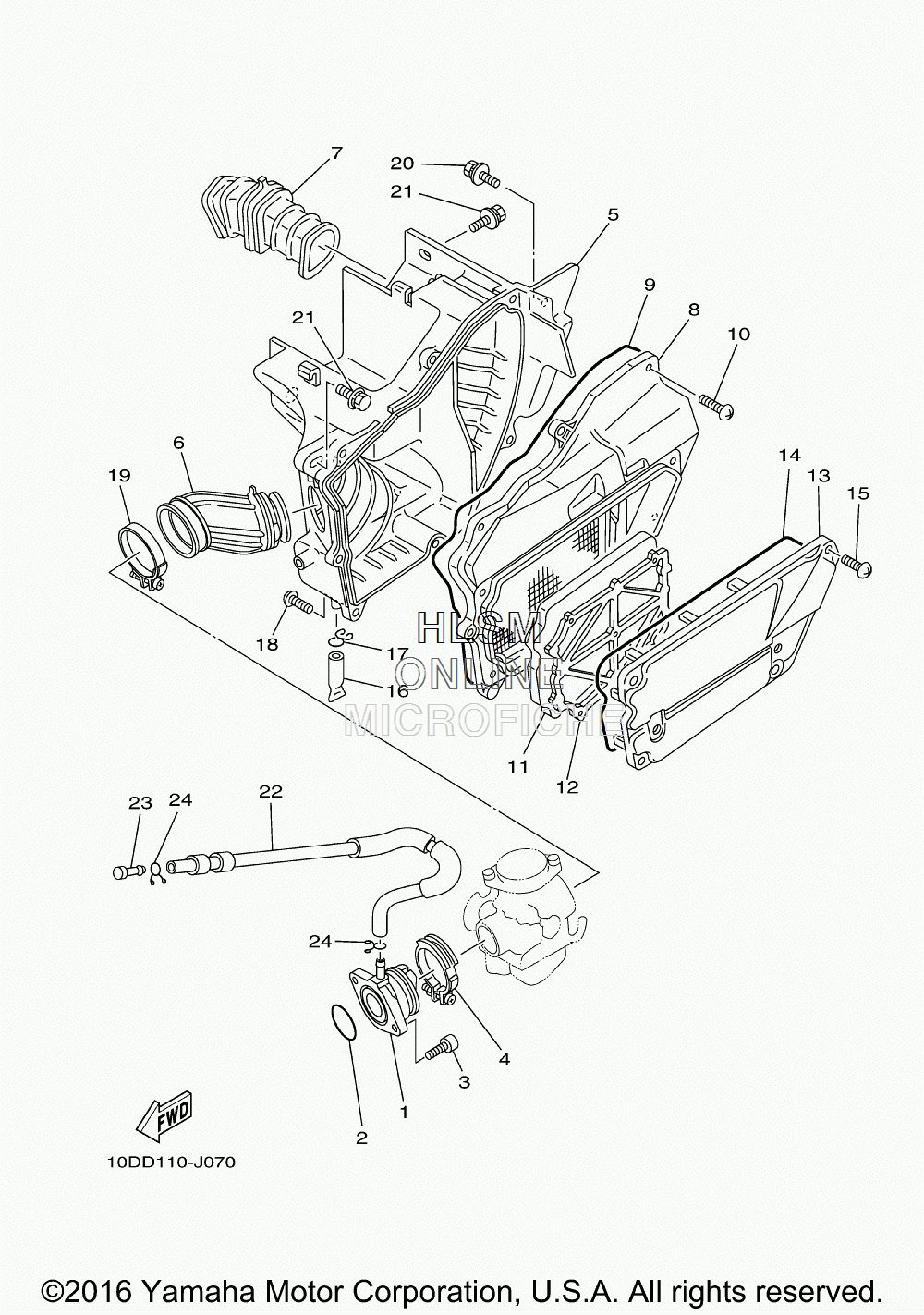

INTAKE для Yamaha TW200 - 2017 года выпуска
-
№АртикулНазвание
-
15LB-13586-02-00 JOINT, CARBURETOR 1JOINT, CARBURETOR 1
-
293210-35537-00 O-RINGO-RING
-
391317-06020-00 BOLT, HEX.SOCKET HEADBOLT, HEX.SOCKET HEAD
-
490450-44062-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
52JX-14411-02-00 CASE, AIR CLEANER 1CASE, AIR CLEANER 1
-
65LB-14453-10-00 JOINT, AIR CLEANER 1JOINT, AIR CLEANER 1
-
72JL-14437-00-00 DUCTDUCT
-
82JX-14412-00-00 CAP, CLEANER CASE 1CAP, CLEANER CASE 1
-
92JX-14452-00-00 SEALSEAL
-
1097707-50520-00 SCREW, TAPPINGSCREW, TAPPING
-
112JX-14451-00-00 ELEMENT, AIR CLEANERELEMENT, AIR CLEANER
-
122JX-14458-00-00 GUIDEGUIDE
-
132JX-14422-00-00 CAP, CLEANER CASE 2CAP, CLEANER CASE 2
-
145U8-14457-00-00 SEALSEAL
-
1590154-05005-00 SCREW, BINDINGSCREW, BINDING
-
1634X-1443E-00-00 PIPE, DRAINPIPE, DRAIN
-
1790467-11106-00 CLIPCLIP
-
1897702-50525-00 SCREW, TAPPINGSCREW, TAPPING
-
1990460-51059-00 CLAMP, HOSECLAMP, HOSE
-
2090119-06056-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2190119-06063-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
225LB-13584-00-00 PIPE, INTAKE MANIFOLDPIPE, INTAKE MANIFOLD
-
2390338-08007-00 PLUGPLUG
-
2490467-10041-00 CLIPCLIP
