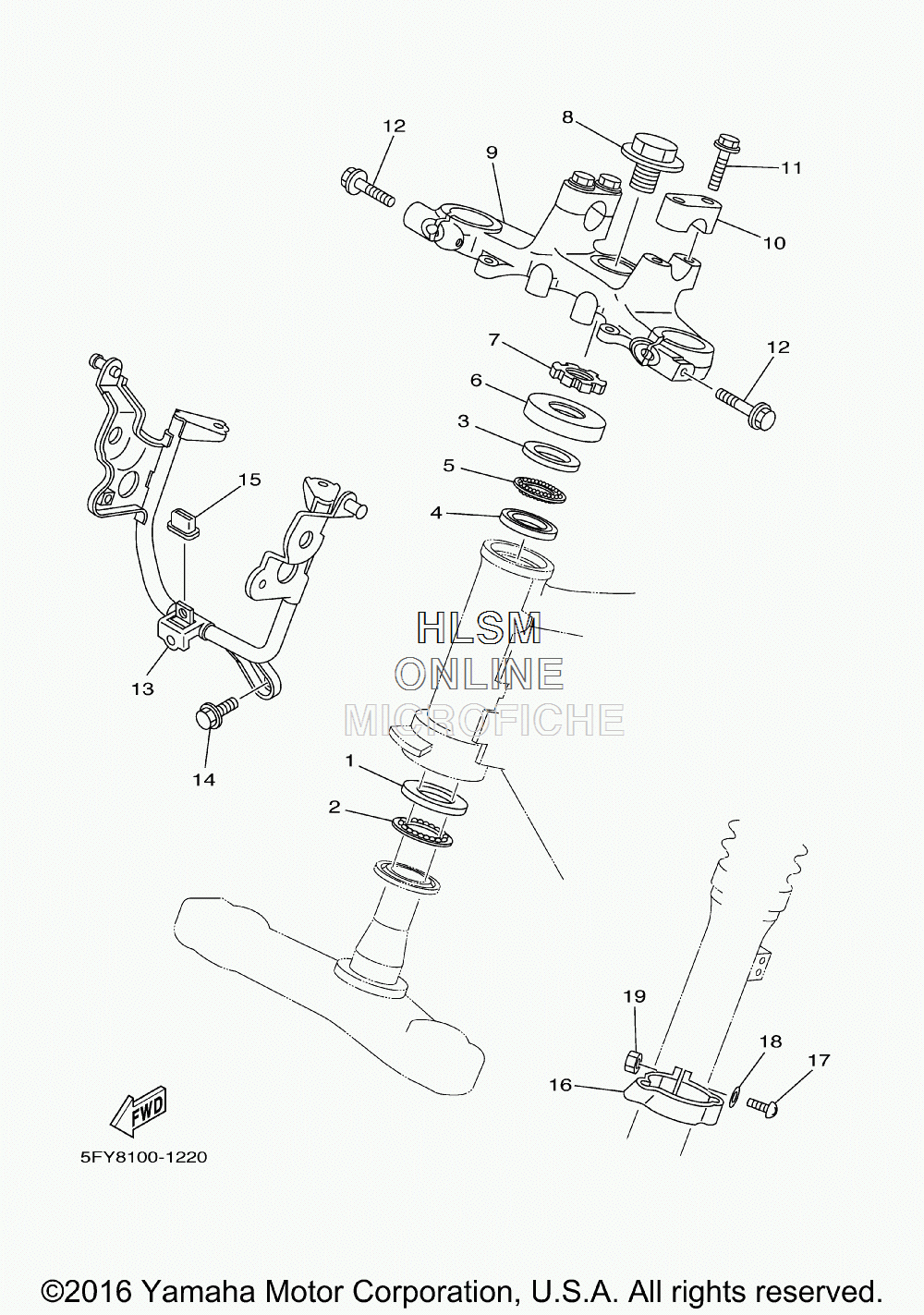

STEERING для Yamaha TW200 - 2017 года выпуска
-
№АртикулНазвание
-
1156-23412-00-00 RACE, BALL 2RACE, BALL 2
-
2156-2341E-00-00 RETAINER, BALL BEARINGRETAINER, BALL BEARING
-
322F-23411-01-00 RACE, BALL 1RACE, BALL 1
-
422F-23412-01-00 RACE, BALL 2RACE, BALL 2
-
522F-2341E-00-00 RETAINER, BALL BEARINGRETAINER, BALL BEARING
-
636X-23416-00-00 COVER, BALL RACE 2COVER, BALL RACE 2
-
790179-25004-00 NUTNUT
-
890105-14102-00 BOLT, FLANGEBOLT, FLANGE
-
92JX-23435-00-35 CROWN, HANDLE (SL - SILVER)CROWN, HANDLE (SL - SILVER)
-
101E6-23441-10-35 HOLDER, HANDLE UPPER (SL - SILVER)HOLDER, HANDLE UPPER (SL - SILVER)
-
1195824-08035-00 BOLT, FLANGEBOLT, FLANGE
-
1295024-08050-00 BOLT, FLANGE (SMALL HEAD)BOLT, FLANGE (SMALL HEAD)
-
135FY-23174-00-00 STAY, HEADLIGHTSTAY, HEADLIGHT
-
1495807-06012-00 BOLT, FLANGEBOLT, FLANGE
-
1530X-23445-00-00 DAMPERDAMPER
-
1634X-23317-00-00 HOLDER, CABLEHOLDER, CABLE
-
1798507-05018-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1892907-05600-00 WASHER, PLATEWASHER, PLATE
-
1995307-05600-00 NUTNUT
