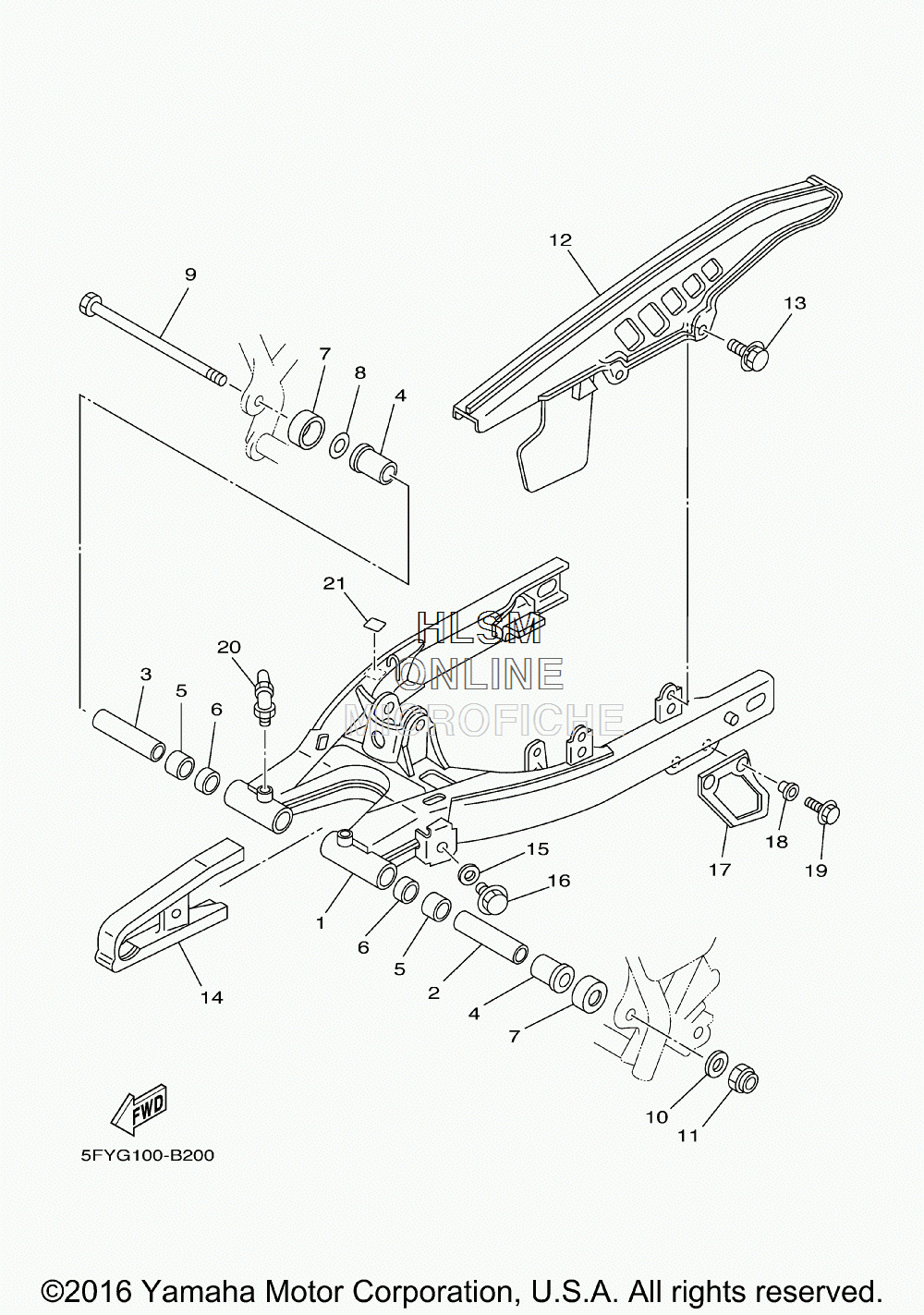

SUSPENSION - REAR ARM для Yamaha TW200 - 2017 года выпуска
-
№АртикулНазвание
-
12JX-22110-00-35 REAR ARM COMP. (SL - SILVER FOR PMIB - MINERAL BLUE)REAR ARM COMP. (SL - SILVER FOR PMIB - MINERAL BLUE)
-
22JX-22123-00-00 BUSH 1BUSH 1
-
32JX-22124-00-00 BUSH 2BUSH 2
-
490386-18146-00 BUSHBUSH
-
590380-18139-00 BUSH, SOLIDBUSH, SOLID
-
693109-18020-00 OIL SEALOIL SEAL
-
7401-22128-01-00 COVER, THRUST 1COVER, THRUST 1
-
8401-22127-00-00 SHIMSHIM
-
92JX-22141-00-00 SHAFT, PIVOTSHAFT, PIVOT
-
1090201-120E8-00 WASHER, PLATEWASHER, PLATE
-
1190185-12134-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1234X-22311-00-00 CASE, CHAINCASE, CHAIN
-
1390119-05059-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1434X-22151-01-00 SEAL, GUARDSEAL, GUARD
-
1590209-06187-00 WASHERWASHER
-
1690119-05062-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
175BT-22199-00-00 SUPPORT, CHAINSUPPORT, CHAIN
-
1890387-06737-00 COLLARCOLLAR
-
1995807-06020-00 BOLT, FLANGEBOLT, FLANGE
-
2093700-06009-00 NIPPLE, GREASENIPPLE, GREASE
-
213MA-27491-00-00 PROTECTORPROTECTOR
