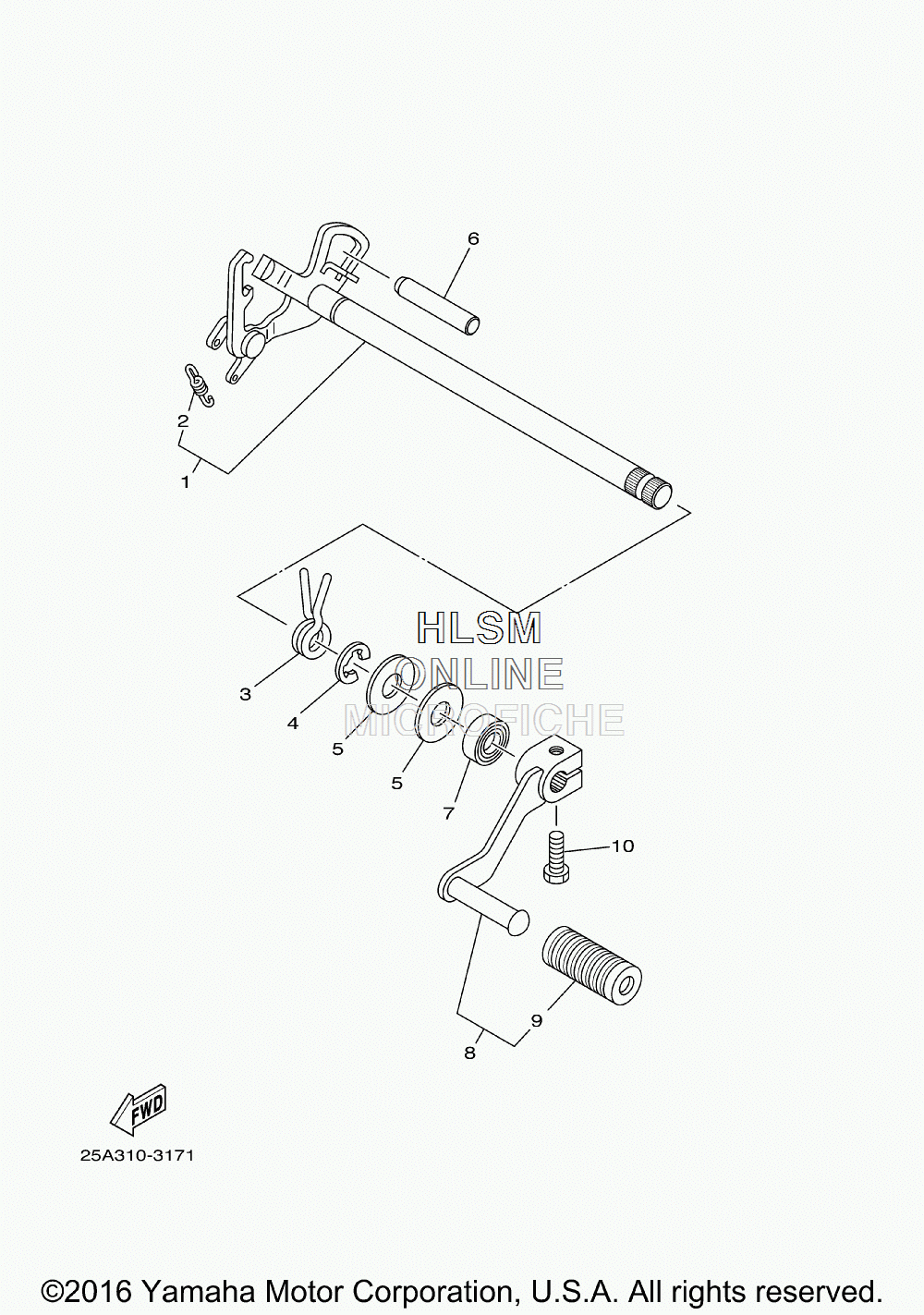

SHIFT SHAFT для Yamaha TW200 - 2017 года выпуска
-
№АртикулНазвание
-
15H0-18120-02-00 SHIFT LEVER ASSYSHIFT LEVER ASSY
-
290506-08227-00 ...SPRING, TENSION...SPRING, TENSION
-
390508-29540-00 SPRING, TORSIONSPRING, TORSION
-
499001-10600-00 CIRCLIPCIRCLIP
-
590201-12588-00 WASHER, PLATEWASHER, PLATE
-
693608-50158-00 PIN, DOWELPIN, DOWEL
-
793102-12106-00 OIL SEAL (SD 12-22-5 HS)OIL SEAL (SD 12-22-5 HS)
-
81RL-18110-00-00 SHIFT PEDAL ASSYSHIFT PEDAL ASSY
-
9132-18113-01-00 ...COVER, SHIFT PEDAL...COVER, SHIFT PEDAL
-
1097027-06020-00 BOLT, HEXAGONBOLT, HEXAGON
