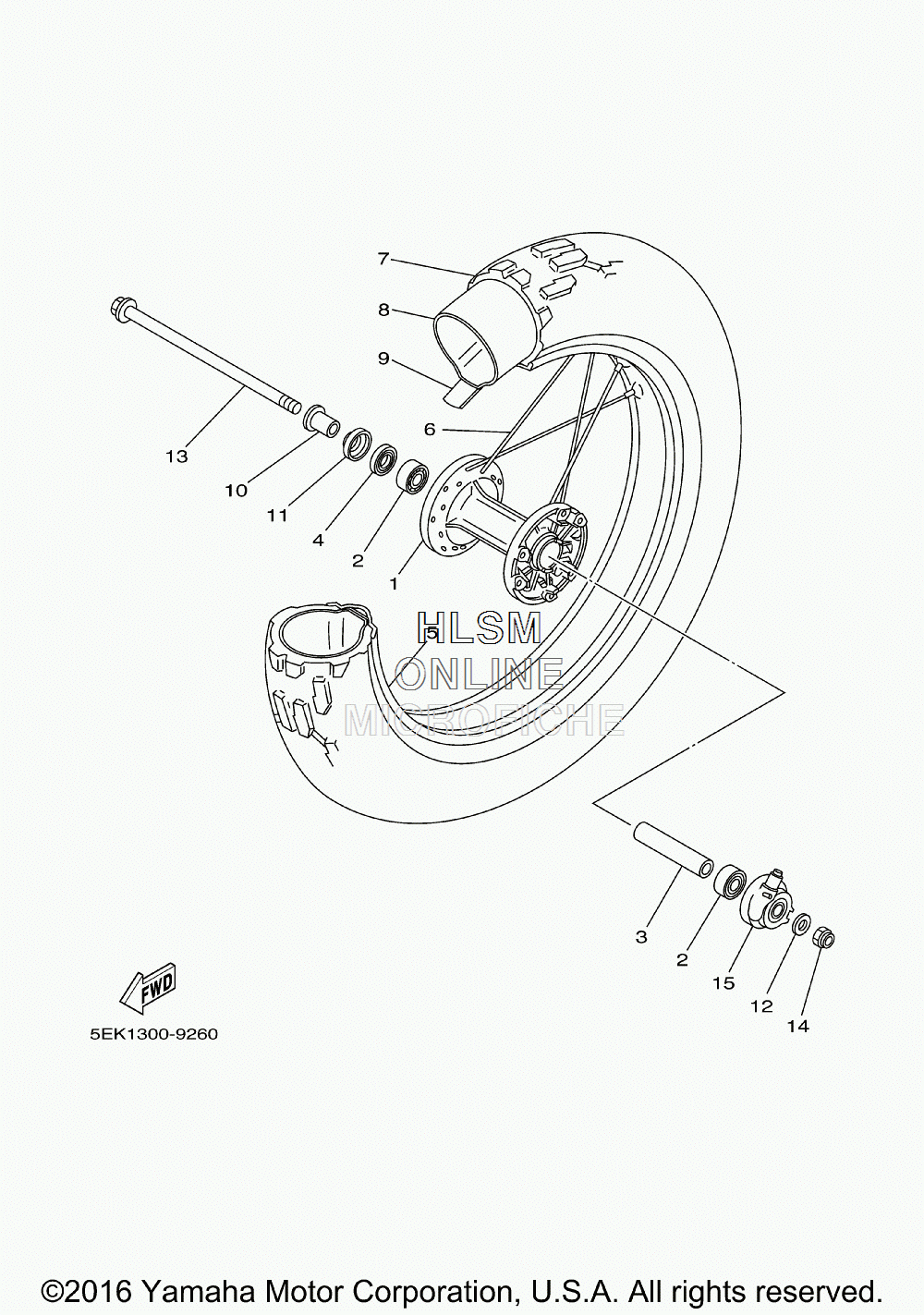

WHEEL - FRONT для Yamaha TW200 - 2017 года выпуска
-
№АртикулНазвание
-
15EK-25111-00-00 HUB, FRONTHUB, FRONT
-
293306-20203-00 BEARINGBEARING
-
390560-15312-00 SPACERSPACER
-
493102-20281-00 OIL SEAL (SD 20-35-5)OIL SEAL (SD 20-35-5)
-
594425-18002-00 RIM (2.50-18)RIM (2.50-18)
-
64TP-25304-10-00 SPOKE SETSPOKE SET
-
794113-184R7-00 TIRE (130/80-18 M/C 66P TW31)TIRE (130/80-18 M/C 66P TW31)
-
894213-18232-00 TUBE (130/80-18 M/C TR4)TUBE (130/80-18 M/C TR4)
-
994340-18086-00 BAND, RIM (2.50-18)BAND, RIM (2.50-18)
-
1090387-15600-00 COLLARCOLLAR
-
11322-25118-00-00 COVER, HUB DUSTCOVER, HUB DUST
-
1290201-14740-00 WASHER, PLATEWASHER, PLATE
-
132JX-25181-10-00 AXLE, WHEELAXLE, WHEEL
-
1495607-14100-00 NUT, UNUT, U
-
155EK-25190-00-00 GEAR UNIT ASSYGEAR UNIT ASSY
