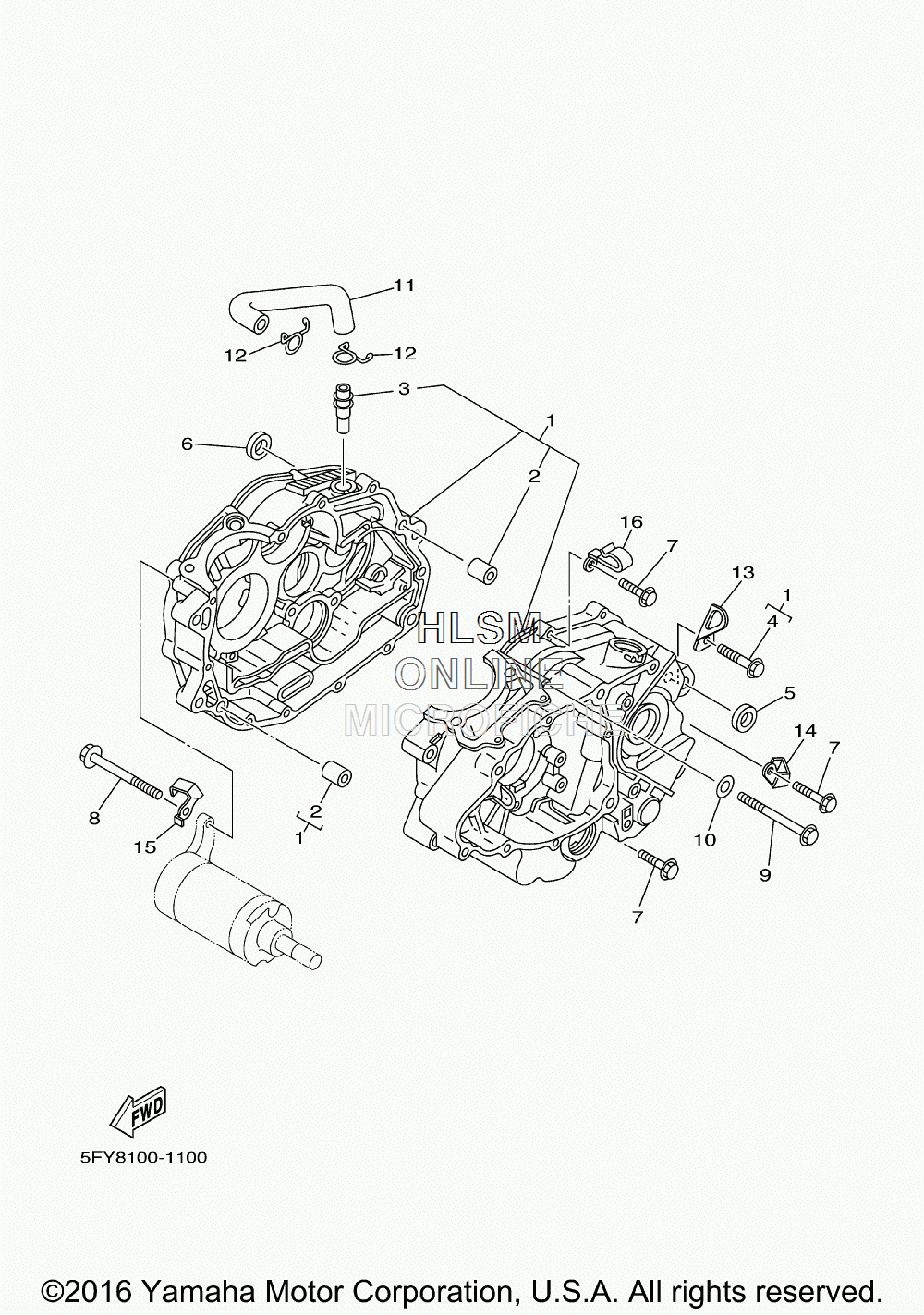

CRANKCASE для Yamaha TW200 - 2017 года выпуска
-
№АртикулНазвание
-
11RL-15100-03-00 CRANKCASE ASSYCRANKCASE ASSY
-
299530-12016-00 ...PIN, DOWEL...PIN, DOWEL
-
3371-11167-01-00 ...PIPE, BREATHER 2...PIPE, BREATHER 2
-
495027-06040-00 ...BOLT, FLANGE...BOLT, FLANGE
-
590387-125F1-00 COLLARCOLLAR
-
690387-125F1-00 COLLARCOLLAR
-
795027-06030-00 BOLT, FLANGEBOLT, FLANGE
-
895027-06090-00 BOLT, FLANGEBOLT, FLANGE
-
995027-06085-00 BOLT, FLANGEBOLT, FLANGE
-
1090430-06014-00 GASKETGASKET
-
113Y1-11166-00-00 PIPE, BREATHER 1PIPE, BREATHER 1
-
1290467-14015-00 CLIPCLIP
-
1390465-08020-00 CLAMPCLAMP
-
1490462-08225-00 CLAMPCLAMP
-
1590462-08224-00 CLAMPCLAMP
-
1690465-08127-00 CLAMPCLAMP
