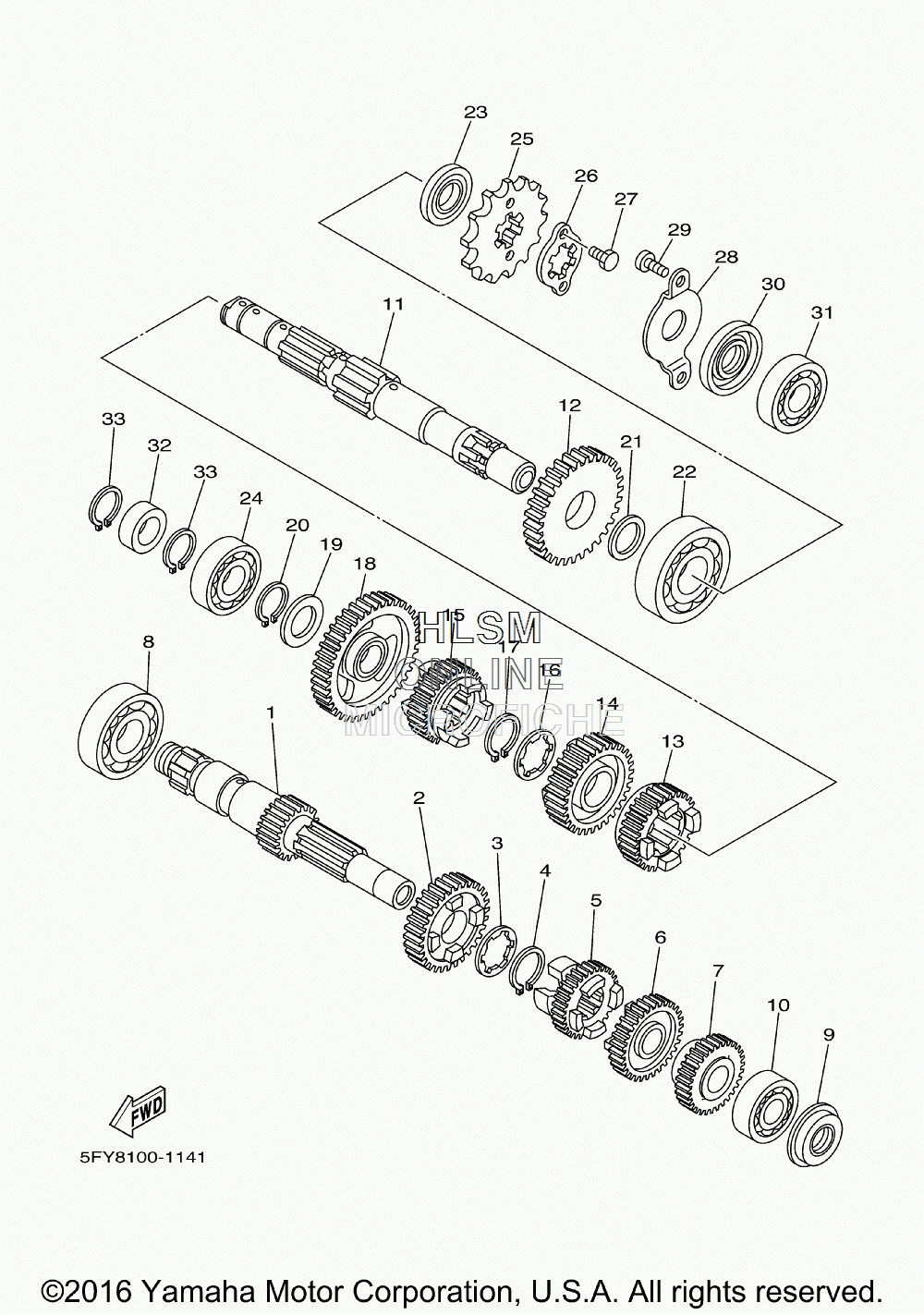

TRANSMISSION для Yamaha TW200 - 2017 года выпуска
-
№АртикулНазвание
-
115A-17411-01-00 AXLE, MAIN (12T)AXLE, MAIN (12T)
-
215A-17151-01-00 GEAR, 5TH PINION (28T)GEAR, 5TH PINION (28T)
-
390209-16209-00 WASHERWASHER
-
493410-20038-00 CIRCLIPCIRCLIP
-
55H0-17121-01-00 GEAR, 2ND PINION (22T)GEAR, 2ND PINION (22T)
-
615A-17141-00-00 GEAR, 4TH PINION (25T)GEAR, 4TH PINION (25T)
-
715A-17121-00-00 GEAR, 2ND PINION (19T)GEAR, 2ND PINION (19T)
-
893306-20401-00 BEARINGBEARING
-
993101-15101-00 OIL SEALOIL SEAL
-
1093306-20201-00 BEARINGBEARING
-
112JX-17402-00-00 DRIVE AXLE ASSYDRIVE AXLE ASSY
-
1215A-17221-00-00 GEAR, 2ND WHEEL (34T)GEAR, 2ND WHEEL (34T)
-
1315A-17241-00-00 GEAR, 4TH WHEEL (26T)GEAR, 4TH WHEEL (26T)
-
1415A-17231-00-00 GEAR, 3RD WHEEL (29T)GEAR, 3RD WHEEL (29T)
-
151EV-17251-00-00 GEAR, 5TH WHEEL (23T)GEAR, 5TH WHEEL (23T)
-
1690209-18208-00 WASHERWASHER
-
1793410-22039-00 CIRCLIPCIRCLIP
-
1815A-17211-01-00 GEAR, 1ST WHEEL (34T)GEAR, 1ST WHEEL (34T)
-
1990201-17257-00 WASHER, PLATEWASHER, PLATE
-
2099009-17400-00 CIRCLIPCIRCLIP
-
2190201-220J8-00 WASHER, PLATEWASHER, PLATE
-
2293306-20580-00 BEARINGBEARING
-
2393102-22389-00 OIL SEALOIL SEAL
-
2493306-20332-00 BEARINGBEARING
-
2593823-14149-00 SPROCKET, DRIVE (14T)SPROCKET, DRIVE (14T)
-
262JX-17456-00-00 HOLDER, SPROCKETHOLDER, SPROCKET
-
2797007-05010-00 BOLTBOLT
-
282JX-17471-00-00 PLATE, COVERPLATE, COVER
-
2998507-06010-00 SCREW, PAN HEADSCREW, PAN HEAD
-
3093102-17187-00 OIL SEALOIL SEAL
-
3193306-20313-00 BEARINGBEARING
-
3290560-17368-00 SPACERSPACER
-
3399009-17400-00 CIRCLIPCIRCLIP
