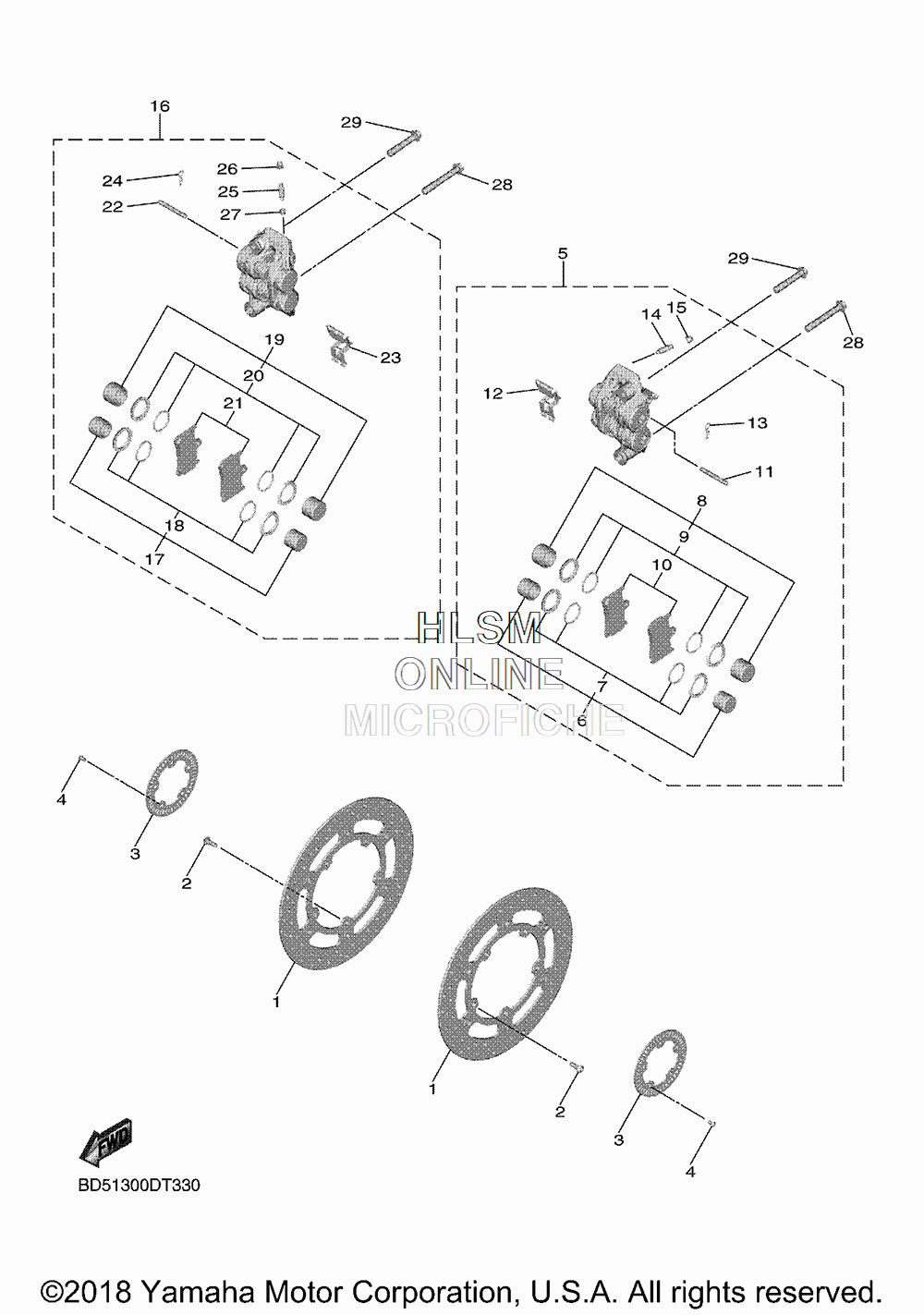

BRAKE - FRONT CALIPER для Yamaha NIKIN - 2019 года выпуска
-
№АртикулНазвание
-
11RC-2581T-00-00 DISC BRAKE ASSYDISC BRAKE ASSY
-
290109-064G6-00 BOLTBOLT
-
32PW-2517G-00-00 ROTOR, SENSORROTOR, SENSOR
-
490149-05030-00 SCREWSCREW
-
5BD5-2580T-00-00 CALIPER ASSY (LEFT)CALIPER ASSY (LEFT)
-
64SV-25802-00-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
73MA-25803-10-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
84SV-25802-10-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
93GM-25803-10-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
10BD5-25805-00-00 ...BRAKE PAD KIT...BRAKE PAD KIT
-
114SV-25924-00-00 ...PIN, PAD...PIN, PAD
-
1213S-25919-00-00 ...SUPPORT, PAD...SUPPORT, PAD
-
133GM-25925-00-00 ...CLIP...CLIP
-
141J3-25824-00-00 ...SCREW, BLEED...SCREW, BLEED
-
15306-25825-01-00 ...CAP...CAP
-
16BD5-2580U-00-00 CALIPER ASSY (RIGHT)CALIPER ASSY (RIGHT)
-
174SV-25802-00-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
183MA-25803-10-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
194SV-25802-10-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
203GM-25803-10-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
21BD5-25805-00-00 ...BRAKE PAD KIT...BRAKE PAD KIT
-
224SV-25924-00-00 ...PIN, PAD...PIN, PAD
-
2313S-25919-00-00 ...SUPPORT, PAD...SUPPORT, PAD
-
243GM-25925-00-00 ...CLIP...CLIP
-
255VS-25824-00-00 ...SCREW, BLEED...SCREW, BLEED
-
26306-25825-01-00 ...CAP...CAP
-
275VS-25975-00-00 ...RUBBER, BUSHING...RUBBER, BUSHING
-
2890105-10440-00 BOLT, FLANGEBOLT, FLANGE
-
2990105-10483-00 BOLT, FLANGEBOLT, FLANGE
