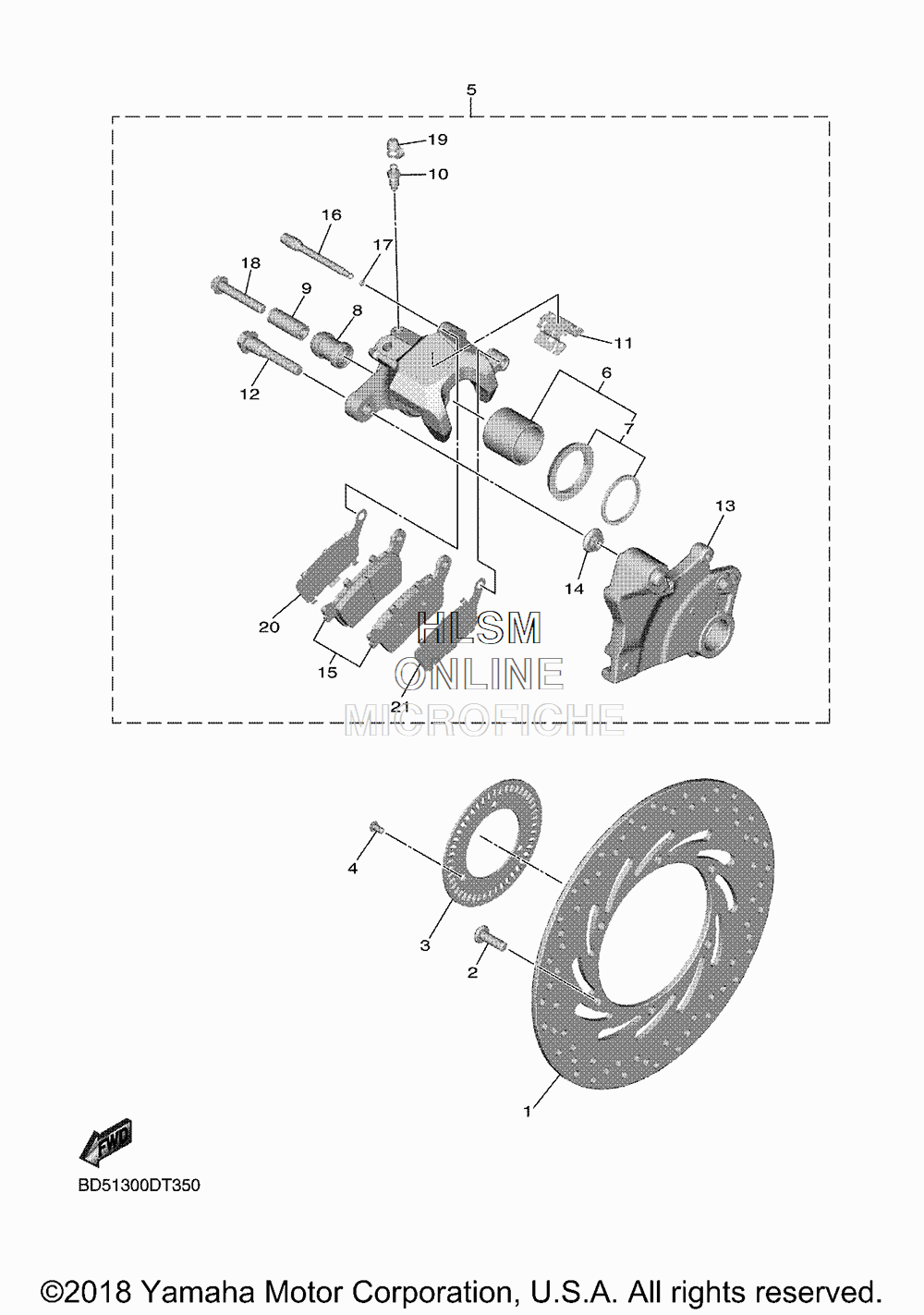

BRAKE - REAR CALIPER для Yamaha NIKIN - 2019 года выпуска
-
№АртикулНазвание
-
1BD5-2582W-00-00 DISC, REAR BRAKE 2DISC, REAR BRAKE 2
-
290109-083G4-00 BOLTBOLT
-
31XC-2517G-00-00 ROTOR, SENSORROTOR, SENSOR
-
490149-05030-00 SCREWSCREW
-
5BD5-2580W-00-00 CALIPER ASSY, REAR 2CALIPER ASSY, REAR 2
-
6BD5-25802-00-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
75SL-25803-00-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
85SL-25917-00-00 ...BOOT, CALIPER...BOOT, CALIPER
-
95SL-25838-00-00 ...SLEEVE, CALIPER...SLEEVE, CALIPER
-
108CR-25824-00-00 ...SCREW, BLEED...SCREW, BLEED
-
11BD5-25919-50-00 ...SUPPORT, PAD...SUPPORT, PAD
-
122DF-25914-50-00 ...PIN, SLIDE...PIN, SLIDE
-
13BD5-25921-50-00 ...BRACKET, SUPPORT...BRACKET, SUPPORT
-
143JD-25917-00-00 ...BOOT, CALIPER...BOOT, CALIPER
-
15BD5-25806-00-00 ...BRAKE PAD KIT 2...BRAKE PAD KIT 2
-
162DF-25924-50-00 ...PIN, PAD...PIN, PAD
-
173P6-25925-00-00 ...STOPPER...STOPPER
-
185SL-25926-00-00 ...BOLT...BOLT
-
191UY-25825-51-00 ...CAP...CAP
-
20BD5-25827-00-00 ...SHIM, CALIPER...SHIM, CALIPER
-
21BD5-25827-10-00 ...SHIM, CALIPER...SHIM, CALIPER
