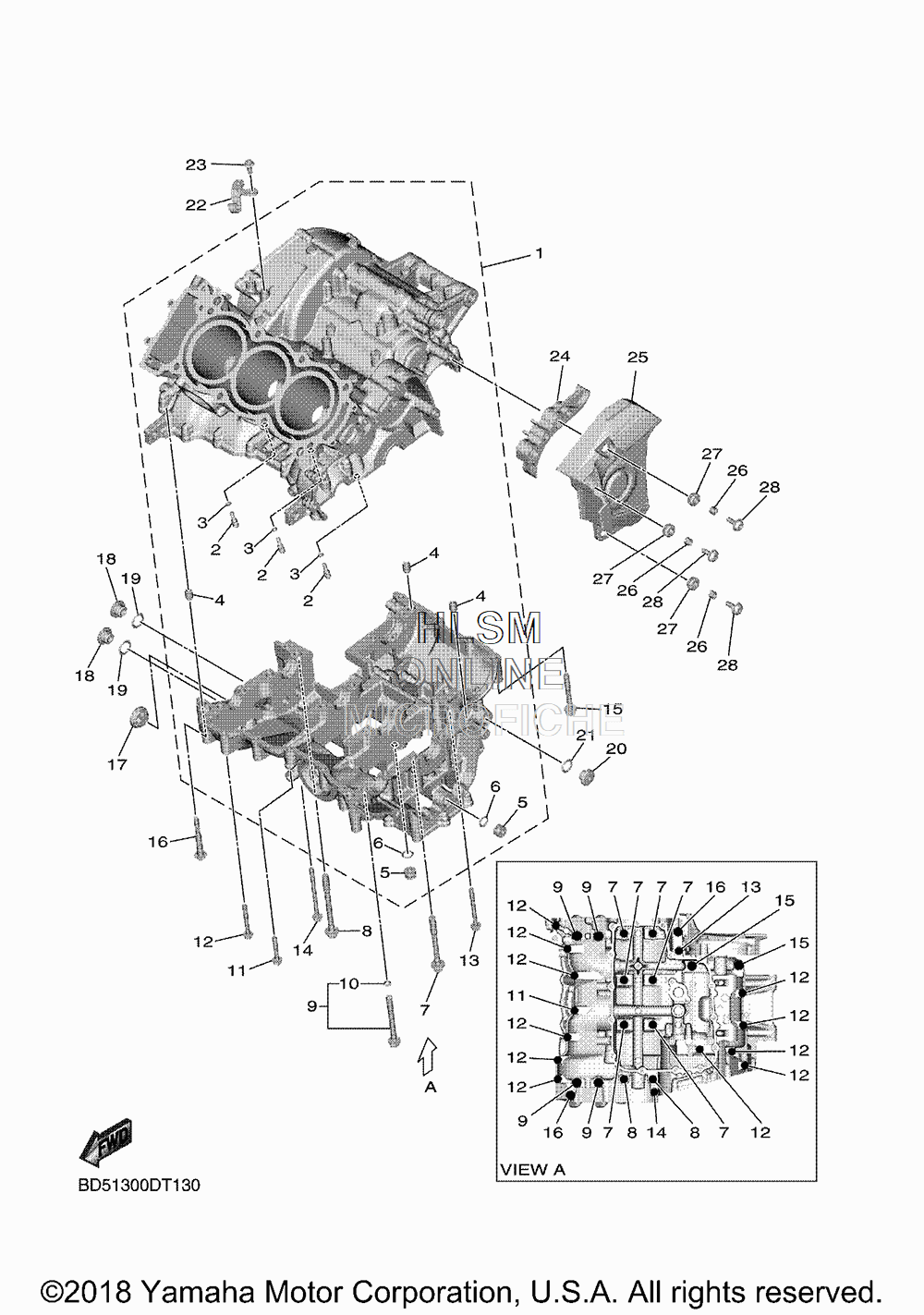

CRANKCASE для Yamaha NIKIN - 2019 года выпуска
-
№АртикулНазвание
-
1BS2-15100-09-00 CRANKCASE ASSYCRANKCASE ASSY
-
25EB-15155-00-00 ...NOZZLE 3...NOZZLE 3
-
393210-04092-00 ...O-RING...O-RING
-
499530-10014-00 ...PIN, DOWEL...PIN, DOWEL
-
590338-16262-00 ...PLUG...PLUG
-
693210-12790-00 ...O-RING...O-RING
-
790119-09013-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
890119-09010-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
923P-15156-00-00 BOLT, CRANKCASE JOURNALBOLT, CRANKCASE JOURNAL
-
1093210-07540-00 ...O-RING...O-RING
-
1195812-06040-00 BOLT, FLANGEBOLT, FLANGE
-
1295812-06050-00 BOLT, FLANGEBOLT, FLANGE
-
1395812-06065-00 BOLT, FLANGEBOLT, FLANGE
-
1490105-06202-00 BOLT, FLANGEBOLT, FLANGE
-
1595812-08060-00 BOLT, FLANGEBOLT, FLANGE
-
1690109-06100-00 BOLTBOLT
-
172H7-15361-00-00 GAUGE, LEVELGAUGE, LEVEL
-
1836Y-15189-00-00 PLUGPLUG
-
1993210-16325-00 O-RINGO-RING
-
2090340-14011-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
2193210-14369-00 O-RINGO-RING
-
221RC-15441-00-00 HOLDER, CLUTCH CABLEHOLDER, CLUTCH CABLE
-
2390110-06108-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
241RC-15377-00-00 GUIDE, INLETGUIDE, INLET
-
25BS2-15418-00-00 COVER, CHAIN CASECOVER, CHAIN CASE
-
2690387-06286-00 COLLARCOLLAR
-
2790480-13018-00 GROMMETGROMMET
-
2890111-06130-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
