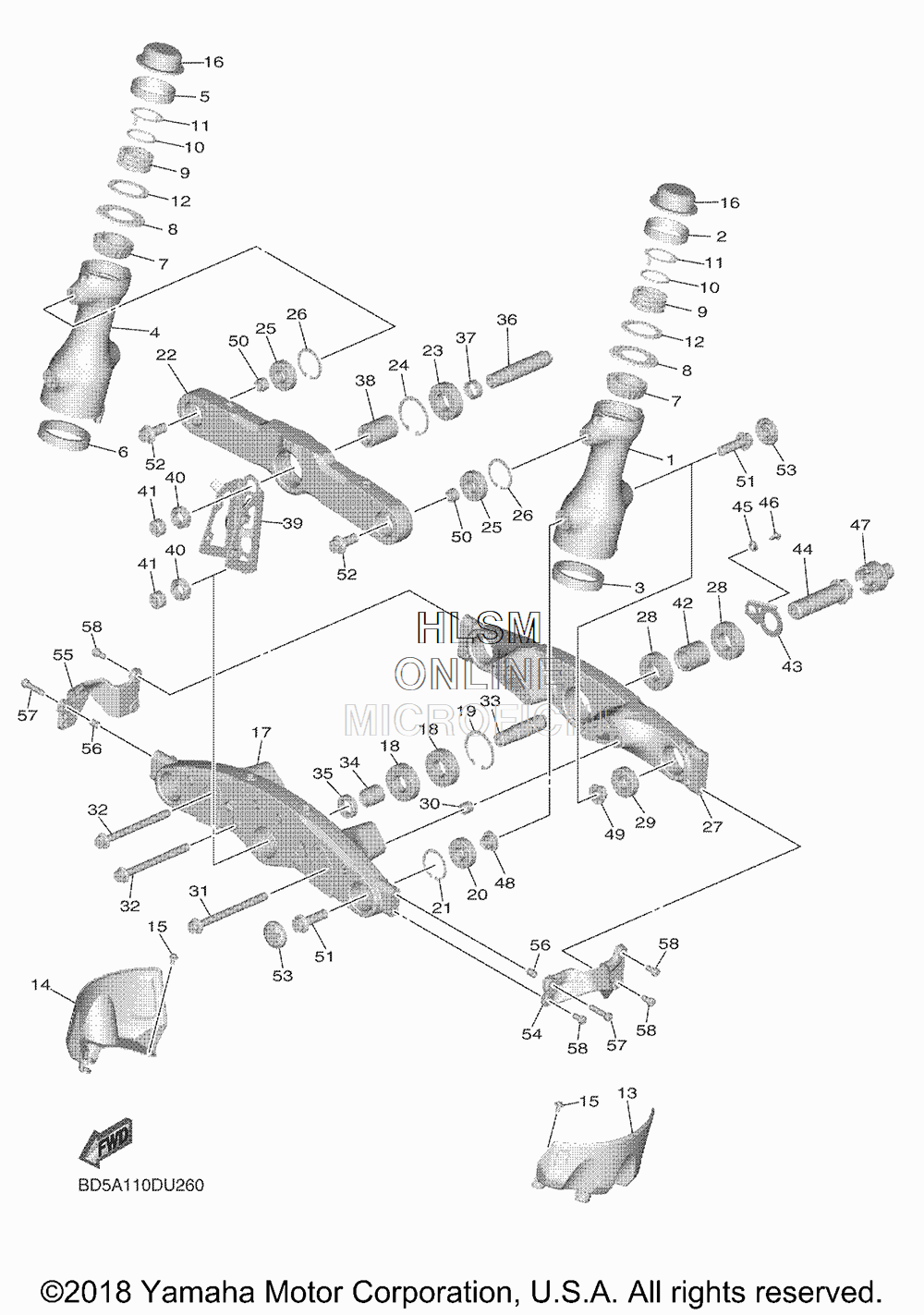

STEERING для Yamaha NIKIN - 2019 года выпуска
-
№АртикулНазвание
-
1BD5-21311-10-00 PIPE STEERING HEADPIPE STEERING HEAD
-
2BD5-234G1-00-00 RACE, OUTERRACE, OUTER
-
3BD5-234G2-00-00 RACE, OUTER 2RACE, OUTER 2
-
4BD5-21311-20-00 PIPE STEERING HEADPIPE STEERING HEAD
-
5BD5-234G1-00-00 RACE, OUTERRACE, OUTER
-
6BD5-234G2-00-00 RACE, OUTER 2RACE, OUTER 2
-
7BD5-234G0-00-00 INNER RACE ASSY.INNER RACE ASSY.
-
8BD5-23415-00-00 COVER, BALL RACE 1COVER, BALL RACE 1
-
9BD5-23357-00-00 NUTNUT
-
10BD5-23386-00-00 WASHER, SPECIAL 2WASHER, SPECIAL 2
-
11BD5-23418-00-00 WASHER, SPECIALWASHER, SPECIAL
-
1290201-400R2-00 WASHER, PLATEWASHER, PLATE
-
13BD5-23123-00-00 COVER, UNDER 1COVER, UNDER 1
-
14BD5-23133-00-00 COVER, LOWER 2COVER, LOWER 2
-
1590109-06245-00 BOLTBOLT
-
16BD5-24610-00-00 CAP ASSYCAP ASSY
-
17BD5-23361-00-P1 ARM 1 (MT2 - MAT TITAN 2)ARM 1 (MT2 - MAT TITAN 2)
-
1893306-20531-00 BEARINGBEARING
-
1993420-61M07-00 CIRCLIPCIRCLIP
-
2093306-20417-00 BEARINGBEARING
-
2199009-47500-00 CIRCLIPCIRCLIP
-
22BD5-23375-00-P1 ARM 3 (MT2 - MAT TITAN 2)ARM 3 (MT2 - MAT TITAN 2)
-
2393306-20531-00 BEARINGBEARING
-
2493420-61M07-00 CIRCLIPCIRCLIP
-
2593306-20417-00 BEARINGBEARING
-
2699009-47500-00 CIRCLIPCIRCLIP
-
27BD5-23371-00-P1 ARM 2 (MT2 - MAT TITAN 2)ARM 2 (MT2 - MAT TITAN 2)
-
2893306-20531-00 BEARINGBEARING
-
2993306-20417-00 BEARINGBEARING
-
3099530-17016-00 PIN, DOWELPIN, DOWEL
-
3195817-12150-00 BOLT, FLANGEBOLT, FLANGE
-
3295812-12140-00 BOLT, FLANGEBOLT, FLANGE
-
33BD5-23346-10-00 BOLT 1BOLT 1
-
3490387-24004-00 COLLARCOLLAR
-
3590387-24002-00 COLLARCOLLAR
-
36BD5-23356-10-00 BOLT 2BOLT 2
-
3790387-24003-00 COLLARCOLLAR
-
3890387-24005-00 COLLARCOLLAR
-
39BD5-23325-00-00 PLATE, FRONT ARMPLATE, FRONT ARM
-
4090185-22009-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
41BD5-23469-00-00 CAP, BOLTCAP, BOLT
-
4290387-28027-00 COLLARCOLLAR
-
43BD5-23788-00-00 PLATE, BACK UPPLATE, BACK UP
-
44BD5-23394-10-00 BOLT, SPECIALBOLT, SPECIAL
-
4590560-08251-00 SPACERSPACER
-
4690110-06340-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
47BD5-23741-01-00 CAP 1CAP 1
-
4890387-14022-00 COLLARCOLLAR
-
4990387-15021-00 COLLARCOLLAR
-
5090387-14023-00 COLLARCOLLAR
-
51BD5-23493-10-00 BOLTBOLT
-
52BD5-23492-10-00 BOLTBOLT
-
53BD5-2319W-00-00 CAPCAP
-
54BD5-23432-00-00 STOPPER, STEERING 1STOPPER, STEERING 1
-
55BD5-23439-00-00 STOPPER, STEERING 2STOPPER, STEERING 2
-
5699530-10116-00 PIN, DOWELPIN, DOWEL
-
5791312-08035-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
5891317-08014-00 BOLT, HEX. SOCKET HEADBOLT, HEX. SOCKET HEAD
