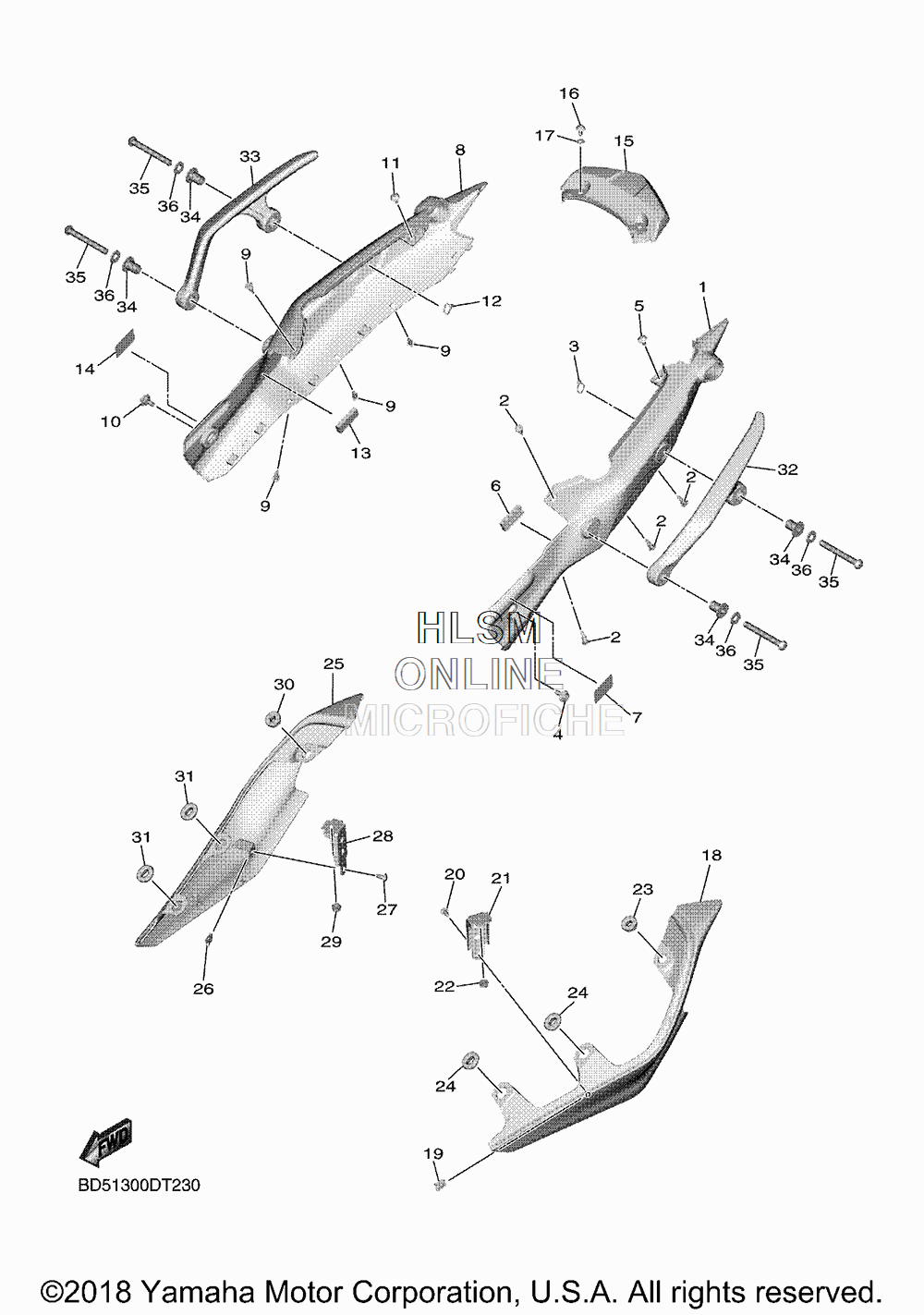

SIDE COVER для Yamaha NIKIN - 2019 года выпуска
-
№АртикулНазвание
-
1BD5-21731-00-00 COVER, SIDE 3COVER, SIDE 3
-
290269-06008-00 RIVETRIVET
-
390465-10098-00 CLAMPCLAMP
-
490109-06200-00 BOLTBOLT
-
590111-05045-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
690520-07001-00 DAMPER, PLATEDAMPER, PLATE
-
72C0-21567-00-00 TAPE, 2TAPE, 2
-
8BD5-21741-00-00 COVER, SIDE 4COVER, SIDE 4
-
990269-06008-00 RIVETRIVET
-
1090109-06200-00 BOLTBOLT
-
1190111-05045-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
1290465-10098-00 CLAMPCLAMP
-
1390520-07001-00 DAMPER, PLATEDAMPER, PLATE
-
142C0-21567-00-00 TAPE, 2TAPE, 2
-
15BD5-2171E-00-00 COVER, SIDE 5COVER, SIDE 5
-
1690111-05002-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
1790202-05180-00 WASHER, PLATEWASHER, PLATE
-
18BD5-21711-00-P0 COVER, SIDE 1 (DNMG - DARK GRAY)COVER, SIDE 1 (DNMG - DARK GRAY)
-
1990183-05042-00 NUT, SPRINGNUT, SPRING
-
2097707-50012-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
21BD5-2474F-00-00 STAY, FRONT 1STAY, FRONT 1
-
2295702-06500-00 NUT, FLANGENUT, FLANGE
-
2390480-13567-00 GROMMETGROMMET
-
2490480-01558-00 GROMMETGROMMET
-
25BD5-21721-00-P0 COVER, SIDE 2 (DNMG - DARK GRAY)COVER, SIDE 2 (DNMG - DARK GRAY)
-
2690183-05042-00 NUT, SPRINGNUT, SPRING
-
2797707-50012-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
28BD5-2474F-00-00 STAY, FRONT 1STAY, FRONT 1
-
2995702-06500-00 NUT, FLANGENUT, FLANGE
-
3090480-13567-00 GROMMETGROMMET
-
3190480-01558-00 GROMMETGROMMET
-
32BD5-2474A-00-00 ASSIST, GRIPASSIST, GRIP
-
33BD5-2474W-00-00 ASSIST, GRIP 2ASSIST, GRIP 2
-
3490387-08112-00 COLLARCOLLAR
-
3592017-08070-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
3692907-08200-00 WASHERWASHER
