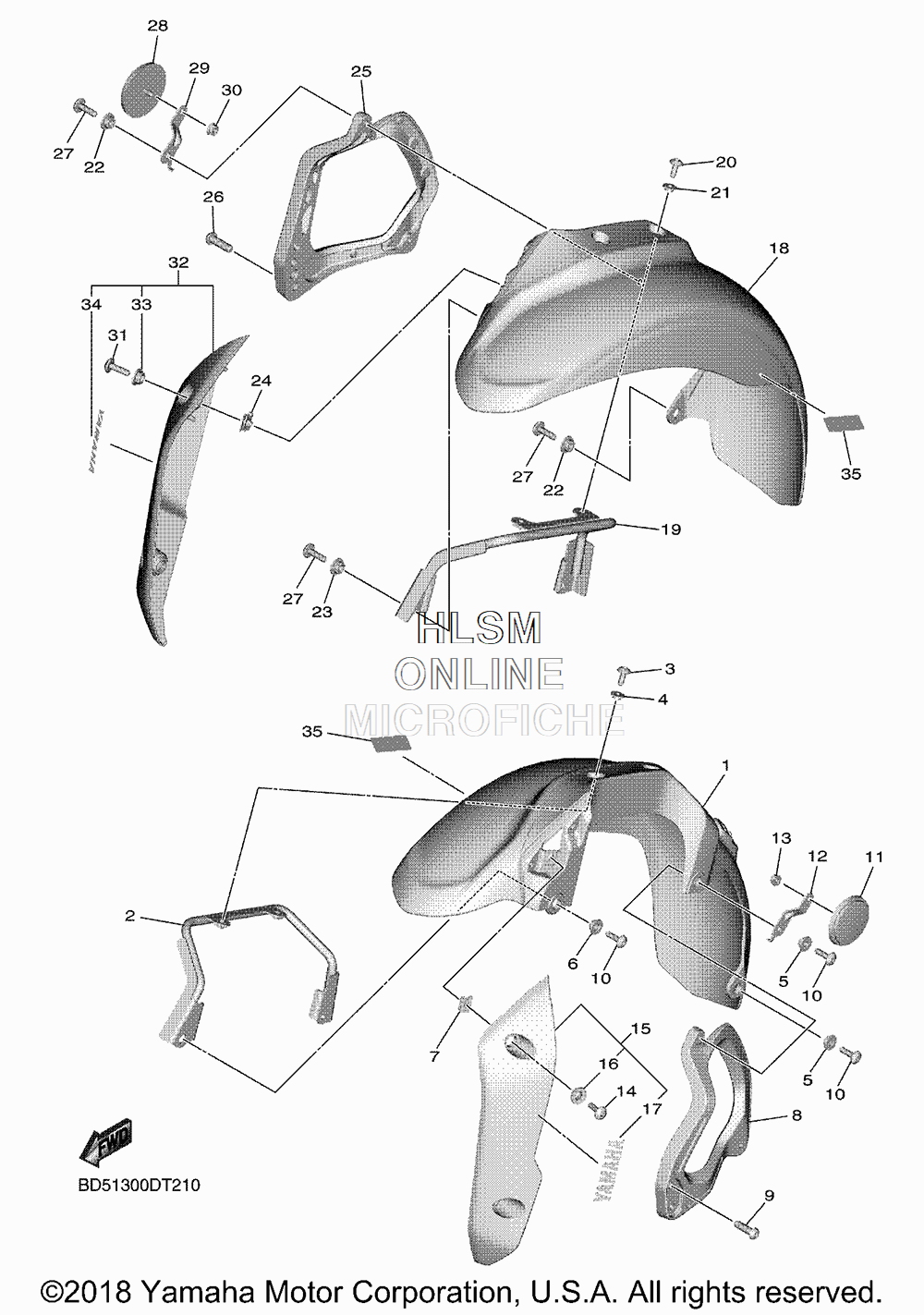

FENDER - FRONT для Yamaha NIKIN - 2019 года выпуска
-
№АртикулНазвание
-
1BD5-21511-00-00 FENDER, FRONTFENDER, FRONT
-
2BD5-21562-00-00 STAY, FENDER 3STAY, FENDER 3
-
390111-06097-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
490387-06184-00 COLLARCOLLAR
-
590387-07052-00 COLLARCOLLAR
-
690387-09021-00 COLLARCOLLAR
-
790183-060A6-00 NUT, SPRINGNUT, SPRING
-
8BD5-21587-00-00 STAY 1STAY 1
-
990111-08092-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
1090111-06123-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
114AG-85111-00-00 REFLECTOR, FRONT 1REFLECTOR, FRONT 1
-
12BD5-85112-00-00 BRACKET, REFLECTOR 1BRACKET, REFLECTOR 1
-
1395702-06500-00 NUT, FLANGENUT, FLANGE
-
1490111-06178-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
15BD5-Y215F-00-P0 STAY FENDER 1 ASSY (DNMG - DARK GRAY)STAY FENDER 1 ASSY (DNMG - DARK GRAY)
-
1690387-09021-00 ...COLLAR...COLLAR
-
1799244-00080-00 ...EMBLEM, YAMAHA...EMBLEM, YAMAHA
-
18BD5-21556-00-00 FENDER, FRONT 2FENDER, FRONT 2
-
19BD5-21563-00-00 STAY, FENDER 4STAY, FENDER 4
-
2090111-06097-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
2190387-06184-00 COLLARCOLLAR
-
2290387-07052-00 COLLARCOLLAR
-
2390387-09021-00 COLLARCOLLAR
-
2490183-060A6-00 NUT, SPRINGNUT, SPRING
-
25BD5-21588-00-00 STAY 2STAY 2
-
2690111-08092-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
2790111-06123-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
284AG-85111-00-00 REFLECTOR, FRONT 1REFLECTOR, FRONT 1
-
29BD5-85122-00-00 BRACKET, REFLECTOR 2BRACKET, REFLECTOR 2
-
3095702-06500-00 NUT, FLANGENUT, FLANGE
-
3190111-06178-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
32BD5-Y215G-00-P0 STAY FENDER 2 ASSY (DNMG - DARK GRAY)STAY FENDER 2 ASSY (DNMG - DARK GRAY)
-
3390387-09021-00 ...COLLAR...COLLAR
-
3499244-00080-00 ...EMBLEM, YAMAHA...EMBLEM, YAMAHA
-
35BD5-2151A-20-00 LABEL 1LABEL 1
