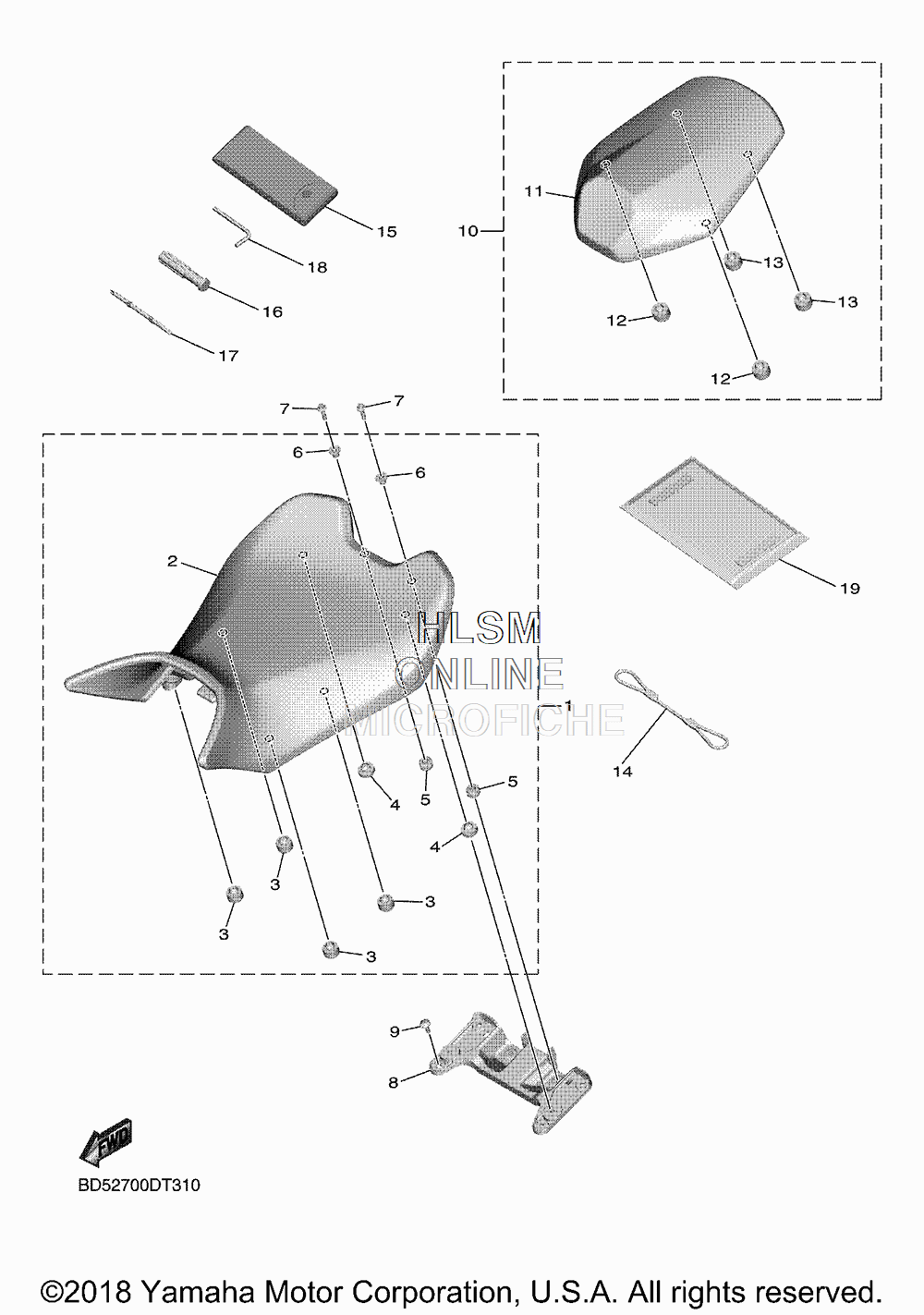

SEAT для Yamaha NIKIN - 2019 года выпуска
-
№АртикулНазвание
-
1BD5-24710-00-00 SINGLE SEAT ASSYSINGLE SEAT ASSY
-
2BD5-2470F-00-00 ...SEAT COVER COMP....SEAT COVER COMP.
-
3278-27114-00-00 ...STOPPER, MAIN STAND...STOPPER, MAIN STAND
-
422W-24741-00-00 ...PAD, SEAT...PAD, SEAT
-
590480-14604-00 ...GROMMET...GROMMET
-
690387-07391-00 ...COLLAR...COLLAR
-
790110-06172-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
8BD5-21946-00-00 BRACKET, SEAT FITTINGBRACKET, SEAT FITTING
-
990149-06023-00 SCREWSCREW
-
10BD5-24750-00-00 TANDEM SEAT ASSYTANDEM SEAT ASSY
-
11BD5-2470H-00-00 ...SEAT COVER COMP. , 2...SEAT COVER COMP. , 2
-
12371-27114-00-00 ...STOPPER, MAIN STAND...STOPPER, MAIN STAND
-
134GL-27114-00-00 ...STOPPER, MAIN STAND...STOPPER, MAIN STAND
-
144B5-21398-00-00 HANGER, HELMETHANGER, HELMET
-
155PX-28111-00-00 BAGBAG
-
162H7-28151-00-00 GRIP, DRIVERGRIP, DRIVER
-
172GV-28152-00-00 DRIVERDRIVER
-
1814B-28164-00-00 WRENCH, HEXAGON 8WRENCH, HEXAGON 8
-
194KG-28186-10-00 POUCHPOUCH
Все узлы модели:
- AIR CLEANER W/ INTAKE
- AIR INDUCTION SYSTEM
- BRAKE - FRONT CALIPER
- BRAKE - FRONT MASTER CYLINDER
- BRAKE - REAR CALIPER
- BRAKE - REAR MASTER CYLINDER
- CAMSHAFT W/ CHAIN
- CLUTCH
- COWLING
- COWLING 2
- CRANKCASE
- CRANKCASE COVER
- CRANKSHAFT - PISTON
- CYLINDER HEAD
- ELECTRICAL
- ELECTRICAL 2
- ELECTRICAL 3
- EXHAUST
- FENDER - FRONT
- FENDER - REAR
- FLASHER LIGHT
- FRAME
- FRONT FORK 1
- FRONT FORK 2
- FUEL TANK
- GENERATOR
- HANDLEBAR W/ CABLES
- HANDLEBAR W/ SWITCHES - LEVERS
- HEADLIGHT
- INSTRUMENT PANEL
- INTAKE
- MODEL INFO - MANUALS
- OIL CLEANER
- OIL PUMP
- RADIATOR
- • SEAT
- SHIFT CAM W/ FORK
- SHIFT SHAFT
- SIDE COVER
- STAND W/ FOOTREST - BRAKE PEDAL
- STARTER
- STARTING MOTOR
- STEERING
- STEERING - 2
- SUSPENSION - REAR ARM
- SUSPENSION - REAR SHOCK ABSORBER
- TAILLIGHT
- TRANSMISSION
- VALVE
- WATER PUMP
- WHEEL - FRONT
- WHEEL - REAR
