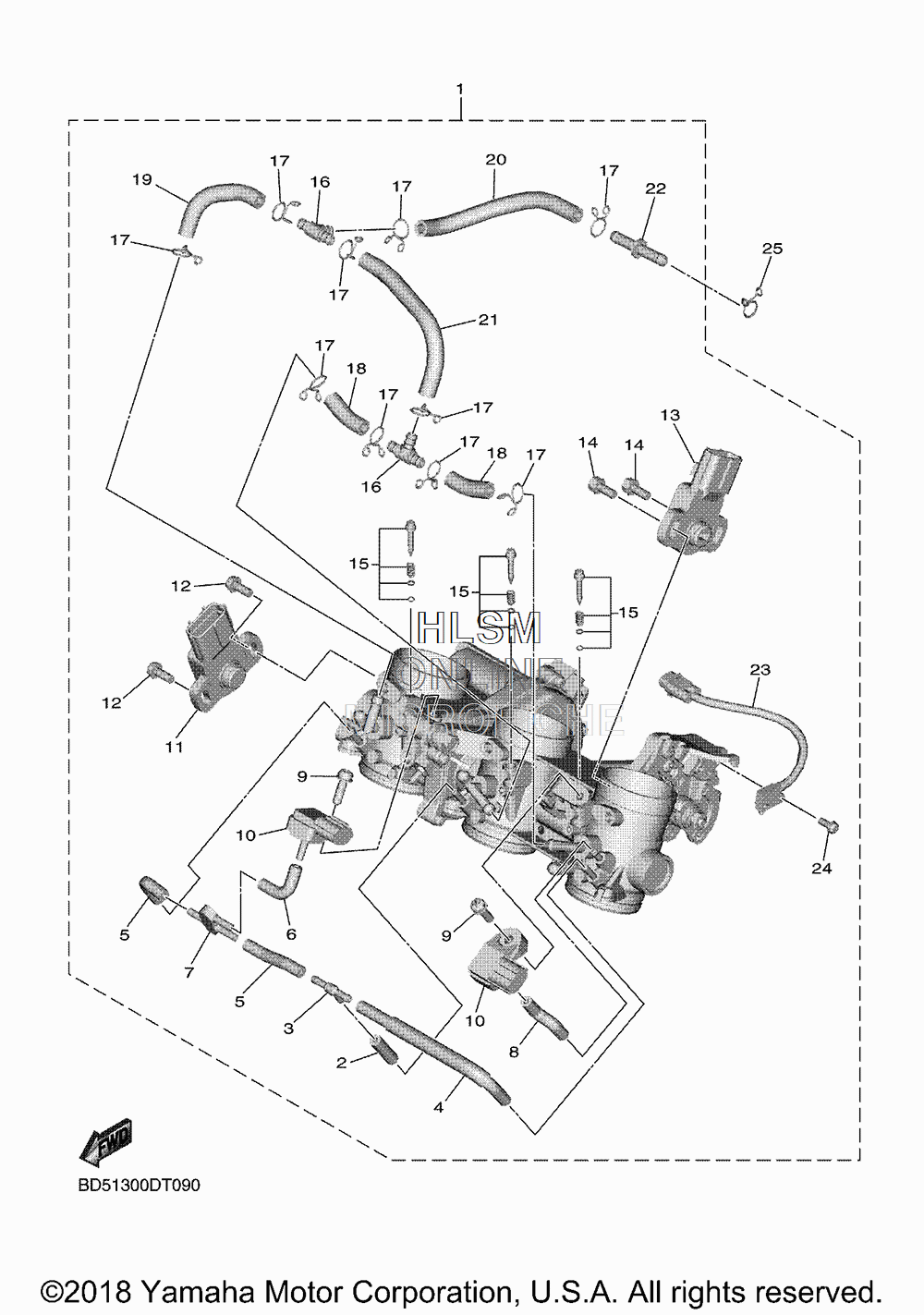

INTAKE для Yamaha NIKIN - 2019 года выпуска
-
№АртикулНазвание
-
1BD5-13750-10-00 THROTTLE BODY ASSYTHROTTLE BODY ASSY
-
21RC-13544-00-00 ...HOSE, VACUUM SENSING 2...HOSE, VACUUM SENSING 2
-
368V-24376-00-00 ...PIPE, JOINT 1...PIPE, JOINT 1
-
41RC-13542-00-00 ...HOSE, VACUUM SENSING 1...HOSE, VACUUM SENSING 1
-
58FP-14349-20-00 ...PIPE...PIPE
-
68FP-14349-00-00 ...PIPE...PIPE
-
73XV-14251-00-00 ...NIPPLE...NIPPLE
-
88FP-14349-30-00 ...PIPE...PIPE
-
92C0-14216-00-00 ...SCREW...SCREW
-
101WS-82380-00-00 ...SENSOR, PRESSURE...SENSOR, PRESSURE
-
1113S-85885-00-00 ...THROTTLE SENSOR ASSY...THROTTLE SENSOR ASSY
-
128CC-14216-10-00 ...SCREW...SCREW
-
131MC-85884-00-00 ...ACCELERATOR SENSOR ASSY...ACCELERATOR SENSOR ASSY
-
145FL-14216-00-00 ...SCREW...SCREW
-
152C0-14105-00-00 ...PILOT SCREW SET...PILOT SCREW SET
-
1690413-06031-00 ...WAY 3...WAY 3
-
1790467-100A1-00 ...CLIP...CLIP
-
1814B-14465-00-00 ...PIPE...PIPE
-
191RC-14466-00-00 ...PIPE...PIPE
-
20BD5-1443J-10-00 ...PIPE...PIPE
-
211RC-1444J-00-00 ...PIPE...PIPE
-
224XY-14568-00-00 ...JOINT...JOINT
-
231MC-81860-00-00 ...SWITCH ASSY...SWITCH ASSY
-
241MC-14216-00-00 ...SCREW...SCREW
-
2590467-090A2-00 CLIPCLIP
