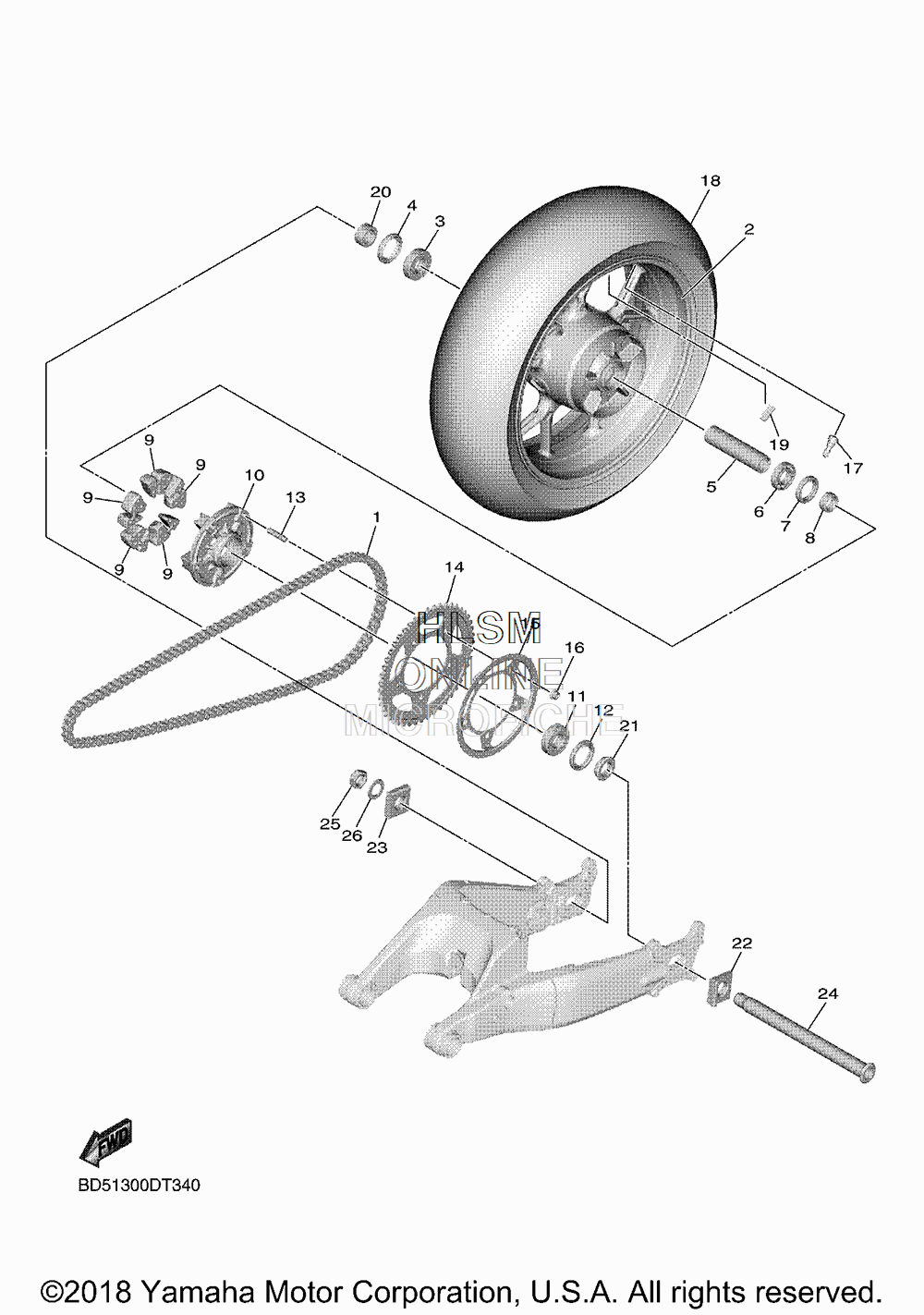

WHEEL - REAR для Yamaha NIKIN - 2019 года выпуска
-
№АртикулНазвание
-
194582-49114-00 CHAINCHAIN
-
2BD5-25338-00-P0 CAST WHEEL, REAR (DPBM15 - PURPLISH BLUE)CAST WHEEL, REAR (DPBM15 - PURPLISH BLUE)
-
393306-20531-00 BEARINGBEARING
-
493106-40013-00 OIL SEALOIL SEAL
-
52CR-25317-00-00 SPACER, BEARINGSPACER, BEARING
-
693306-07806-00 BEARINGBEARING
-
793106-35042-00 OIL SEALOIL SEAL
-
85EB-25377-00-00 COLLAR, WHEELCOLLAR, WHEEL
-
9BD5-25364-00-00 DAMPERDAMPER
-
102CR-25366-00-00 CLUTCH, HUBCLUTCH, HUB
-
1193306-20531-00 BEARINGBEARING
-
1293106-40013-00 OIL SEALOIL SEAL
-
1390116-10048-00 BOLT, STUDBOLT, STUD
-
14BD5-25447-00-00 SPROCKET, DRIVEN (47T)SPROCKET, DRIVEN (47T)
-
15BD5-2537W-00-00 BRACKET 1BRACKET 1
-
1695602-10200-00 NUT, S/L FLANGENUT, S/L FLANGE
-
1793900-00030-00 VALVE, RIM (TR412) (TAIHEIYO)VALVE, RIM (TR412) (TAIHEIYO)
-
1894119-17076-00 TIRE (190/55R17 M/C 75V)TIRE (190/55R17 M/C 75V)
-
192CR-25398-00-00 BALANCER, WHEEL (5G) (UN)BALANCER, WHEEL (5G) (UN)
-
2090387-28017-00 COLLARCOLLAR
-
2190387-28029-00 COLLARCOLLAR
-
225VY-25388-00-00 PULLER, CHAIN 1PULLER, CHAIN 1
-
235VY-25389-01-00 PULLER, CHAIN 2PULLER, CHAIN 2
-
244C8-25381-00-00 AXLE, WHEELAXLE, WHEEL
-
2590185-24007-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2690201-25020-00 WASHER, PLATEWASHER, PLATE
