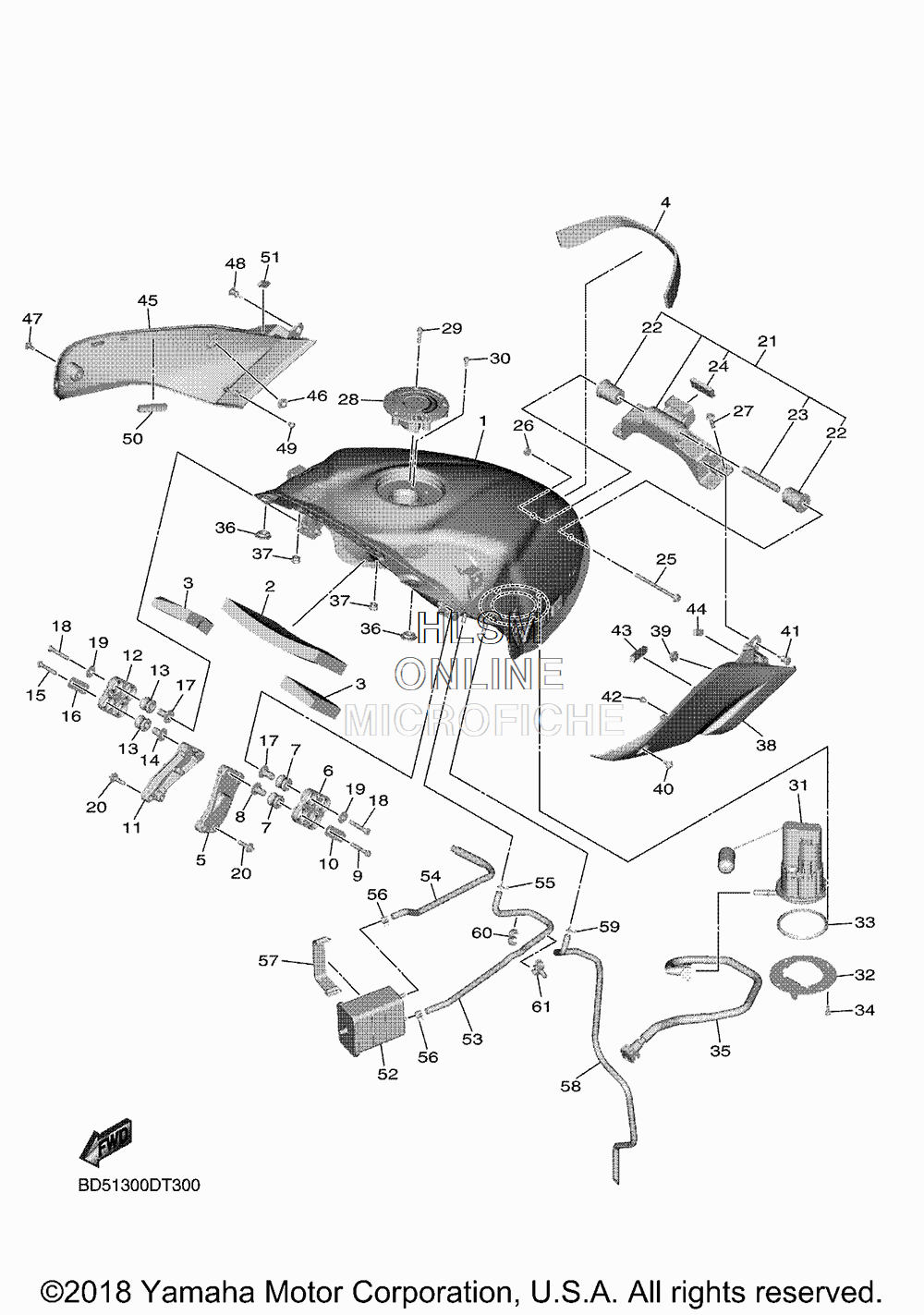

FUEL TANK для Yamaha NIKIN - 2019 года выпуска
-
№АртикулНазвание
-
1BD5-YK241-00-P0 FUEL TANK COMP. (DNMG - DARK GRAY)FUEL TANK COMP. (DNMG - DARK GRAY)
-
290520-20013-00 DAMPER, PLATEDAMPER, PLATE
-
390520-20014-00 DAMPER, PLATEDAMPER, PLATE
-
4BD5-2414K-00-00 DAMPER, PLATE 3DAMPER, PLATE 3
-
5BD5-24192-00-00 BRACKET, FUEL TANK 2BRACKET, FUEL TANK 2
-
6BD5-2419F-00-00 BRACKET, CANISTORBRACKET, CANISTOR
-
790480-18017-00 GROMMETGROMMET
-
890387-06266-00 COLLARCOLLAR
-
995022-06035-00 BOLT, FLANGEBOLT, FLANGE
-
10BD5-24186-00-00 WASHER, SPECIALWASHER, SPECIAL
-
11BD5-24192-10-00 BRACKET, FUEL TANK 2BRACKET, FUEL TANK 2
-
12BD5-2419F-00-00 BRACKET, CANISTORBRACKET, CANISTOR
-
1390480-18017-00 GROMMETGROMMET
-
1490387-06266-00 COLLARCOLLAR
-
1595022-06035-00 BOLT, FLANGEBOLT, FLANGE
-
16BD5-24186-00-00 WASHER, SPECIALWASHER, SPECIAL
-
1790387-06339-00 COLLARCOLLAR
-
1890110-06265-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1990201-06036-00 WASHER, PLATEWASHER, PLATE
-
2090105-06169-00 BOLT, FLANGEBOLT, FLANGE
-
21BD5-2412F-00-00 BRACKET, SEATBRACKET, SEAT
-
22BD5-24183-00-00 ...DAMPER, LOCATING 3...DAMPER, LOCATING 3
-
2390387-06342-00 ...COLLAR...COLLAR
-
24BD5-2414N-00-00 ...DAMPER, PLATE 4...DAMPER, PLATE 4
-
2595812-06090-00 BOLT, FLANGEBOLT, FLANGE
-
2695702-06500-00 NUT, FLANGENUT, FLANGE
-
2790110-06172-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2839P-24602-00-00 CAP ASSYCAP ASSY
-
2990110-05112-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3091312-05010-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
31BD5-13907-00-00 FUEL PUMP COMP.FUEL PUMP COMP.
-
32BD5-24491-00-00 BRACKET, FUEL PUMPBRACKET, FUEL PUMP
-
331RC-24486-00-00 O-RINGO-RING
-
3491312-05010-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
35BD5-13971-00-00 PIPE, FUEL 1PIPE, FUEL 1
-
3690480-01141-00 GROMMETGROMMET
-
3790179-05523-00 NUTNUT
-
38BD5-24129-00-00 COVER, SIDE 1COVER, SIDE 1
-
3990269-09006-00 RIVETRIVET
-
4090111-05002-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
4190269-07007-00 RIVETRIVET
-
4290338-06018-00 PLUGPLUG
-
435PS-28372-00-00 DAMPERDAMPER
-
4413S-28415-00-00 DAMPER 1DAMPER 1
-
45BD5-24139-00-00 COVER, SIDE 2COVER, SIDE 2
-
4690269-09006-00 RIVETRIVET
-
4790111-05002-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
4890269-07007-00 RIVETRIVET
-
4990338-06018-00 PLUGPLUG
-
505PS-28372-00-00 DAMPERDAMPER
-
5113S-28415-00-00 DAMPER 1DAMPER 1
-
522CR-24170-00-00 CANISTER ASSYCANISTER ASSY
-
53BD5-24312-10-00 PIPE 2PIPE 2
-
54BD5-24313-10-00 PIPE 3PIPE 3
-
5590467-090A2-00 CLIPCLIP
-
5690467-09026-00 CLIPCLIP
-
575JJ-82131-00-00 BAND, BATTERYBAND, BATTERY
-
58BD5-24321-00-00 PIPE 10PIPE 10
-
5990467-090A2-00 CLIPCLIP
-
6090464-09M31-00 CLAMPCLAMP
-
6190464-10015-00 CLAMPCLAMP
