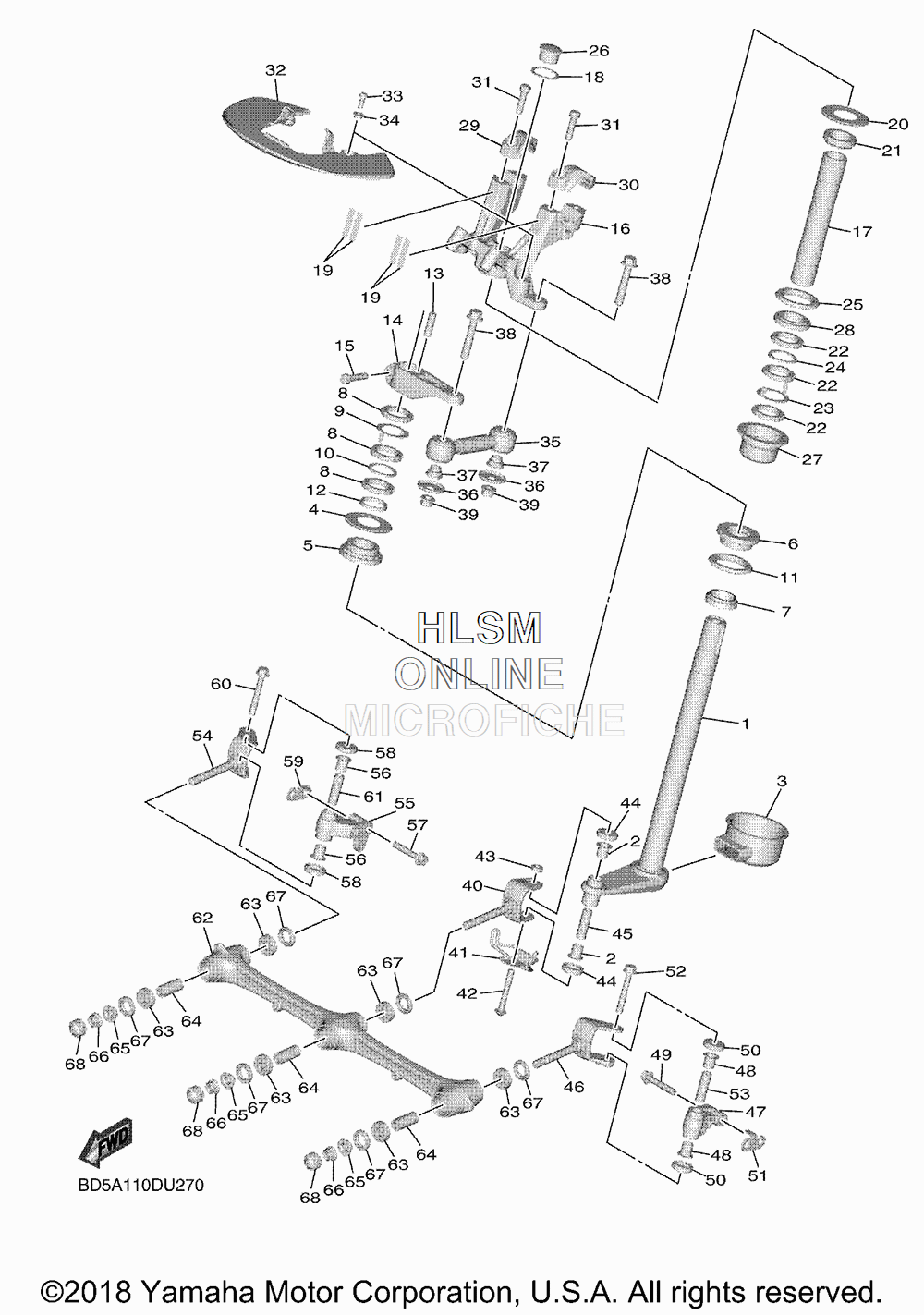

STEERING - 2 для Yamaha NIKIN - 2019 года выпуска
-
№АртикулНазвание
-
1BD5-23811-00-00 COLUMN, STEERINGCOLUMN, STEERING
-
2BD5-23488-00-00 SPACERSPACER
-
3BD5-23478-00-00 CAPCAP
-
44XV-23415-01-00 COVER, BALL RACE 1COVER, BALL RACE 1
-
593399-99932-00 BEARINGBEARING
-
6BD5-23873-00-00 BEARING, STEERING UPPERBEARING, STEERING UPPER
-
7BD5-23875-00-00 BEARING, STEERING LOWERBEARING, STEERING LOWER
-
890179-30006-00 NUTNUT
-
94XV-23418-00-00 WASHER, SPECIALWASHER, SPECIAL
-
1090202-30235-00 WASHER, PLATEWASHER, PLATE
-
113FV-23462-00-00 SEAL, STEERINGSEAL, STEERING
-
1290560-30234-00 SPACERSPACER
-
13BD5-2381E-00-00 SHAFTSHAFT
-
14BD5-2384F-00-00 ARM, CONTROL 2ARM, CONTROL 2
-
1591312-08035-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
16BD5-2384E-00-00 ARM, CONTROL 1ARM, CONTROL 1
-
17BD5-2381L-00-00 SHAFT 2SHAFT 2
-
1893440-31187-00 CIRCLIPCIRCLIP
-
193P6-28228-00-00 SEAL 2SEAL 2
-
204XV-23415-01-00 COVER, BALL RACE 1COVER, BALL RACE 1
-
21BD5-23875-00-00 BEARING, STEERING LOWERBEARING, STEERING LOWER
-
2290179-30006-00 NUTNUT
-
234XV-23418-00-00 WASHER, SPECIALWASHER, SPECIAL
-
2490202-30235-00 WASHER, PLATEWASHER, PLATE
-
253FV-23462-00-00 SEAL, STEERINGSEAL, STEERING
-
2690338-24112-00 PLUGPLUG
-
27BD5-23742-00-00 CAP 2CAP 2
-
28BD5-23448-00-00 SPACERSPACER
-
291RC-23441-01-00 HOLDER, HANDLE UPPERHOLDER, HANDLE UPPER
-
301RC-2344A-01-00 HOLDER, HANDLE UPPER 1HOLDER, HANDLE UPPER 1
-
3191314-08030-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
32BD5-26145-00-00 COVER, HANDLE UPPER 2COVER, HANDLE UPPER 2
-
3392017-06016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
3490560-06244-00 SPACERSPACER
-
35BD5-23850-00-00 TIE ROD ASSYTIE ROD ASSY
-
36BD5-23818-00-00 COVER, STEERINGCOVER, STEERING
-
37BD5-238B2-00-00 SPACERSPACER
-
3895812-10055-00 BOLT, FLANGEBOLT, FLANGE
-
3995602-10200-00 NUT, S/L FLANGENUT, S/L FLANGE
-
40BD5-23832-00-00 JOINT 3JOINT 3
-
41BD5-23389-00-00 GUIDE, CABLEGUIDE, CABLE
-
4290109-08258-00 BOLTBOLT
-
4390170-08158-00 NUTNUT
-
44BD5-23383-00-00 COVER, DUST SEAL 1COVER, DUST SEAL 1
-
4590387-08113-00 COLLARCOLLAR
-
46BD5-23832-10-00 JOINT 3JOINT 3
-
47BD5-2382E-00-00 ARM, FRONT 1ARM, FRONT 1
-
48BD5-23488-00-00 SPACERSPACER
-
4995817-08045-00 BOLT, FLANGEBOLT, FLANGE
-
50BD5-23383-00-00 COVER, DUST SEAL 1COVER, DUST SEAL 1
-
51BD5-22127-00-00 SHIM (OPT)SHIM (OPT)
-
51BD5-22127-10-00 SHIM (OPT)SHIM (OPT)
-
51BD5-22127-20-00 SHIM (OPT)SHIM (OPT)
-
5295817-08055-00 BOLT, FLANGEBOLT, FLANGE
-
5390387-08113-00 COLLARCOLLAR
-
54BD5-23832-20-00 JOINT 3JOINT 3
-
55BD5-2382E-10-00 ARM, FRONT 1ARM, FRONT 1
-
56BD5-23488-00-00 SPACERSPACER
-
5795817-08045-00 BOLT, FLANGEBOLT, FLANGE
-
58BD5-23383-00-00 COVER, DUST SEAL 1COVER, DUST SEAL 1
-
59BD5-22127-00-00 SHIM (OPT)SHIM (OPT)
-
59BD5-22127-10-00 SHIM (OPT)SHIM (OPT)
-
59BD5-22127-20-00 SHIM (OPT)SHIM (OPT)
-
6095817-08055-00 BOLT, FLANGEBOLT, FLANGE
-
6190387-08113-00 COLLARCOLLAR
-
62BD5-23831-00-P1 ROD, TIE (MT2 - MAT TITAN 2)ROD, TIE (MT2 - MAT TITAN 2)
-
6393306-00013-00 BEARINGBEARING
-
6490387-10118-00 COLLARCOLLAR
-
6590387-10117-00 COLLARCOLLAR
-
6695602-10200-00 NUT, S/L FLANGENUT, S/L FLANGE
-
6793102-16453-00 OIL SEALOIL SEAL
-
685YU-2143A-00-00 CAPCAP
