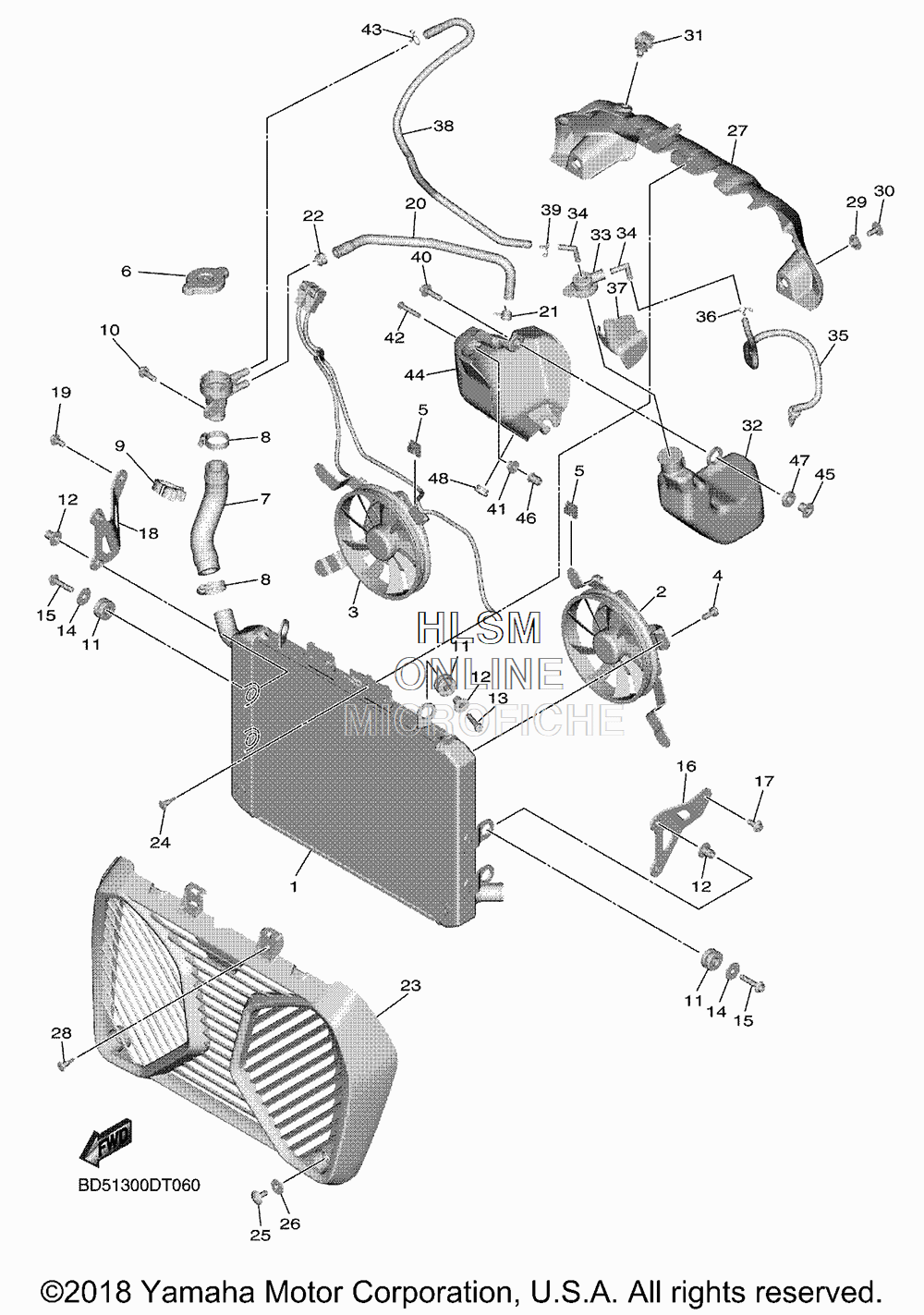

RADIATOR для Yamaha NIKIN - 2019 года выпуска
-
№АртикулНазвание
-
1BD5-12461-00-00 RADIATOR COMPRADIATOR COMP
-
2BD5-12405-00-00 BLOWER ASSYBLOWER ASSY
-
3BD5-12405-10-00 BLOWER ASSYBLOWER ASSY
-
43D8-12675-00-00 BOLT, BLOWER HOLDINGBOLT, BLOWER HOLDING
-
51AA-12535-00-00 PLATEPLATE
-
622W-12462-00-00 CAP, RADIATORCAP, RADIATOR
-
7BD5-12589-00-00 HOSE 6HOSE 6
-
890450-32003-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
990464-23004-00 CLAMPCLAMP
-
1090110-06048-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1190480-15363-00 GROMMETGROMMET
-
1290387-06158-00 COLLARCOLLAR
-
1390110-06178-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1490201-06071-00 WASHER, PLATEWASHER, PLATE
-
1590110-06415-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
16BD5-2142K-00-00 BRACKET, RADIATORBRACKET, RADIATOR
-
1790110-06428-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
18BD5-2142L-00-00 BRACKET, RADIATOR 2BRACKET, RADIATOR 2
-
1990110-06428-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
20BD5-12576-00-00 HOSE 1HOSE 1
-
2190467-10039-00 CLIPCLIP
-
2290467-13083-00 CLIPCLIP
-
23BD5-2837N-00-00 GRILL, AIR INTAKE 1GRILL, AIR INTAKE 1
-
2490269-06001-00 RIVETRIVET
-
2590111-06161-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
2690387-06066-00 COLLARCOLLAR
-
27BD5-12467-00-00 COVER, RADIATORCOVER, RADIATOR
-
2890269-06001-00 RIVETRIVET
-
2990387-06066-00 COLLARCOLLAR
-
3090111-06151-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
3190464-12018-00 CLAMPCLAMP
-
321RC-21871-00-00 TANK, RECOVERYTANK, RECOVERY
-
331RC-21875-00-00 CAPCAP
-
341RC-21828-00-00 ELBOWELBOW
-
351RC-21826-00-00 PIPE, BREATHERPIPE, BREATHER
-
3690467-08075-00 CLIPCLIP
-
371RC-22825-00-00 PROTECTOR 1PROTECTOR 1
-
38BD5-21816-00-00 PIPE 1PIPE 1
-
3990467-08017-00 CLIPCLIP
-
4090110-06233-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
411RC-21748-00-00 COLLARCOLLAR
-
4292012-05030-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
4390467-10041-00 CLIPCLIP
-
441RC-2172W-00-00 COVERCOVER
-
4590387-06285-00 COLLARCOLLAR
-
4690179-05523-00 NUTNUT
-
471RC-21749-00-00 COLLARCOLLAR
-
4890480-13203-00 GROMMETGROMMET
