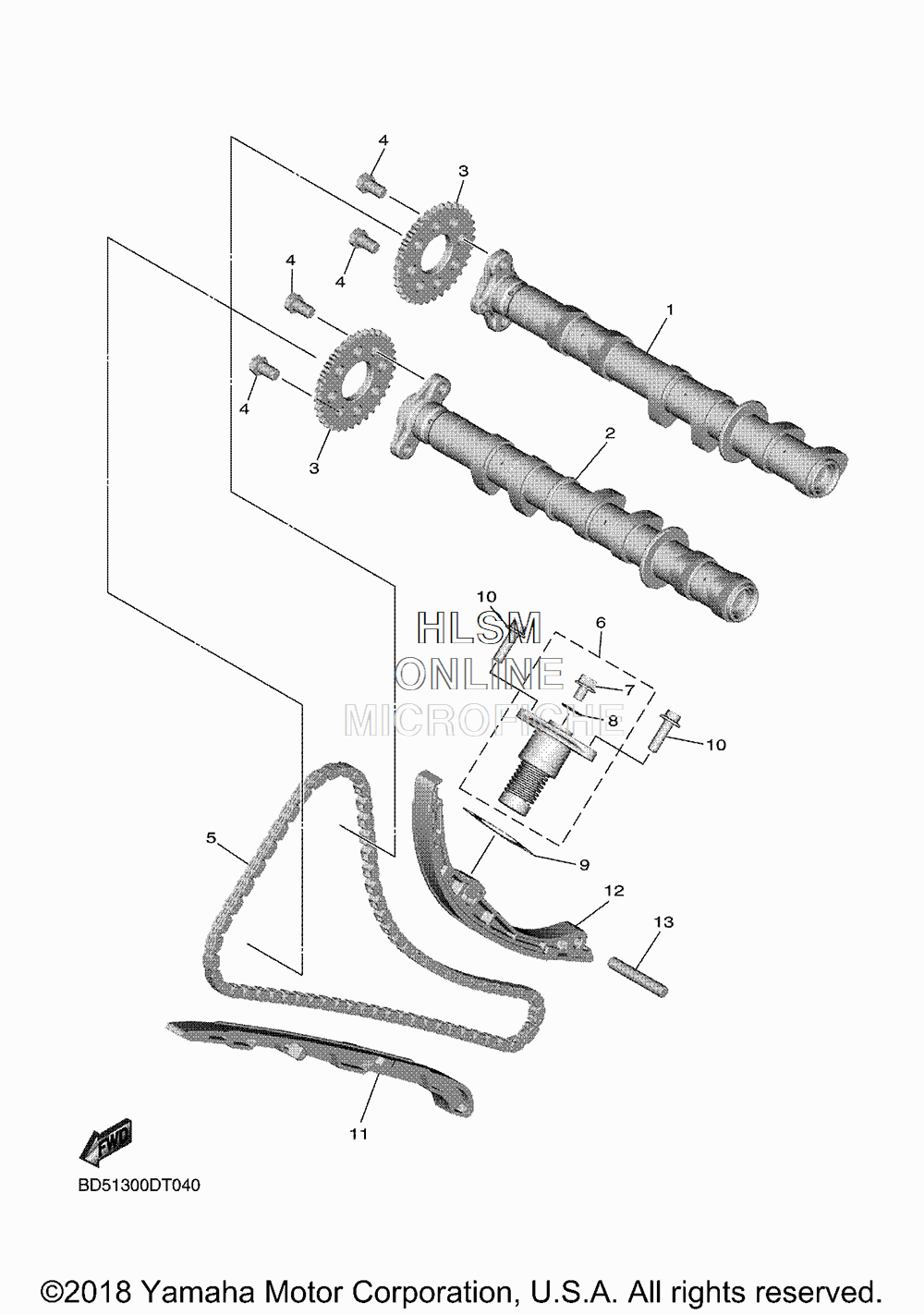

CAMSHAFT W/ CHAIN для Yamaha NIKIN - 2019 года выпуска
-
№АртикулНазвание
-
11RC-12170-00-00 CAMSHAFT ASSY 1CAMSHAFT ASSY 1
-
21RC-12180-00-00 CAMSHAFT ASSY 2CAMSHAFT ASSY 2
-
320S-12176-00-00 SPROCKET, CAM CHAINSPROCKET, CAM CHAIN
-
490105-07006-00 BOLT, FLANGEBOLT, FLANGE
-
594591-57128-00 CHAIN (98XRH2010-128M)CHAIN (98XRH2010-128M)
-
6B90-12210-00-00 TENSIONER ASSY, CAM CHAINTENSIONER ASSY, CAM CHAIN
-
75EL-12228-00-00 ...BOLT...BOLT
-
85SL-12214-00-00 ...GASKET...GASKET
-
91WS-12213-00-00 GASKET, TENSIONER CASEGASKET, TENSIONER CASE
-
1090110-06395-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
111RC-12251-00-00 DAMPER, CHAIN 1DAMPER, CHAIN 1
-
121RC-12250-01-00 CHAIN DAMPER ASSYCHAIN DAMPER ASSY
-
1393607-44002-00 PIN, DOWELPIN, DOWEL
