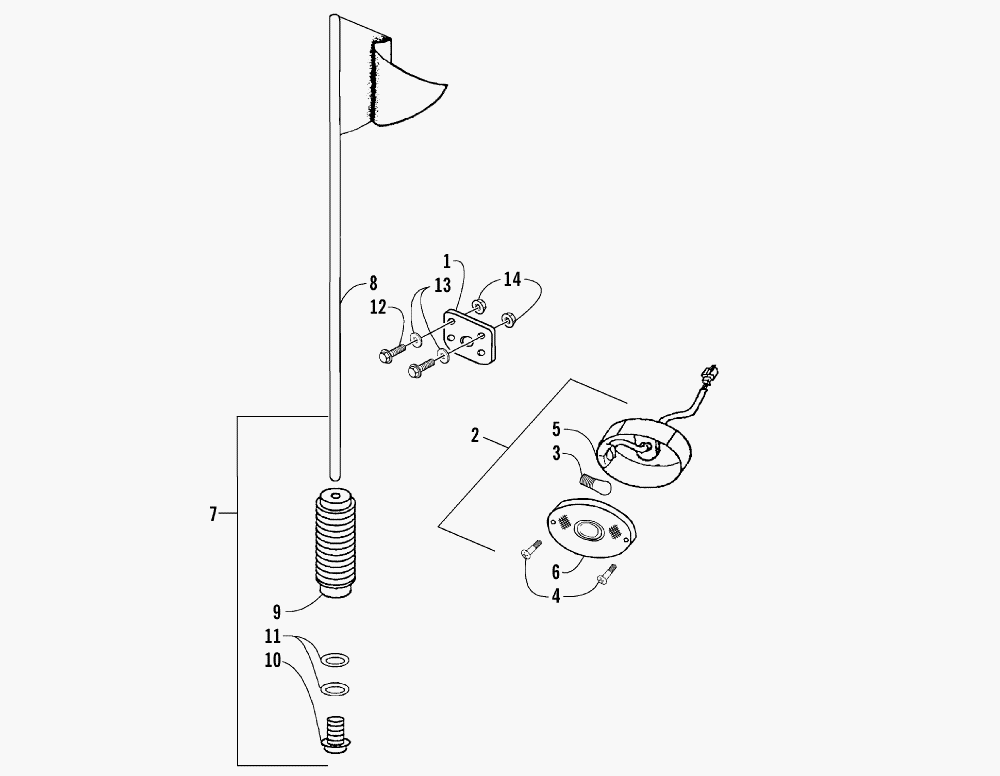

BRAKELIGHT AND FLAG ASSEMBLIES для Arctic Cat 90 Y-12 YOUTH - UTILITY (RED) [A2005H4B2BUSR] - 2005 года выпуска
-
№АртикулНазвание
-
13301-213 BRACKET, BRAKELIGHTBRACKET, BRAKELIGHT
-
23301-148 BRAKELIGHT ASSEMBLY (INC. 3-6)BRAKELIGHT ASSEMBLY (INC. 3-6)
-
33301-150 ...BULB, BRAKELIGHT...BULB, BRAKELIGHT
-
43301-314 ...SCREW, MACHINE...SCREW, MACHINE
-
53301-453 ...BASE, BRAKELIGHT...BASE, BRAKELIGHT
-
63301-452 ...LENS, BRAKELIGHT...LENS, BRAKELIGHT
-
73301-274 FLAG/SPRING ASSEMBLY (INC. 8-11)FLAG/SPRING ASSEMBLY (INC. 8-11)
-
83301-464 ...FLAG...FLAG
-
93301-273 ...SPRING, FLAG...SPRING, FLAG
-
103301-490 ...SCREW, CAP...SCREW, CAP
-
113301-472 ...WASHER...WASHER
-
123301-386 SCREW, CAPSCREW, CAP
-
133301-338 WASHERWASHER
-
143301-327 NUT, FLANGENUT, FLANGE
