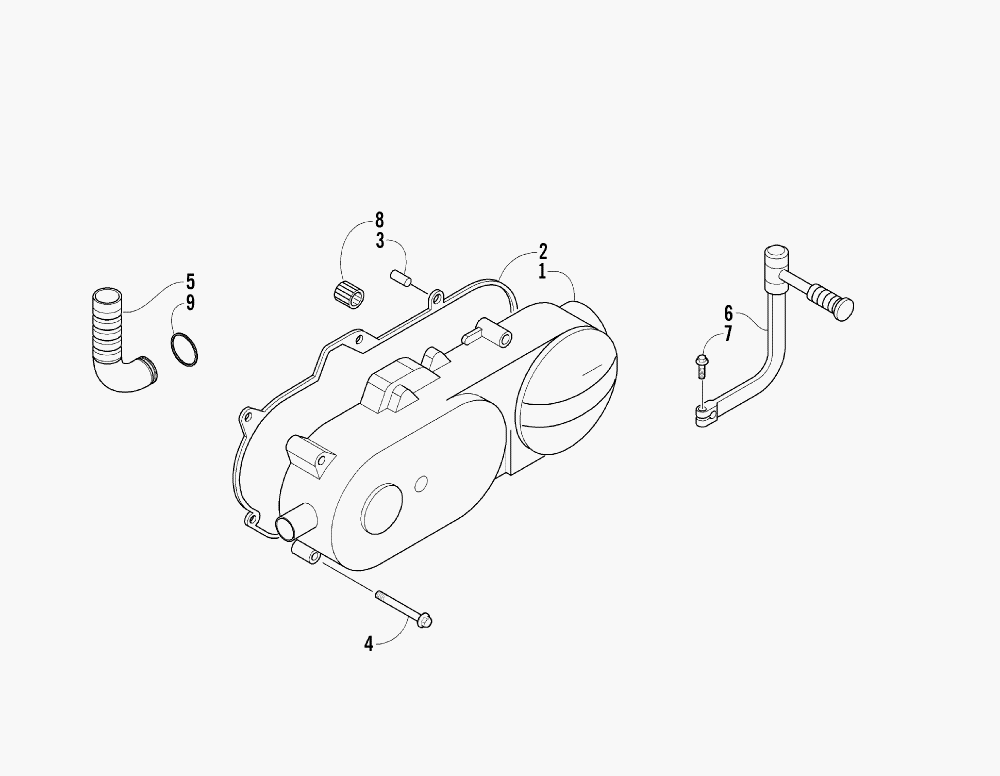

LEFT CRANKCASE COVER ASSEMBLY для Arctic Cat 90 Y-12 YOUTH - UTILITY (RED) [A2005H4B2BUSR] - 2005 года выпуска
-
№АртикулНазвание
-
13301-793 COVER, CRANKCASE - LEFTCOVER, CRANKCASE - LEFT
-
23301-794 GASKET, LEFT CRANKCASE COVERGASKET, LEFT CRANKCASE COVER
-
33301-775 PIN, DOWELPIN, DOWEL
-
43301-796 SCREW, CAPSCREW, CAP
-
53301-797 DUCT, LEFT CRANKCASE COVERDUCT, LEFT CRANKCASE COVER
-
63301-798 ARM, KICK STARTERARM, KICK STARTER
-
73301-391 SCREW, CAPSCREW, CAP
-
83301-418 BEARINGBEARING
-
93301-799 CLIPCLIP
