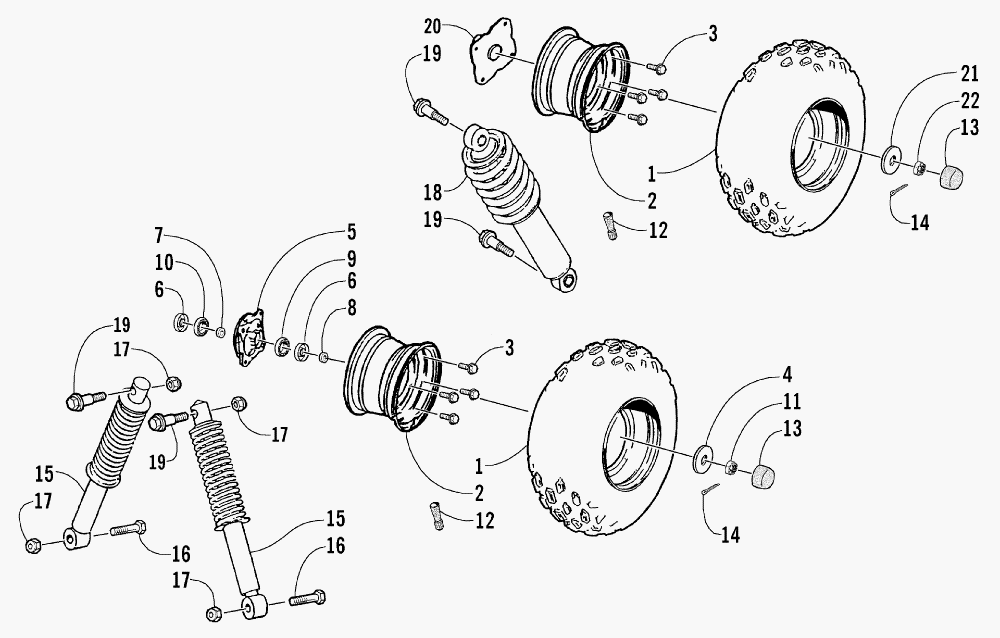

WHEEL- TIRE- AND SUSPENSION ASSEMBLY для Arctic Cat 90 Y-12 YOUTH - UTILITY (RED) [A2005H4B2BUSR] - 2005 года выпуска
-
№АртикулНазвание
-
13301-177 TIRETIRE
-
23301-175 WHEELWHEEL
-
33301-399 SCREW, CAPSCREW, CAP
-
43301-347 WASHERWASHER
-
53301-176 DRUM, BRAKE - FRONTDRUM, BRAKE - FRONT
-
63301-439 SEAL, OILSEAL, OIL
-
73301-195 SPACERSPACER
-
83301-188 COLLAR - FRONTCOLLAR - FRONT
-
93301-408 BEARING, RADIAL BALLBEARING, RADIAL BALL
-
103301-411 BEARING, RADIAL BALLBEARING, RADIAL BALL
-
113301-333 NUT, SLOTTEDNUT, SLOTTED
-
123301-171 STEM, VALVESTEM, VALVE
-
133301-181 COVER, RUBBERCOVER, RUBBER
-
143301-363 PIN, COTTERPIN, COTTER
-
153301-223 SHOCK, FRONTSHOCK, FRONT
-
163301-308 SCREW, CAPSCREW, CAP
-
173301-283 NUT, NYLONNUT, NYLON
-
183301-229 SHOCK, REARSHOCK, REAR
-
193301-401 SCREW, CAPSCREW, CAP
-
203301-160 CONNECTOR, SHAFTCONNECTOR, SHAFT
-
213301-350 WASHERWASHER
-
223301-335 NUT, SLOTTEDNUT, SLOTTED
