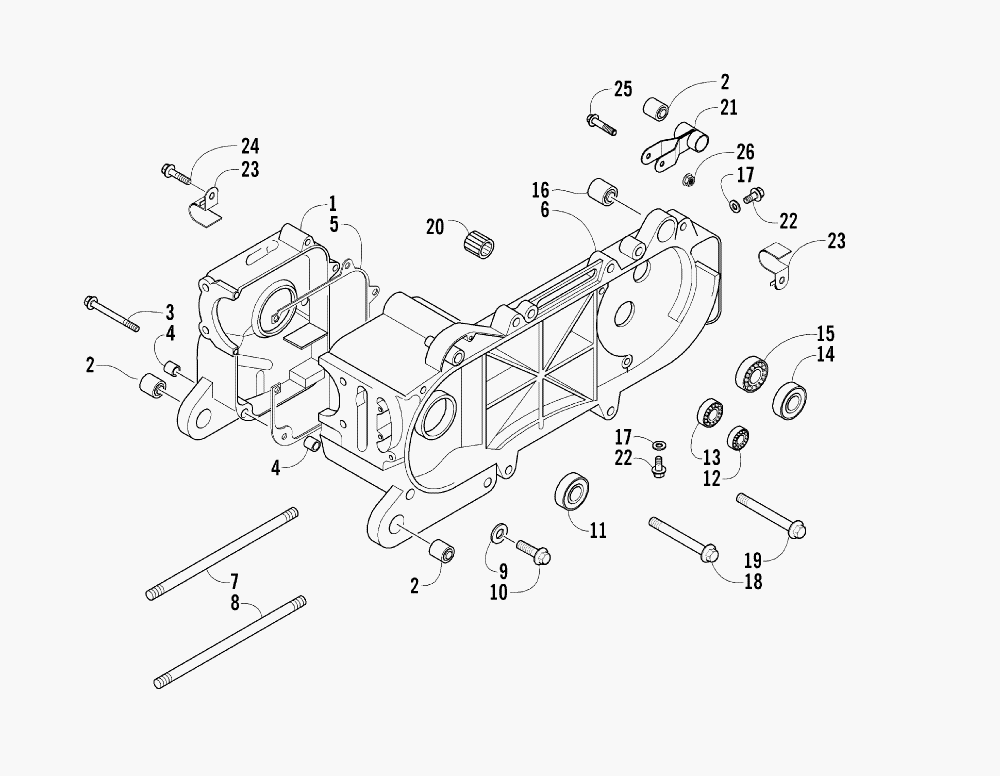

CRANKCASE ASSEMBLY для Arctic Cat 90 Y-12 YOUTH - UTILITY (RED) [A2005H4B2BUSR] - 2005 года выпуска
-
№АртикулНазвание
-
13301-772 CRANKCASE - RIGHTCRANKCASE - RIGHT
-
23301-763 BUSHING, RUBBERBUSHING, RUBBER
-
33301-774 SCREW, CAPSCREW, CAP
-
43301-775 PIN, DOWELPIN, DOWEL
-
53301-776 GASKET, CRANKCASEGASKET, CRANKCASE
-
63301-777 CRANKCASE - LEFTCRANKCASE - LEFT
-
73301-778 BOLT, STUDBOLT, STUD
-
83301-779 BOLT, STUDBOLT, STUD
-
93301-780 WASHERWASHER
-
103301-781 SCREW, CAPSCREW, CAP
-
113301-782 SEAL, OILSEAL, OIL
-
123301-783 BEARINGBEARING
-
133301-414 BEARINGBEARING
-
143301-784 SEAL, OILSEAL, OIL
-
153301-785 BEARINGBEARING
-
163301-786 BUSHING, RUBBERBUSHING, RUBBER
-
173301-760 WASHERWASHER
-
183301-839 SCREW, CAPSCREW, CAP
-
193301-789 SCREW, CAPSCREW, CAP
-
203301-418 BEARINGBEARING
-
213301-790 BRACKET, CRANKCASE - LEFTBRACKET, CRANKCASE - LEFT
-
223301-791 SCREW, CAPSCREW, CAP
-
233301-013 CLAMPCLAMP
-
243301-877 SCREW, CAPSCREW, CAP
-
253301-788 SCREW, CAPSCREW, CAP
-
263301-330 NUT, LOCKNUT, LOCK
