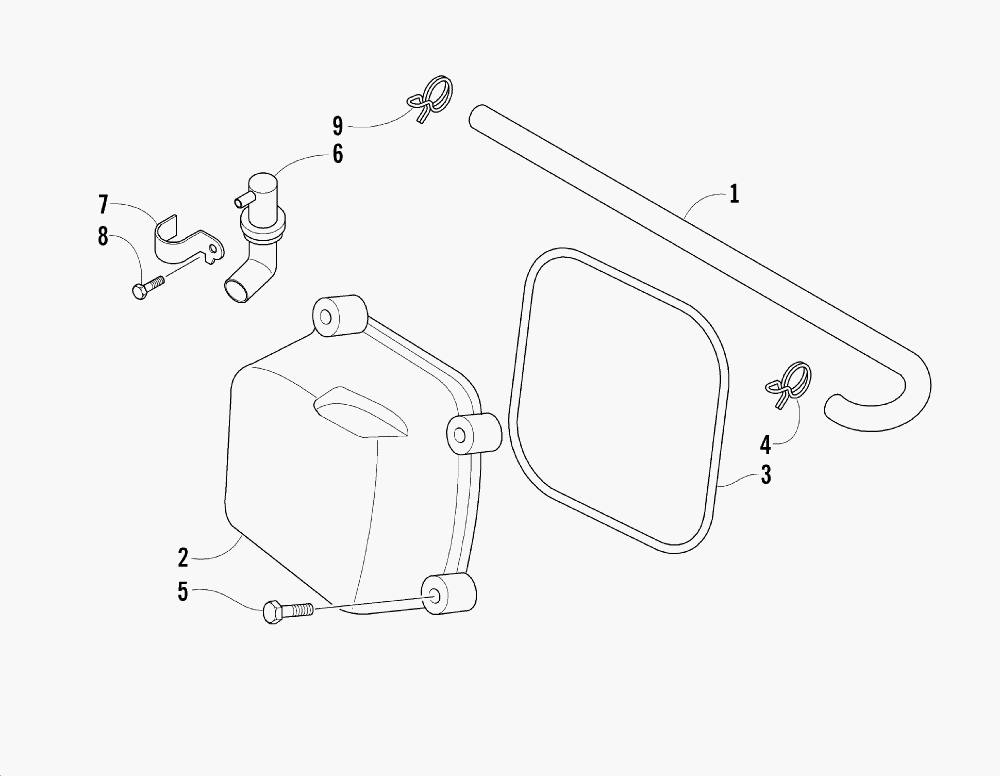

CYLINDER HEAD COVER ASSEMBLY для Arctic Cat 90 Y-12 YOUTH - UTILITY (RED) [A2005H4B2BUSR] - 2005 года выпуска
-
№АртикулНазвание
-
-3301-890 ENGINE,COMPLETE-HC 90 4-STROKEENGINE,COMPLETE-HC 90 4-STROKE
-
13301-619 TUBE, BREATHERTUBE, BREATHER
-
23301-620 COVER, CYLINDER HEADCOVER, CYLINDER HEAD
-
33301-621 GASKET, CYLINDER HEAD COVERGASKET, CYLINDER HEAD COVER
-
43301-374 CLAMP, TUBECLAMP, TUBE
-
53301-622 SCREW, CAPSCREW, CAP
-
63301-623 TANK, CATCHTANK, CATCH
-
73301-624 CLAMPCLAMP
-
83301-792 SCREW, CAPSCREW, CAP
-
93301-875 CLAMP, TUBECLAMP, TUBE
