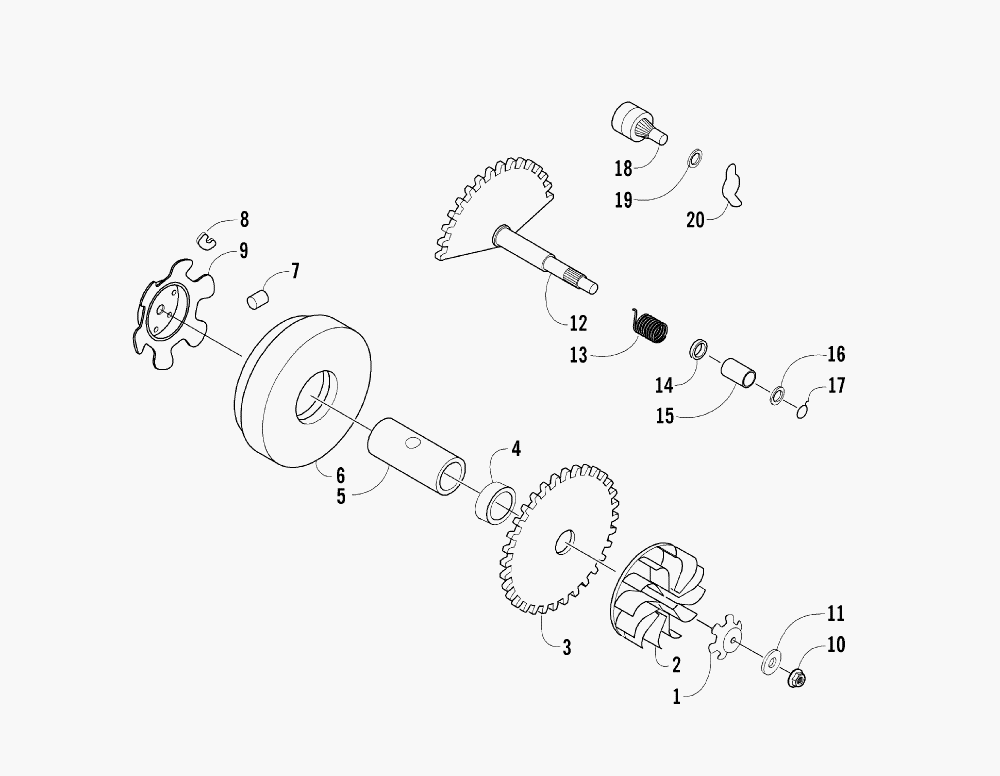

DRIVE CLUTCH ASSEMBLY для Arctic Cat 90 Y-12 YOUTH - UTILITY (RED) [A2005H4B2BUSR] - 2005 года выпуска
-
№АртикулНазвание
-
13301-718 RATCHET, KICK STARTERRATCHET, KICK STARTER
-
23301-719 FAN, COOLINGFAN, COOLING
-
33301-720 FACE, DRIVEFACE, DRIVE
-
43301-876 BUSHING, CLUTCHBUSHING, CLUTCH
-
53301-721 BUSHINGBUSHING
-
63301-722 FACE, MOVABLE DRIVEFACE, MOVABLE DRIVE
-
73301-723 ROLLER, WEIGHTROLLER, WEIGHT
-
83301-724 SLIDE, CAM PLATESLIDE, CAM PLATE
-
93301-725 PLATE, CAMPLATE, CAM
-
103301-332 NUT, LOCKNUT, LOCK
-
113301-726 WASHERWASHER
-
123301-727 SPINDLE, KICK STARTERSPINDLE, KICK STARTER
-
133301-728 SPRING, KICK STARTERSPRING, KICK STARTER
-
143301-729 COLLAR, BOSSCOLLAR, BOSS
-
153301-730 BUSHING, STARTER SPINDLEBUSHING, STARTER SPINDLE
-
163301-731 WASHERWASHER
-
173301-732 CIRCLIPCIRCLIP
-
183301-733 PINION, KICK STARTER - ASSEMBLYPINION, KICK STARTER - ASSEMBLY
-
193301-734 WASHERWASHER
-
203301-735 CLIP, SPRING - KICK STARTER PINIONCLIP, SPRING - KICK STARTER PINION
