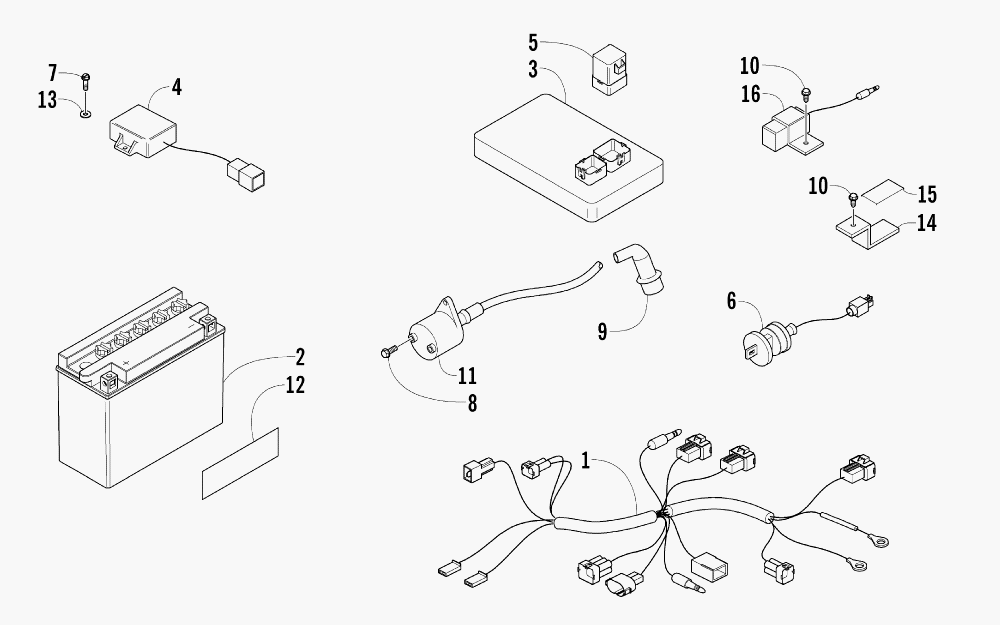

ELECTRICAL для Arctic Cat 90 Y-12 YOUTH - UTILITY (RED) [A2005H4B2BUSR] - 2005 года выпуска
-
№АртикулНазвание
-
13301-865 HARNESS, MAINHARNESS, MAIN
-
23301-866 BATTERYBATTERY
-
33301-867 CDICDI
-
43301-146 REGULATOR, VOLTAGEREGULATOR, VOLTAGE
-
53301-868 RELAY, STARTERRELAY, STARTER
-
63301-151 SWITCH, IGNITIONSWITCH, IGNITION
-
73301-316 SCREW, MACHINESCREW, MACHINE
-
83301-384 SCREW, CAPSCREW, CAP
-
93301-869 CAP, SPARK PLUGCAP, SPARK PLUG
-
103301-386 SCREW, CAPSCREW, CAP
-
113301-871 COIL, IGNITIONCOIL, IGNITION
-
123301-463 DECAL, WARNING - BATTERYDECAL, WARNING - BATTERY
-
133301-360 WASHER, SPRINGWASHER, SPRING
-
143301-872 BRACKET, CDIBRACKET, CDI
-
153301-873 PAD, CDIPAD, CDI
-
163301-874 RESISTORRESISTOR
