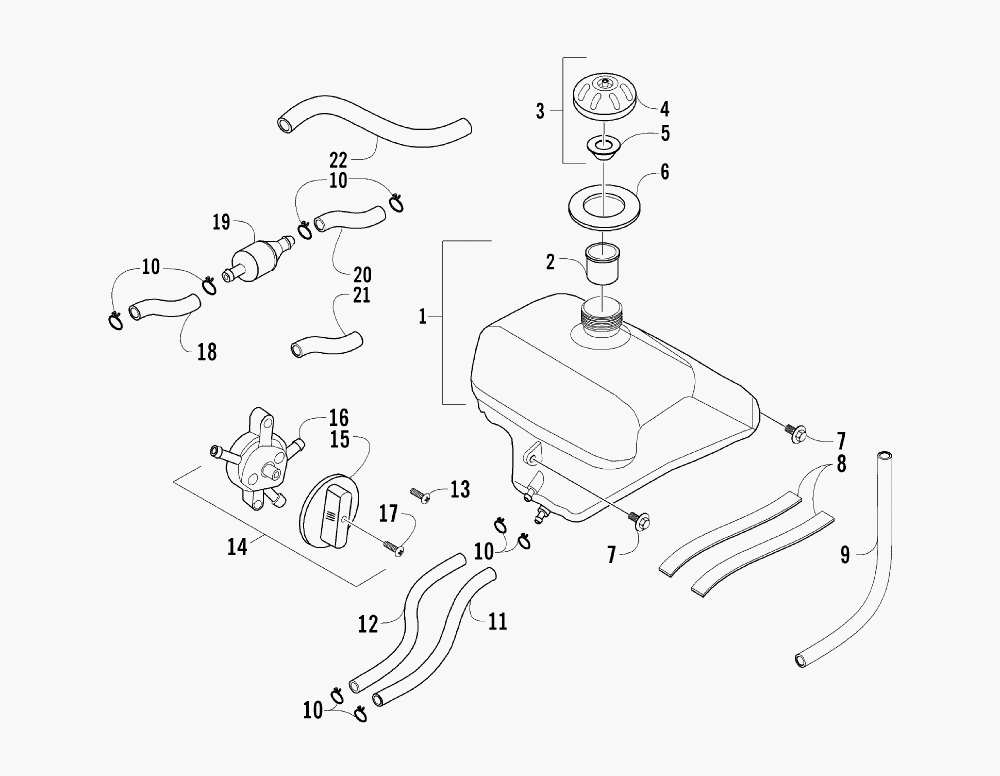

GAS TANK ASSEMBLY для Arctic Cat 90 Y-12 YOUTH - UTILITY (RED) [A2005H4B2BUSR] - 2005 года выпуска
-
№АртикулНазвание
-
13301-073 TANK, GAS (INC. 2)TANK, GAS (INC. 2)
-
23301-084 ...TUBE, GAS TANK...TUBE, GAS TANK
-
33301-078 TANK CAP ASSEMBLY (INC. 4-5)TANK CAP ASSEMBLY (INC. 4-5)
-
43301-079 ...CAP, TANK...CAP, TANK
-
53301-081 ...GASKET, CAP...GASKET, CAP
-
63301-489 GASKET, FRONT COVER - RUBBERGASKET, FRONT COVER - RUBBER
-
73301-306 SCREW, CAPSCREW, CAP
-
83301-076 PAD, FOAMPAD, FOAM
-
93301-482 COVER, TUBECOVER, TUBE
-
103301-374 CLIPCLIP
-
113301-370 TUBETUBE
-
123301-369 TUBETUBE
-
133301-317 SCREW, MACHINESCREW, MACHINE
-
143301-059 VALVE, GAS - ASSEMBLY (INC. 15-17)VALVE, GAS - ASSEMBLY (INC. 15-17)
-
153301-080 ...KNOB, GAS VALVE...KNOB, GAS VALVE
-
163301-491 ...VALVE, GAS...VALVE, GAS
-
173301-470 ...SCREW, MACHINE...SCREW, MACHINE
-
183301-859 TUBETUBE
-
193301-551 FILTER, GASFILTER, GAS
-
203301-858 TUBETUBE
-
213301-860 COVER, TUBECOVER, TUBE
-
223301-479 HOSE, BREATHERHOSE, BREATHER
