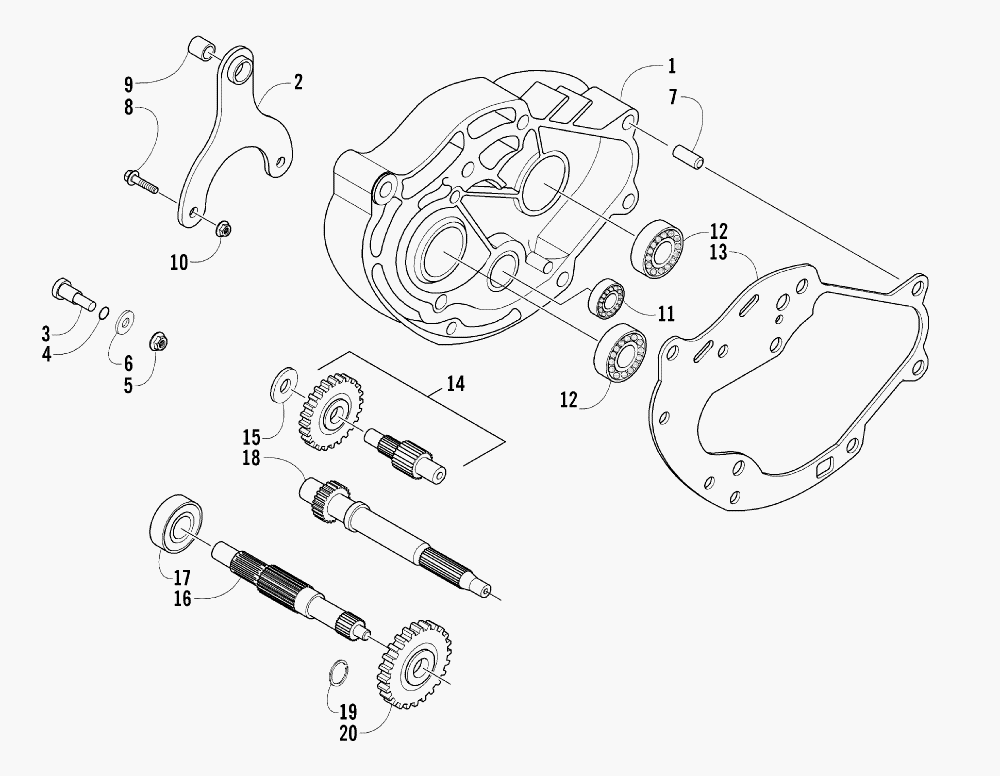

TRANSMISSION ASSEMBLY для Arctic Cat 90 Y-12 YOUTH - UTILITY (RED) [A2005H4B2BUSR] - 2005 года выпуска
-
№АртикулНазвание
-
13301-757 COVER, TRANSMISSIONCOVER, TRANSMISSION
-
23301-758 BRACKET, MOUNTING - RIGHTBRACKET, MOUNTING - RIGHT
-
33301-759 SHAFT, FIXEDSHAFT, FIXED
-
43301-296 O-RINGO-RING
-
53301-330 NUT, LOCKNUT, LOCK
-
63301-760 WASHERWASHER
-
73301-761 PIN, DOWELPIN, DOWEL
-
83301-762 SHAFT, FIXEDSHAFT, FIXED
-
93301-763 BUSHING, RUBBERBUSHING, RUBBER
-
103301-335 NUT, LOCKNUT, LOCK
-
113301-412 BEARINGBEARING
-
123301-414 BEARINGBEARING
-
133301-764 GASKET, TRANSMISSION COVERGASKET, TRANSMISSION COVER
-
143301-765 AXLE, MAINAXLE, MAIN
-
153301-766 WASHERWASHER
-
163301-769 SHAFT, FINALSHAFT, FINAL
-
173301-768 SEAL, OILSEAL, OIL
-
183301-767 DRIVESHAFTDRIVESHAFT
-
193301-770 CIRCLIPCIRCLIP
-
203301-771 GEAR, FINALGEAR, FINAL
