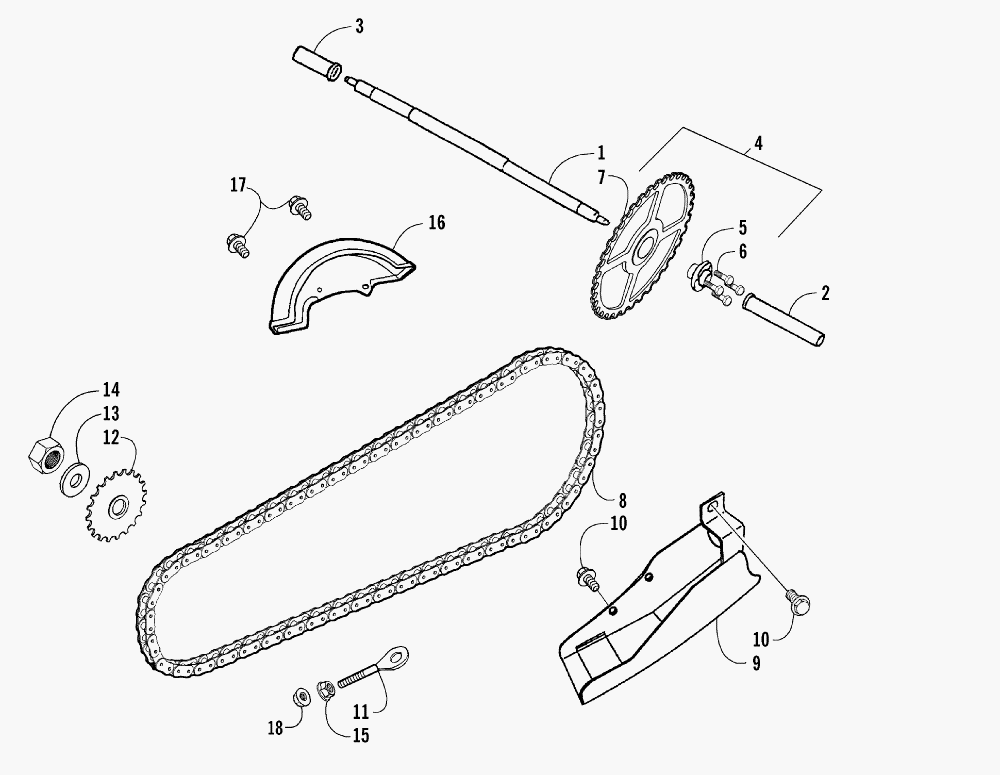

REAR DRIVE ASSEMBLY для Arctic Cat 90 Y-12 YOUTH - UTILITY (RED) [A2005H4B2BUSR] - 2005 года выпуска
-
№АртикулНазвание
-
13301-161 AXLE, REAR WHEELAXLE, REAR WHEEL
-
23301-173 COLLAR, SPACER - RIGHTCOLLAR, SPACER - RIGHT
-
33301-174 COLLAR, SPACER - LEFTCOLLAR, SPACER - LEFT
-
43301-163 REAR SPROCKET ASSEMBLY (INC. 5-7)REAR SPROCKET ASSEMBLY (INC. 5-7)
-
53301-165 ...FLANGE, FINAL DRIVE...FLANGE, FINAL DRIVE
-
63301-399 ...SCREW, CAP...SCREW, CAP
-
73301-159 ...SPROCKET, REAR...SPROCKET, REAR
-
83301-863 CHAIN, DRIVECHAIN, DRIVE
-
93301-155 GUARD, CHAINGUARD, CHAIN
-
103301-393 SCREW, CAPSCREW, CAP
-
113301-573 ADJUSTER, DRIVE CHAINADJUSTER, DRIVE CHAIN
-
123301-864 DRIVE SPROCKET ASSEMBLYDRIVE SPROCKET ASSEMBLY
-
133301-883 WASHERWASHER
-
143301-884 NUT, NYLONNUT, NYLON
-
153301-524 NUT, FLANGENUT, FLANGE
-
163301-885 GUARD, CHAIN - REARGUARD, CHAIN - REAR
-
173301-886 SCREW, CAPSCREW, CAP
-
183301-330 NUT, FLANGENUT, FLANGE
