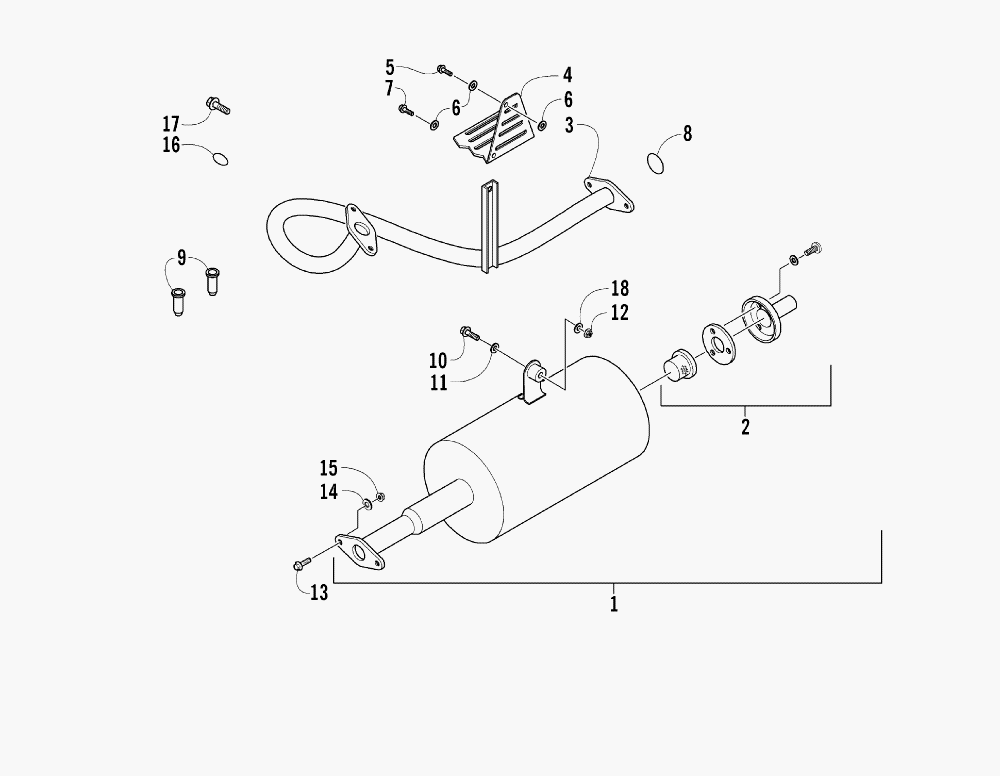

EXHAUST ASSEMBLY для Arctic Cat 90 Y-12 YOUTH - UTILITY (RED) [A2005H4B2BUSR] - 2005 года выпуска
-
№АртикулНазвание
-
13301-833 MUFFLER (INC. 2)MUFFLER (INC. 2)
-
23301-834 ...ARRESTER, SPARK...ARRESTER, SPARK
-
33301-832 PIPE, EXHAUSTPIPE, EXHAUST
-
43301-835 SHIELD, EXHAUST PIPESHIELD, EXHAUST PIPE
-
53301-836 SCREW, CAPSCREW, CAP
-
63301-087 GASKET, EXHAUST PIPE COVERGASKET, EXHAUST PIPE COVER
-
73301-837 SCREW, CAPSCREW, CAP
-
83301-086 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
93301-838 NUTNUT
-
103301-839 SCREW, CAPSCREW, CAP
-
113301-840 WASHERWASHER
-
123301-841 NUT, LOCKNUT, LOCK
-
133301-842 SCREW, CAPSCREW, CAP
-
143301-843 WASHERWASHER
-
153301-844 NUT, LOCKNUT, LOCK
-
163301-845 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
173301-846 SCREW, CAPSCREW, CAP
-
183301-361 WASHERWASHER
