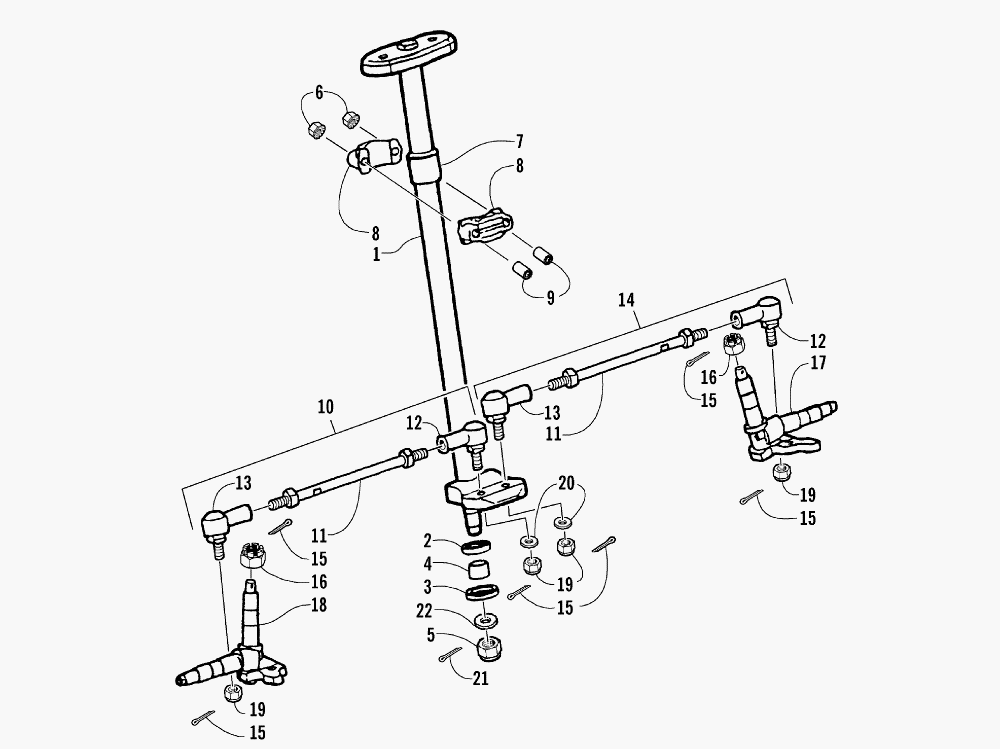

STEERING ASSEMBLY для Arctic Cat 90 Y-12 YOUTH - UTILITY (RED) [A2005H4B2BUSR] - 2005 года выпуска
-
№АртикулНазвание
-
13301-214 STEERING POST ASSEMBLYSTEERING POST ASSEMBLY
-
23301-436 SEAL, OILSEAL, OIL
-
33301-439 SEAL, OILSEAL, OIL
-
43301-195 SPACERSPACER
-
53301-284 NUT, NYLONNUT, NYLON
-
63301-330 NUT, FLANGENUT, FLANGE
-
73301-216 BUSHING, STEERING POSTBUSHING, STEERING POST
-
83301-215 HOLDER, STEERING POSTHOLDER, STEERING POST
-
93301-217 COLLAR, SPACERCOLLAR, SPACER
-
103301-577 TIE ROD ASSEMBLY - LEFT (INC. ONE NO. 11-13)TIE ROD ASSEMBLY - LEFT (INC. ONE NO. 11-13)
-
113301-295 ...TIE ROD...TIE ROD
-
123301-578 ...JOINT, BALL - LEFT THREAD...JOINT, BALL - LEFT THREAD
-
133301-579 ...JOINT, BALL - RIGHT THREAD...JOINT, BALL - RIGHT THREAD
-
143301-576 TIE ROD ASSEMBLY - RIGHT (INC. ONE NO. 11-13)TIE ROD ASSEMBLY - RIGHT (INC. ONE NO. 11-13)
-
153301-362 PIN, COTTERPIN, COTTER
-
163301-334 NUT, SLOTTEDNUT, SLOTTED
-
173301-193 KNUCKLE - RIGHTKNUCKLE - RIGHT
-
183301-191 KNUCKLE - LEFTKNUCKLE - LEFT
-
193301-283 NUT, NYLONNUT, NYLON
-
203301-474 WASHERWASHER
-
213301-363 PIN, COTTERPIN, COTTER
-
223301-349 WASHERWASHER
