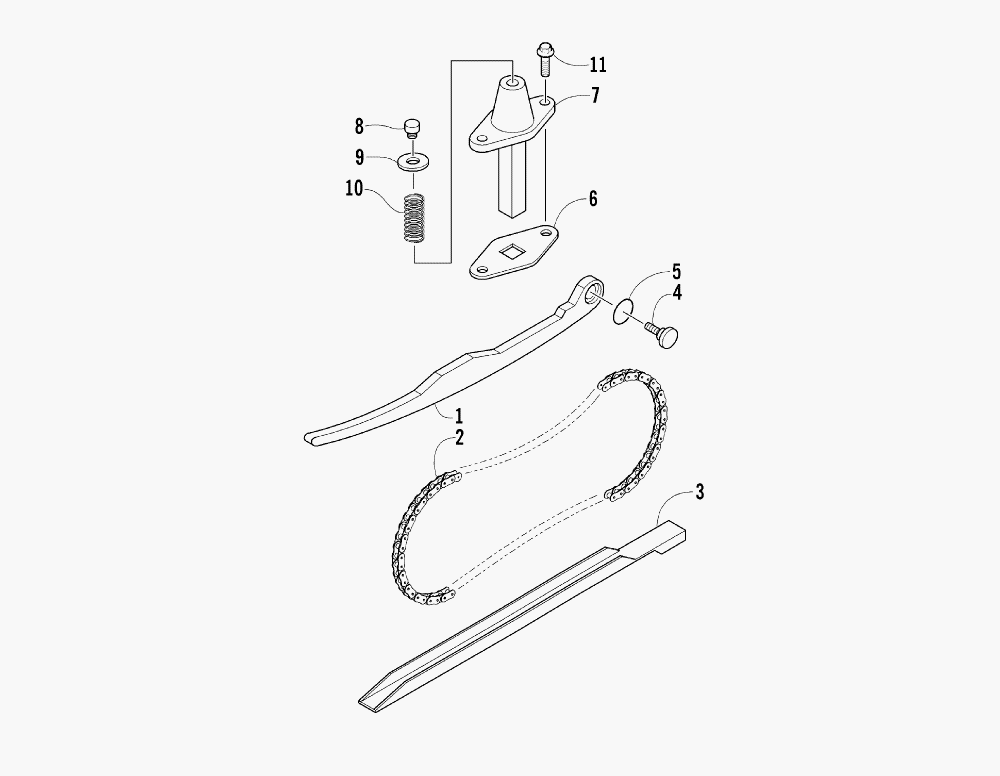

CAM CHAIN AND TENSIONER ASSEMBLY для Arctic Cat 90 Y-12 YOUTH - UTILITY (RED) [A2005H4B2BUSR] - 2005 года выпуска
-
№АртикулНазвание
-
13301-662 TENSIONER, CAM CHAINTENSIONER, CAM CHAIN
-
23301-661 CHAIN, CAMCHAIN, CAM
-
33301-663 GUIDE, CAM CHAINGUIDE, CAM CHAIN
-
43301-664 PIVOT, CAM CHAIN TENSIONERPIVOT, CAM CHAIN TENSIONER
-
53301-665 O-RINGO-RING
-
63301-666 GASKET, TENSIONER LIFTERGASKET, TENSIONER LIFTER
-
73301-667 LIFTER, TENSIONERLIFTER, TENSIONER
-
83301-668 PLUG, ADJUSTERPLUG, ADJUSTER
-
93301-669 WASHERWASHER
-
103301-670 SPRING, ADJUSTER PLUGSPRING, ADJUSTER PLUG
-
113301-389 SCREW, CAPSCREW, CAP
