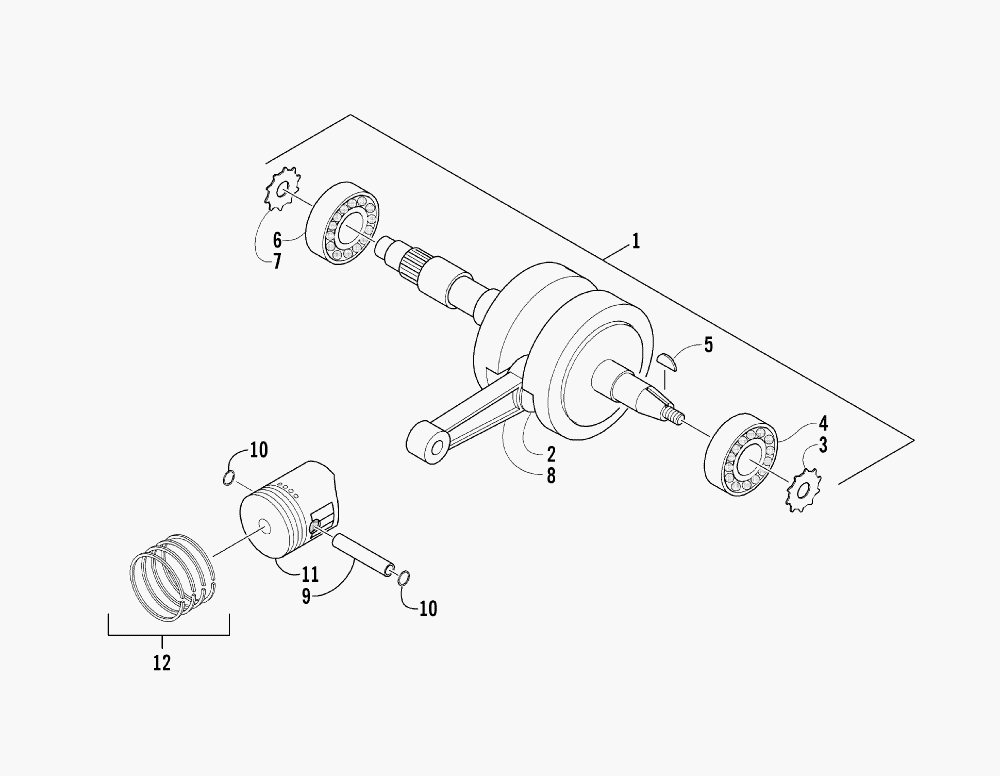

CRANKSHAFT ASSEMBLY для Arctic Cat 90 Y-12 YOUTH - UTILITY (RED) [A2005H4B2BUSR] - 2005 года выпуска
-
№АртикулНазвание
-
13301-675 CRANKSHAFT ASSEMBLY (INC. 2-8)CRANKSHAFT ASSEMBLY (INC. 2-8)
-
23301-676 ...BEARING...BEARING
-
33301-677 ...OIL PUMP DRIVE GEAR...OIL PUMP DRIVE GEAR
-
43301-678 ...BEARING...BEARING
-
53301-878 ...KEY...KEY
-
63301-679 ...BEARING...BEARING
-
73301-680 ...GEAR, TIMING...GEAR, TIMING
-
83301-887 ...ROD, CONNECTING...ROD, CONNECTING
-
93301-682 PIN, PISTONPIN, PISTON
-
103301-024 CLIP, PISTON PINCLIP, PISTON PIN
-
113301-681 PISTONPISTON
-
123301-683 RING, PISTON - SETRING, PISTON - SET
