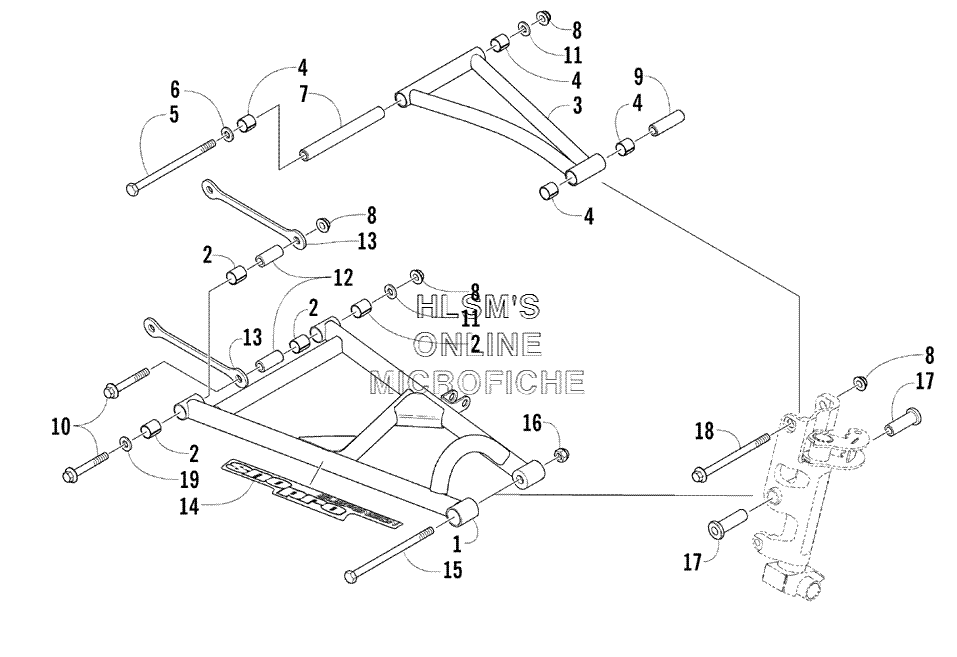

A-ARM ASSEMBLY для Arctic Cat AC 440 SNO PRO GREEN INTERNATIONAL - 2005 года выпуска
-
№АртикулНазвание
-
11703-546 A, ARM (LOWER/RIGHT) (INC. 2)A, ARM (LOWER/RIGHT) (INC. 2)
-
11703-547 A, ARM (LOWER/LEFT) (INC. 2)A, ARM (LOWER/LEFT) (INC. 2)
-
21603-895 BEARINGBEARING
-
31703-542 A, ARM (UPPER) (INC. 4)A, ARM (UPPER) (INC. 4)
-
40603-083 BEARINGBEARING
-
50623-952 SCREW, CAPSCREW, CAP
-
61623-415 WASHERWASHER
-
71603-563 AXLE, INNER ARM (UPPER)AXLE, INNER ARM (UPPER)
-
88047-486 NUT, LOCKNUT, LOCK
-
90603-864 TUBE, AXLETUBE, AXLE
-
101623-403 SCREW, CAPSCREW, CAP
-
110623-044 WASHERWASHER
-
122603-305 AXLE, INNER ARM (LOWER)AXLE, INNER ARM (LOWER)
-
132606-886 BRACE A, ARM (LOWER)BRACE A, ARM (LOWER)
-
146611-634 DECAL A, ARM (LOWER)DECAL A, ARM (LOWER)
-
151623-009 SCREW, CAPSCREW, CAP
-
168040-546 NUT, LOCKNUT, LOCK
-
171603-616 AXLE (POWDER METAL)AXLE (POWDER METAL)
-
188026-232 SCREW, CAPSCREW, CAP
-
198050-282 WASHER, FLATWASHER, FLAT
