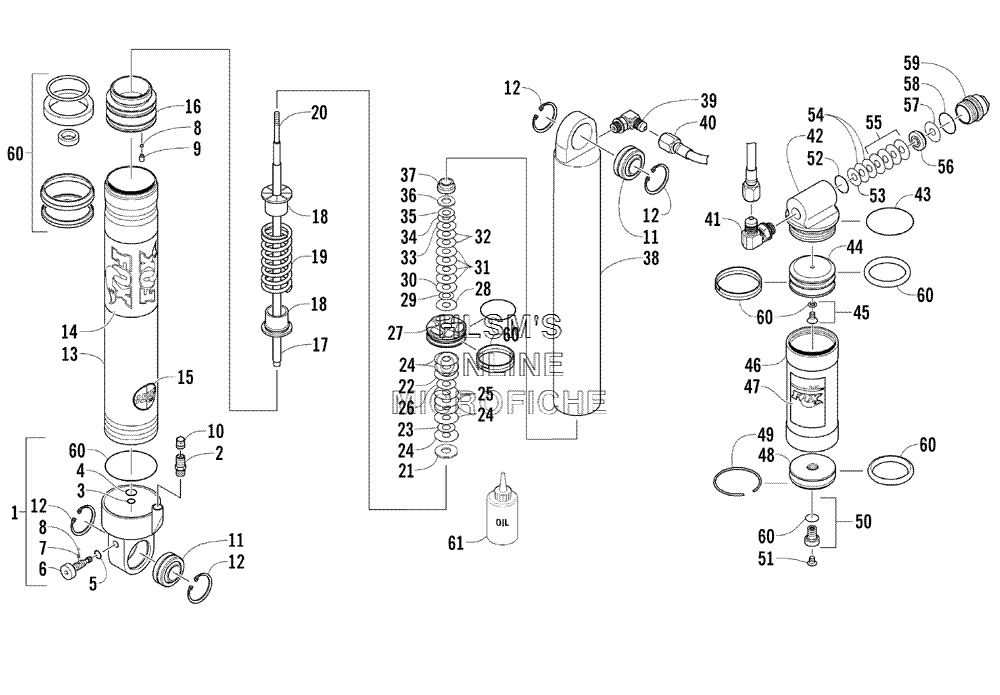

FRONT SUSPENSION SHOCK ABSORBER для Arctic Cat AC 440 SNO PRO GREEN INTERNATIONAL - 2005 года выпуска
-
№АртикулНазвание
-
-1703-790 SHOCK ABSORBER ASSEMBLY (RIGHT)SHOCK ABSORBER ASSEMBLY (RIGHT)
-
-1703-791 SHOCK ABSORBER ASSEMBLY (LEFT)SHOCK ABSORBER ASSEMBLY (LEFT)
-
12603-512 CAP, AIR SLEEVE (RIGHT) (INC. 2, 7 AND ONE NO. 8)CAP, AIR SLEEVE (RIGHT) (INC. 2, 7 AND ONE NO. 8)
-
12603-513 CAP, AIR SLEEVE (LEFT) (INC. 2, 7 AND ONE NO. 8)CAP, AIR SLEEVE (LEFT) (INC. 2, 7 AND ONE NO. 8)
-
22603-326 VALVE, AIRVALVE, AIR
-
32603-506 O-RINGO-RING
-
41604-318 O-RINGO-RING
-
52603-503 O-RINGO-RING
-
62603-514 KNOB, DAMPING ADJUSTKNOB, DAMPING ADJUST
-
72603-529 SPRING, REBOUNDSPRING, REBOUND
-
81604-315 BALL, BLEEDBALL, BLEED
-
91603-940 SCREWSCREW
-
102603-327 CAP, VALVECAP, VALVE
-
111604-664 BEARING, SPHERICALBEARING, SPHERICAL
-
122604-714 RING, SNAPRING, SNAP
-
132603-411 SLEEVE, SHOCK, ASSEMBLYSLEEVE, SHOCK, ASSEMBLY
-
142603-509 DECAL, SHOCKDECAL, SHOCK
-
152603-510 DECAL, MAXIMUM PRESSURE WARNINGDECAL, MAXIMUM PRESSURE WARNING
-
162603-524 BEARING, ASSEMBLYBEARING, ASSEMBLY
-
172603-523 SHAFT, SHOCK, ASSEMBLYSHAFT, SHOCK, ASSEMBLY
-
182603-522 GUIDE, SPRINGGUIDE, SPRING
-
192603-507 SPRINGSPRING
-
202603-516 ROD, DAMPING ADJUSTROD, DAMPING ADJUST
-
210603-540 WASHER, TOP OUTWASHER, TOP OUT
-
220603-348 VALVE, SHOCK 1.300 X 0.006 IN.VALVE, SHOCK 1.300 X 0.006 IN.
-
230603-337 VALVE, SHOCK 0.900 X 0.008 IN.VALVE, SHOCK 0.900 X 0.008 IN.
-
240603-349 VALVE, SHOCK 1.300 X 0.008 IN.VALVE, SHOCK 1.300 X 0.008 IN.
-
250603-350 VALVE, SHOCK 1.300 X 0.010 IN.VALVE, SHOCK 1.300 X 0.010 IN.
-
260603-893 VALVE, SHOCK 1.000 X 0.004 IN.VALVE, SHOCK 1.000 X 0.004 IN.
-
272603-531 PISTON, DAMPINGPISTON, DAMPING
-
280603-343 VALVE, SHOCK 1.100 X 0.008 IN.VALVE, SHOCK 1.100 X 0.008 IN.
-
290603-332 VALVE, SHOCK 0.700 X 0.010 IN.VALVE, SHOCK 0.700 X 0.010 IN.
-
300603-344 VALVE, SHOCK 1.100 X 0.010 IN.VALVE, SHOCK 1.100 X 0.010 IN.
-
310603-888 VALVE, SHOCK 1.100 X 0.015 IN.VALVE, SHOCK 1.100 X 0.015 IN.
-
320603-887 VALVE, SHOCK 1.000 X 0.015 IN.VALVE, SHOCK 1.000 X 0.015 IN.
-
330603-341 VALVE, SHOCK 1.000 X 0.010 IN.VALVE, SHOCK 1.000 X 0.010 IN.
-
340603-338 VALVE, SHOCK 0.900 X 0.010 IN.VALVE, SHOCK 0.900 X 0.010 IN.
-
350603-335 VALVE, SHOCK 0.800 X 0.010 IN.VALVE, SHOCK 0.800 X 0.010 IN.
-
360603-389 WASHER, BACKUPWASHER, BACKUP
-
370603-301 NUT, CAPNUT, CAP
-
382603-508 BODY, SHOCKBODY, SHOCK
-
392604-950 FITTING, ELBOWFITTING, ELBOW
-
402603-505 HOSE, SWIVELHOSE, SWIVEL
-
412604-943 FITTING, ELBOWFITTING, ELBOW
-
422603-528 HOUSING, DAMPING ADJUSTHOUSING, DAMPING ADJUST
-
432603-504 O-RINGO-RING
-
442604-969 PISTON, INTERNAL FLOATING, ASSEMBLYPISTON, INTERNAL FLOATING, ASSEMBLY
-
451604-316 SCREW, RELIEF W/O-RINGSCREW, RELIEF W/O-RING
-
462603-515 RESERVOIRRESERVOIR
-
472603-584 DECAL, SHOCK, RESERVOIRDECAL, SHOCK, RESERVOIR
-
482603-525 END CAP, SHOCK, ASSEMBLYEND CAP, SHOCK, ASSEMBLY
-
490604-992 RING, RETAININGRING, RETAINING
-
500703-341 VALVE, PRESSUREVALVE, PRESSURE
-
510624-097 SCREW, MACHINESCREW, MACHINE
-
520603-975 O-RINGO-RING
-
532603-499 VALVE, SHOCK 0.500 X 0.006 IN.VALVE, SHOCK 0.500 X 0.006 IN.
-
542603-500 VALVE, SHOCK 0.600 X 0.010 IN.VALVE, SHOCK 0.600 X 0.010 IN.
-
552603-501 VALVE, SHOCK 0.700 X 0.010 IN.VALVE, SHOCK 0.700 X 0.010 IN.
-
562603-526 PISTON, DAMPINGPISTON, DAMPING
-
570603-331 VALVE, SHOCK 0.700 X 0.008 IN.VALVE, SHOCK 0.700 X 0.008 IN.
-
582603-502 O-RINGO-RING
-
592603-527 CARTRIDGE, DAMPING ADJUSTCARTRIDGE, DAMPING ADJUST
-
602603-498 REBUILD KITREBUILD KIT
-
612639-905 OIL, GAS SHOCK, 6 QT CASEOIL, GAS SHOCK, 6 QT CASE
