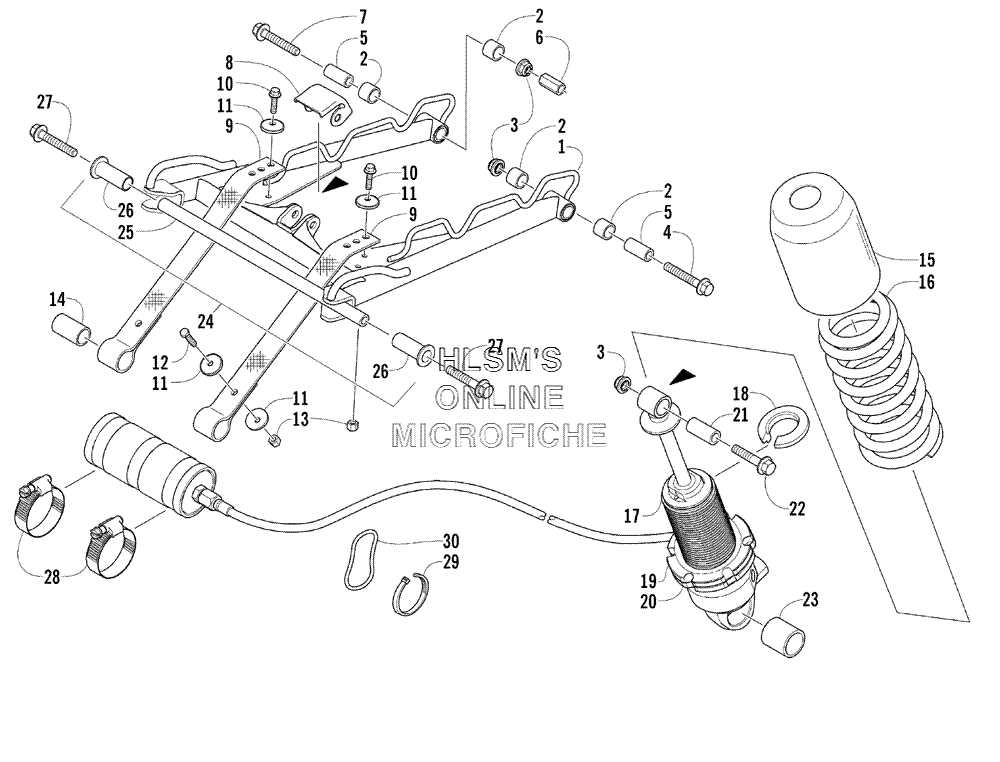

REAR SUSPENSION FRONT ARM ASSEMBLY для Arctic Cat AC 440 SNO PRO GREEN INTERNATIONAL - 2005 года выпуска
-
№АртикулНазвание
-
11704-365 ARM SUSPENSION (FRONT) (INC. 2)ARM SUSPENSION (FRONT) (INC. 2)
-
20604-889 BUSHINGBUSHING
-
38047-486 NUT, LOCKNUT, LOCK
-
48020-228 SCREW, CAPSCREW, CAP
-
50104-629 SPACER ARM (FRONT)SPACER ARM (FRONT)
-
62604-707 STOP, PIVOTSTOP, PIVOT
-
78020-229 SCREW, CAPSCREW, CAP
-
82604-112 GUIDE ARM (FRONT/CENTER)GUIDE ARM (FRONT/CENTER)
-
92604-934 STRAP, LIMITERSTRAP, LIMITER
-
108002-041 SCREW, CAPSCREW, CAP
-
110623-875 WASHERWASHER
-
128002-043 SCREW, CAPSCREW, CAP
-
138040-366 NUT, LOCKNUT, LOCK
-
142604-962 SPACERSPACER
-
150604-790 COVER, SHOCKCOVER, SHOCK
-
161604-197 SPRING, COMPRESSIONSPRING, COMPRESSION
-
171704-349 SHOCK ABSORBER ARM (FRONT)SHOCK ABSORBER ARM (FRONT)
-
181603-890 RETAINER, SPRINGRETAINER, SPRING
-
190603-259 NUT, SPRING RETAINERNUT, SPRING RETAINER
-
200704-798 NUT, RETAINER, MACHINEDNUT, RETAINER, MACHINED
-
211603-531 AXLE, SHOCKAXLE, SHOCK
-
221623-220 SCREW, CAPSCREW, CAP
-
232604-407 BUSHING, SHOCKBUSHING, SHOCK
-
241704-380 AXLE ARM (FRONT) (INC. 25, 26)AXLE ARM (FRONT) (INC. 25, 26)
-
252604-932 AXLE ARM (FRONT)AXLE ARM (FRONT)
-
262604-930 BUSHING, AXLEBUSHING, AXLE
-
278020-225 SCREW, CAPSCREW, CAP
-
280214-025 CLAMP, RESERVOIRCLAMP, RESERVOIR
-
290123-788 CABLE TIE, 8 IN.CABLE TIE, 8 IN.
-
301604-935 SUPPORT, HOSESUPPORT, HOSE
