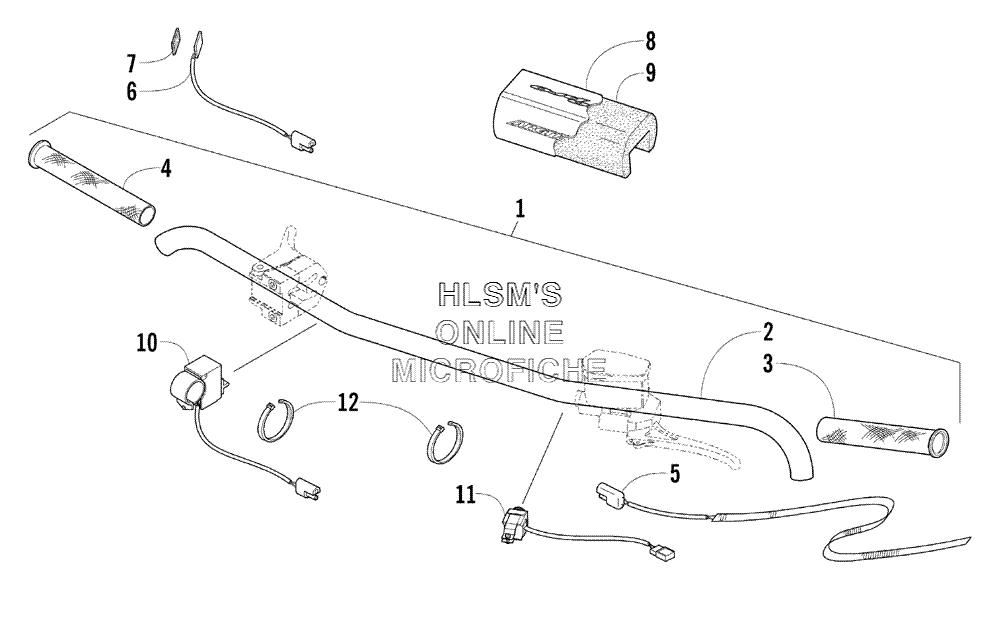

HANDLEBAR ASSEMBLY для Arctic Cat AC 440 SNO PRO GREEN INTERNATIONAL - 2005 года выпуска
-
№АртикулНазвание
-
11705-042 HANDLEBAR ASSEMBLY (INC. 2, 5)HANDLEBAR ASSEMBLY (INC. 2, 5)
-
20705-978 HANDLEBARHANDLEBAR
-
32606-400 GRIP, HANDLEBAR (LEFT)GRIP, HANDLEBAR (LEFT)
-
41606-442 GRIP, HANDLEBAR (RIGHT)GRIP, HANDLEBAR (RIGHT)
-
50609-644 ELEMENT, HANDWARMER (RIGHT)ELEMENT, HANDWARMER (RIGHT)
-
50609-645 ELEMENT, HANDWARMER (LEFT)ELEMENT, HANDWARMER (LEFT)
-
60609-646 ELEMENT, THUMBWARMERELEMENT, THUMBWARMER
-
70617-248 PAD, INSULATORPAD, INSULATOR
-
81705-056 WRAP, HANDLEBAR PADWRAP, HANDLEBAR PAD
-
90619-926 FOAM, HANDLEBAR PADFOAM, HANDLEBAR PAD
-
100609-471 SWITCH, STOPSWITCH, STOP
-
110609-643 SWITCH, TIMINGSWITCH, TIMING
-
120123-788 CABLE TIE, 7 IN.CABLE TIE, 7 IN.
