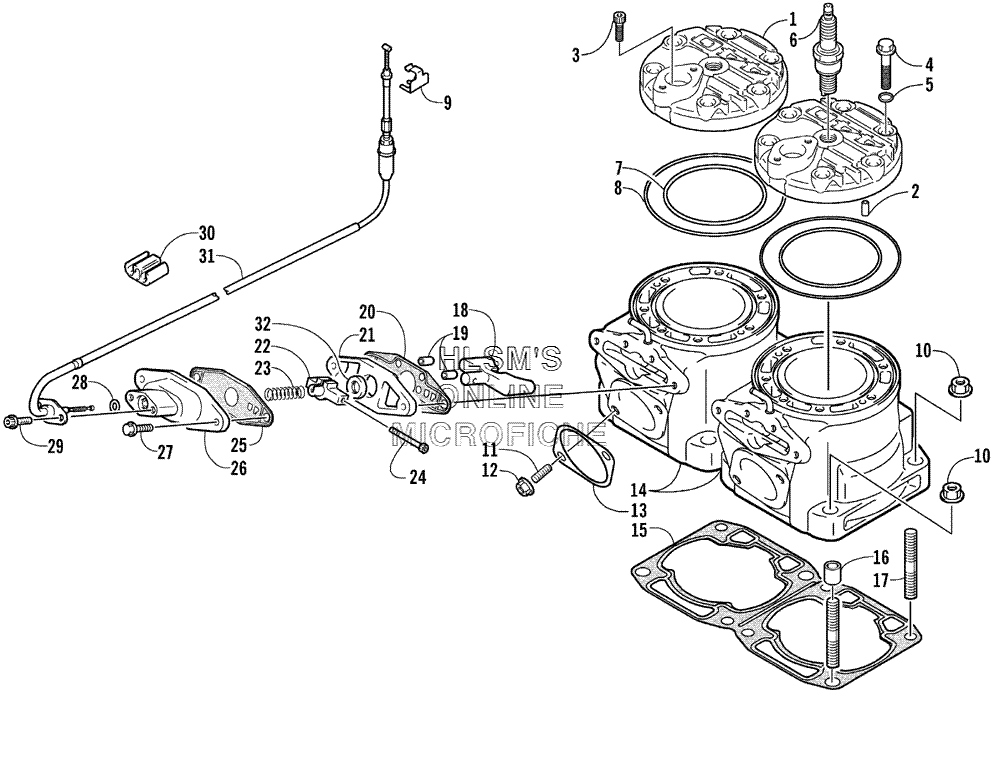

CYLINDER AND HEAD ASSEMBLY для Arctic Cat AC 440 SNO PRO GREEN INTERNATIONAL - 2005 года выпуска
-
№АртикулНазвание
-
13006-622 HEAD, CYLINDER (INC. 2)HEAD, CYLINDER (INC. 2)
-
23006-321 PIN, DOWELPIN, DOWEL
-
33004-534 BOLTBOLT
-
43004-459 BOLTBOLT
-
53003-227 O-RINGO-RING
-
60217-709 PLUG, SPARK (BR9EYA)PLUG, SPARK (BR9EYA)
-
73003-224 O-RINGO-RING
-
83003-226 O-RINGO-RING
-
93005-747 HOLDER, EXHAUST VALVE CABLEHOLDER, EXHAUST VALVE CABLE
-
103004-491 NUTNUT
-
113004-279 BOLT, STUDBOLT, STUD
-
123004-326 NUTNUT
-
133003-503 GASKET, EXHAUSTGASKET, EXHAUST
-
143006-738 CYLINDERCYLINDER
-
153006-423 GASKET, CYLINDERGASKET, CYLINDER
-
163004-975 PIN, DOWELPIN, DOWEL
-
173005-596 BOLT, STUDBOLT, STUD
-
183006-739 VALVE, EXHAUSTVALVE, EXHAUST
-
193006-321 PIN, EXHAUST VALVE DOWELPIN, EXHAUST VALVE DOWEL
-
203006-329 GASKET, EXHAUST VALVEGASKET, EXHAUST VALVE
-
213006-495 PLATE, EXHAUST VALVEPLATE, EXHAUST VALVE
-
223005-860 STOPPER, EXHAUST VALVESTOPPER, EXHAUST VALVE
-
233006-484 SPRINGSPRING
-
243005-983 PIN, EXHAUST VALVEPIN, EXHAUST VALVE
-
253006-436 GASKET, EXHAUST VALVE COVERGASKET, EXHAUST VALVE COVER
-
263006-425 COVER, EXHAUST VALVECOVER, EXHAUST VALVE
-
273004-442 BOLTBOLT
-
283005-226 O-RINGO-RING
-
293005-744 BOLTBOLT
-
303005-808 CLAMPCLAMP
-
313006-736 CABLE, EXHAUST VALVECABLE, EXHAUST VALVE
-
323006-322 SEAL, OIL, EXHAUST VALVESEAL, OIL, EXHAUST VALVE
