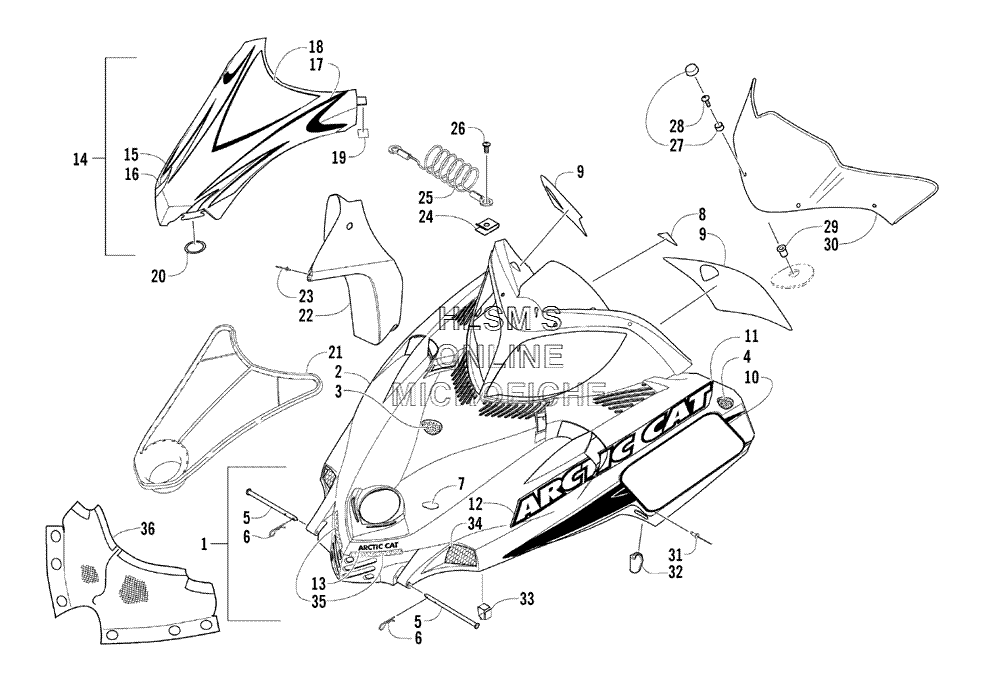

HOOD AND WINDSHIELD ASSEMBLY для Arctic Cat AC 440 SNO PRO GREEN INTERNATIONAL - 2005 года выпуска
-
№АртикулНазвание
-
11718-759 HOOD W/DECALS (INC. 2, 13)HOOD W/DECALS (INC. 2, 13)
-
21718-587 HOOD W/O DECALS (INC. 3, 7)HOOD W/O DECALS (INC. 3, 7)
-
30617-463 FOAM, HOOD (MIDDLE)FOAM, HOOD (MIDDLE)
-
40617-464 FOAM, HOOD (REAR/RIGHT)FOAM, HOOD (REAR/RIGHT)
-
40617-465 FOAM, HOOD (REAR/LEFT)FOAM, HOOD (REAR/LEFT)
-
51623-026 PIN, CLEVISPIN, CLEVIS
-
60623-847 CLIP, HAIRPINCLIP, HAIRPIN
-
73606-130 FOIL, HOODFOIL, HOOD
-
83611-611 DECAL, "MADE IN U.S.A.", DOMEDDECAL, "MADE IN U.S.A.", DOMED
-
96611-628 DECAL, CONSOLE (RIGHT)DECAL, CONSOLE (RIGHT)
-
96611-629 DECAL, CONSOLE (LEFT)DECAL, CONSOLE (LEFT)
-
106611-624 DECAL, HOOD (LOWER/RIGHT)DECAL, HOOD (LOWER/RIGHT)
-
106611-625 DECAL, HOOD (LOWER/LEFT)DECAL, HOOD (LOWER/LEFT)
-
117611-026 DECAL, HOOD, VENT (REAR/RIGHT)DECAL, HOOD, VENT (REAR/RIGHT)
-
117611-027 DECAL, HOOD, VENT (REAR/LEFT)DECAL, HOOD, VENT (REAR/LEFT)
-
127611-028 DECAL, HOOD, VENT (FRONT/RIGHT)DECAL, HOOD, VENT (FRONT/RIGHT)
-
127611-029 DECAL, HOOD, VENT (FRONT/LEFT)DECAL, HOOD, VENT (FRONT/LEFT)
-
133611-187 DECAL, "ARCTIC CAT", HOODDECAL, "ARCTIC CAT", HOOD
-
141718-761 COVER, HOOD (INC. 15, 19)COVER, HOOD (INC. 15, 19)
-
152706-031 COVER, HOOD W/O DECALSCOVER, HOOD W/O DECALS
-
166611-618 DECAL, COVER (FRONT/RIGHT)DECAL, COVER (FRONT/RIGHT)
-
166611-619 DECAL, COVER (FRONT/LEFT)DECAL, COVER (FRONT/LEFT)
-
176611-616 DECAL, COVER, SIDE (RIGHT)DECAL, COVER, SIDE (RIGHT)
-
176611-617 DECAL, COVER, SIDE (LEFT)DECAL, COVER, SIDE (LEFT)
-
186611-615 DECAL, COVER, CRESTDECAL, COVER, CREST
-
192606-007 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
202606-801 O-RINGO-RING
-
213606-150 SCREEN, HOODSCREEN, HOOD
-
223606-030 DUCT, BRAKEDUCT, BRAKE
-
238061-506 RIVETRIVET
-
241623-052 U, NUTU, NUT
-
252606-726 CABLE, HOODCABLE, HOOD
-
260623-302 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
270124-054 SNAP CAP W/WASHERSNAP CAP W/WASHER
-
280623-902 SCREW, MACHINESCREW, MACHINE
-
290623-845 NUT, EXPANSIONNUT, EXPANSION
-
303606-842 WINDSHIELDWINDSHIELD
-
318061-708 RIVETRIVET
-
322606-096 HOLD, DOWN, HOOD (RIGHT)HOLD, DOWN, HOOD (RIGHT)
-
321606-441 HOLD, DOWN, HOOD (LEFT)HOLD, DOWN, HOOD (LEFT)
-
330123-394 CLIP, RETAININGCLIP, RETAINING
-
342606-974 SCREEN, HOOD (RIGHT)SCREEN, HOOD (RIGHT)
-
342606-975 SCREEN, HOOD (LEFT)SCREEN, HOOD (LEFT)
-
352706-458 HOOK, VELCRO (10 FT)HOOK, VELCRO (10 FT)
-
363606-409 SCREEN, HOODSCREEN, HOOD
