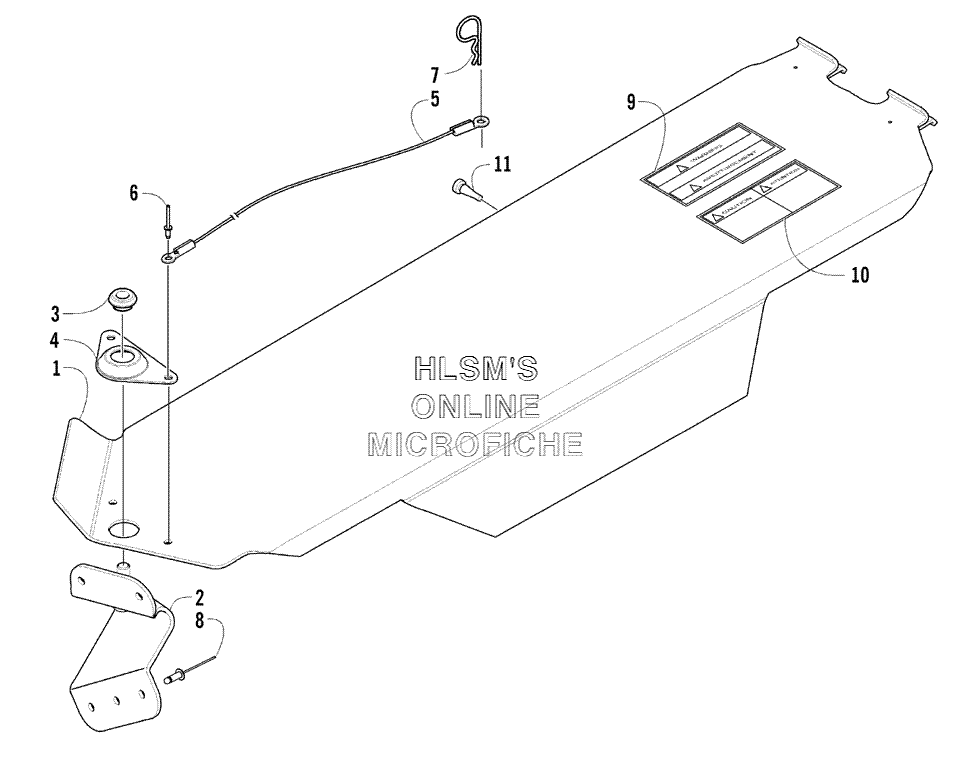

BELT GUARD ASSEMBLY для Arctic Cat AC 440 SNO PRO GREEN INTERNATIONAL - 2005 года выпуска
-
№АртикулНазвание
-
10707-976 GUARD, BELTGUARD, BELT
-
20707-992 BRACKET, MOUNTING, BELT GUARDBRACKET, MOUNTING, BELT GUARD
-
30607-549 BUSHING, BELT GUARDBUSHING, BELT GUARD
-
40607-550 PLATE, BUSHING, BELT GUARDPLATE, BUSHING, BELT GUARD
-
50607-447 CABLECABLE
-
68060-504 RIVETRIVET
-
70605-283 HAIRPIN, COTTERHAIRPIN, COTTER
-
88061-506 RIVETRIVET
-
91611-565 DECAL, WARNING, BELT GUARDDECAL, WARNING, BELT GUARD
-
101611-582 DECAL, CAUTION, JETTING/STORAGEDECAL, CAUTION, JETTING/STORAGE
-
113606-178 BUMPER, RUBBERBUMPER, RUBBER
