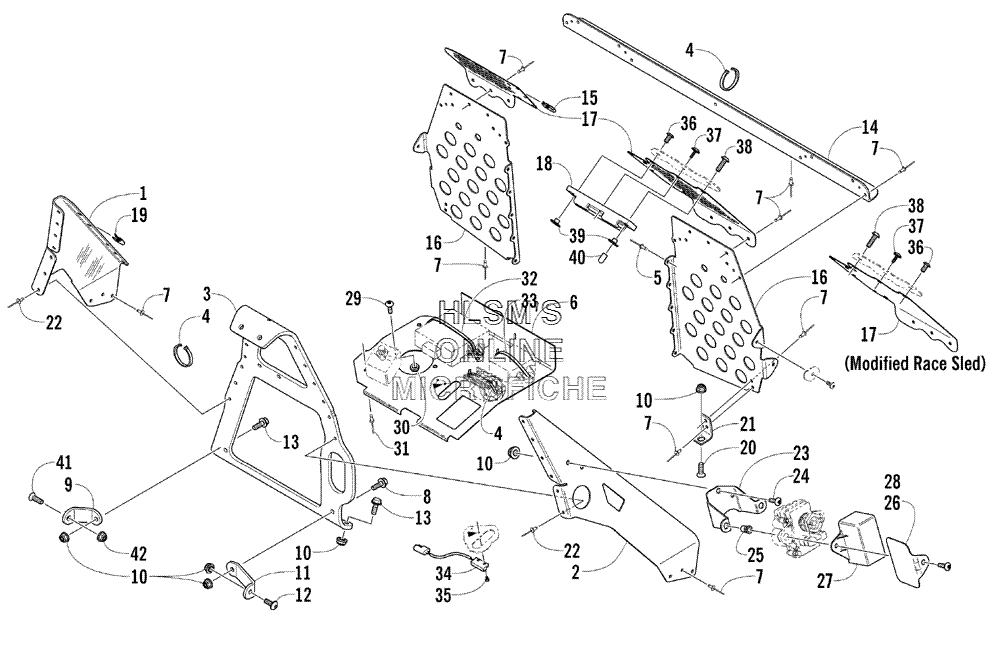

FOOTREST AND STEERING SUPPORT ASSEMBLY для Arctic Cat AC 440 SNO PRO GREEN INTERNATIONAL - 2005 года выпуска
-
№АртикулНазвание
-
10707-914 SUPPORT, STEERING (RIGHT)SUPPORT, STEERING (RIGHT)
-
20707-915 SUPPORT, STEERING (LEFT)SUPPORT, STEERING (LEFT)
-
30707-996 SUPPORT, STEERINGSUPPORT, STEERING
-
40123-788 CABLE TIE, 7.5 IN.CABLE TIE, 7.5 IN.
-
51623-241 RIVETRIVET
-
63606-491 PLATE, ELECTRICALPLATE, ELECTRICAL
-
71623-130 RIVETRIVET
-
88020-040 SCREW, CAPSCREW, CAP
-
93706-124 SUPPORT, SIDE PLATE (RIGHT)SUPPORT, SIDE PLATE (RIGHT)
-
108047-366 NUT, LOCKNUT, LOCK
-
110607-779 SUPPORT, SIDE PLATE (LEFT)SUPPORT, SIDE PLATE (LEFT)
-
128017-580 SCREW, MACHINESCREW, MACHINE
-
138020-041 SCREW, CAPSCREW, CAP
-
140707-919 SUPPORT, FOOTRESTSUPPORT, FOOTREST
-
151623-052 NUT, UNUT, U
-
163706-112 FOOTREST (RIGHT)FOOTREST (RIGHT)
-
163706-113 FOOTREST (LEFT)FOOTREST (LEFT)
-
173706-034 SUPPORT, FOOTREST (RIGHT)SUPPORT, FOOTREST (RIGHT)
-
173706-035 SUPPORT, FOOTREST (LEFT)SUPPORT, FOOTREST (LEFT)
-
183606-968 MOUNT, BELT GUARDMOUNT, BELT GUARD
-
191623-030 NUT, SPEEDNUT, SPEED
-
200623-962 SCREW, MACHINESCREW, MACHINE
-
212706-696 SUPPORT, FOOTRESTSUPPORT, FOOTREST
-
221623-206 RIVETRIVET
-
233606-094 PLATE, MOUNTING, SERVOMOTORPLATE, MOUNTING, SERVOMOTOR
-
248017-579 SCREW, MACHINESCREW, MACHINE
-
250623-582 INSERTINSERT
-
264606-130 PLATE, SERVOMOTOR COVERPLATE, SERVOMOTOR COVER
-
272606-129 COVER, SERVOMOTORCOVER, SERVOMOTOR
-
288017-584 SCREW, MACHINESCREW, MACHINE
-
298017-577 SCREW, MACHINESCREW, MACHINE
-
308041-366 NUT, LOCKNUT, LOCK
-
310623-282 RIVETRIVET
-
320623-144 CABLE TIE, 17.5 IN.CABLE TIE, 17.5 IN.
-
330123-903 CABLE TIE, 11.5 IN.CABLE TIE, 11.5 IN.
-
340630-184 SENSOR, SPEEDSENSOR, SPEED
-
350623-462 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
368017-577 SCREW, MACHINESCREW, MACHINE
-
370623-797 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
388017-581 SCREW, MACHINESCREW, MACHINE
-
391623-413 NUT, TNUT, T
-
400623-404 CAP, PROTECTORCAP, PROTECTOR
-
411623-419 SCREW, MACHINESCREW, MACHINE
-
428047-426 NUT, LOCKNUT, LOCK
