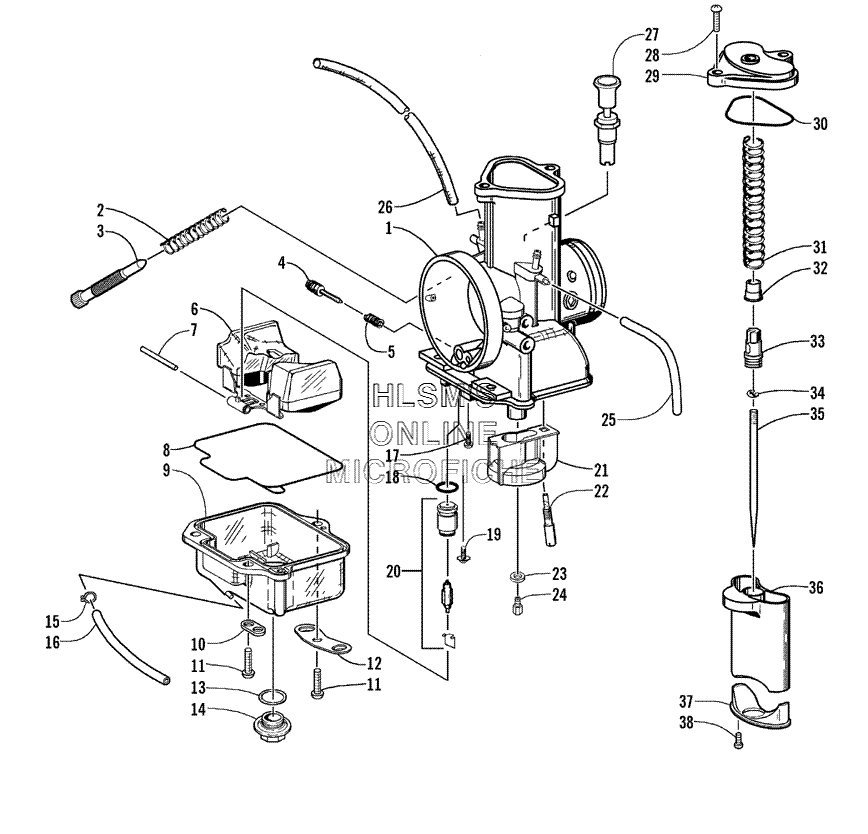

CARBURETOR для Arctic Cat AC 440 SNO PRO GREEN INTERNATIONAL - 2005 года выпуска
-
№АртикулНазвание
-
-1670-605 COMPLETE CARBURETOR ASSEMBLYCOMPLETE CARBURETOR ASSEMBLY
-
26505-981 SPRING, IDLE SPEED SCREWSPRING, IDLE SPEED SCREW
-
36505-982 SCREW, IDLE SPEEDSCREW, IDLE SPEED
-
46505-988 SCREW, IDLE AIRSCREW, IDLE AIR
-
56505-987 SPRING, IDLE AIR SCREWSPRING, IDLE AIR SCREW
-
66505-994 CHAMBER, FLOAT, ASSEMBLYCHAMBER, FLOAT, ASSEMBLY
-
76505-995 PIN, FLOATPIN, FLOAT
-
86506-015 GASKET, FLOAT CHAMBER ASSEMBLYGASKET, FLOAT CHAMBER ASSEMBLY
-
96506-256 BODY, FLOAT, ASSEMBLYBODY, FLOAT, ASSEMBLY
-
106505-094 PLATE, HOSEPLATE, HOSE
-
116505-980 SCREW, MACHINESCREW, MACHINE
-
126505-986 PLATEPLATE
-
136505-243 O-RING, DRAIN PLUGO-RING, DRAIN PLUG
-
146506-254 PLUG, DRAINPLUG, DRAIN
-
156506-251 CLAMP, HOSECLAMP, HOSE
-
166506-252 HOSEHOSE
-
176505-996 SCREW, MACHINESCREW, MACHINE
-
186505-672 O-RINGO-RING
-
196505-998 SCREW, MACHINESCREW, MACHINE
-
206506-255 VALVE, NEEDLE 1.5VALVE, NEEDLE 1.5
-
216506-014 HOLDER, GUIDEHOLDER, GUIDE
-
226506-002 PILOT JET 22.5PILOT JET 22.5
-
226505-999 PILOT JET 17.5PILOT JET 17.5
-
226506-001 PILOT JET 20PILOT JET 20
-
226506-003 PILOT JET 25PILOT JET 25
-
226506-004 PILOT JET 27.5PILOT JET 27.5
-
226506-005 PILOT JET 30PILOT JET 30
-
236506-091 WASHERWASHER
-
246506-385 MAIN JET 260MAIN JET 260
-
256506-253 HOSEHOSE
-
266505-983 HOSE, VENTHOSE, VENT
-
276506-334 PLUNGER, STARTERPLUNGER, STARTER
-
286505-984 SCREW, MACHINESCREW, MACHINE
-
296506-008 CAP, TOP (INC. 30)CAP, TOP (INC. 30)
-
306506-018 GASKETGASKET
-
316506-009 SPRINGSPRING
-
326506-006 RINGRING
-
336506-007 HOLDER, GUIDEHOLDER, GUIDE
-
346505-628 E, CLIPE, CLIP
-
356506-386 JET NEEDLE 6FM7, 60JET NEEDLE 6FM7, 60
-
356506-300 JET NEEDLE 6FM5, 60JET NEEDLE 6FM5, 60
-
356506-285 JET NEEDLE 6FM4, 60JET NEEDLE 6FM4, 60
-
356506-174 JET NEEDLE 6FM2, 60JET NEEDLE 6FM2, 60
-
366506-286 VALVE, THROTTLE 3.5VALVE, THROTTLE 3.5
-
366506-172 VALVE, THROTTLE 3.0VALVE, THROTTLE 3.0
-
366505-990 VALVE, THROTTLE 4.0VALVE, THROTTLE 4.0
-
366505-991 VALVE, THROTTLE 4.5VALVE, THROTTLE 4.5
-
376506-303 VENTURIVENTURI
-
386505-985 SCREWSCREW
