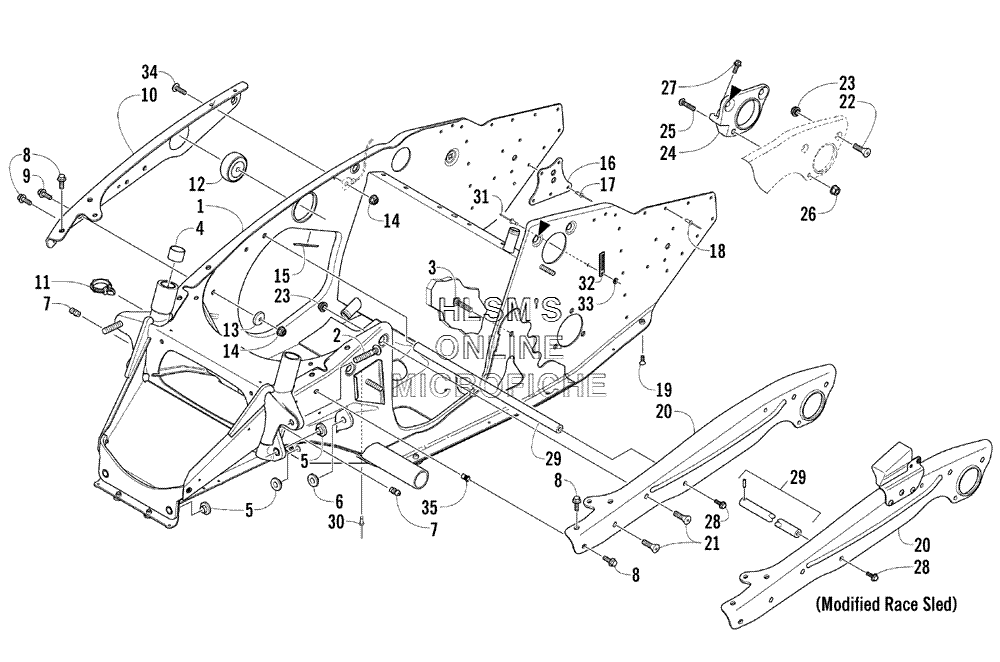

FRONT FRAME ASSEMBLY для Arctic Cat AC 440 SNO PRO GREEN INTERNATIONAL - 2005 года выпуска
-
№АртикулНазвание
-
11707-035 CHASSIS ASSEMBLY (INC. 2, 7)CHASSIS ASSEMBLY (INC. 2, 7)
-
21623-019 BOLT, CARRIAGE, RIBBEDBOLT, CARRIAGE, RIBBED
-
31623-020 BOLT, CARRIAGE, RIBBEDBOLT, CARRIAGE, RIBBED
-
40675-161 BEARINGBEARING
-
50607-657 BUSHING A, ARM MOUNT (LOWER)BUSHING A, ARM MOUNT (LOWER)
-
60607-656 BUSHING A, ARM MOUNT (UPPER)BUSHING A, ARM MOUNT (UPPER)
-
71623-010 FITTING, GREASEFITTING, GREASE
-
88020-039 SCREW, CAPSCREW, CAP
-
98020-042 SCREW, CAPSCREW, CAP
-
103606-899 BRACE, SIDE PLATE (RIGHT)BRACE, SIDE PLATE (RIGHT)
-
110623-454 CLIP, SNAP, INNERCLIP, SNAP, INNER
-
120608-405 MOUNT, ENGINEMOUNT, ENGINE
-
130623-943 WASHER, CUPWASHER, CUP
-
148047-366 NUT, LOCKNUT, LOCK
-
150706-371 TRIMTRIM
-
162706-151 PLATE, BACKINGPLATE, BACKING
-
170623-282 RIVETRIVET
-
181623-130 RIVETRIVET
-
191623-018 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
203606-901 BRACE, SIDE PLATE (LEFT)BRACE, SIDE PLATE (LEFT)
-
211623-260 SCREW, MACHINESCREW, MACHINE
-
220623-606 SCREW, MACHINESCREW, MACHINE
-
238047-426 NUT, LOCKNUT, LOCK
-
240708-447 BRACKET, BEARING SUPPORT (INC. 25)BRACKET, BEARING SUPPORT (INC. 25)
-
250623-117 BOLT, STUD, RIBBEDBOLT, STUD, RIBBED
-
268048-366 NUT, LOCKNUT, LOCK
-
278020-041 SCREW, CAPSCREW, CAP
-
288020-130 SCREW, CAPSCREW, CAP
-
292606-695 CROSSBRACECROSSBRACE
-
308060-808 RIVETRIVET
-
310623-166 RIVETRIVET
-
323002-964 CLAMP, WIRECLAMP, WIRE
-
331623-236 WASHERWASHER
-
348017-579 SCREW, MACHINESCREW, MACHINE
-
350623-582 INSERTINSERT
