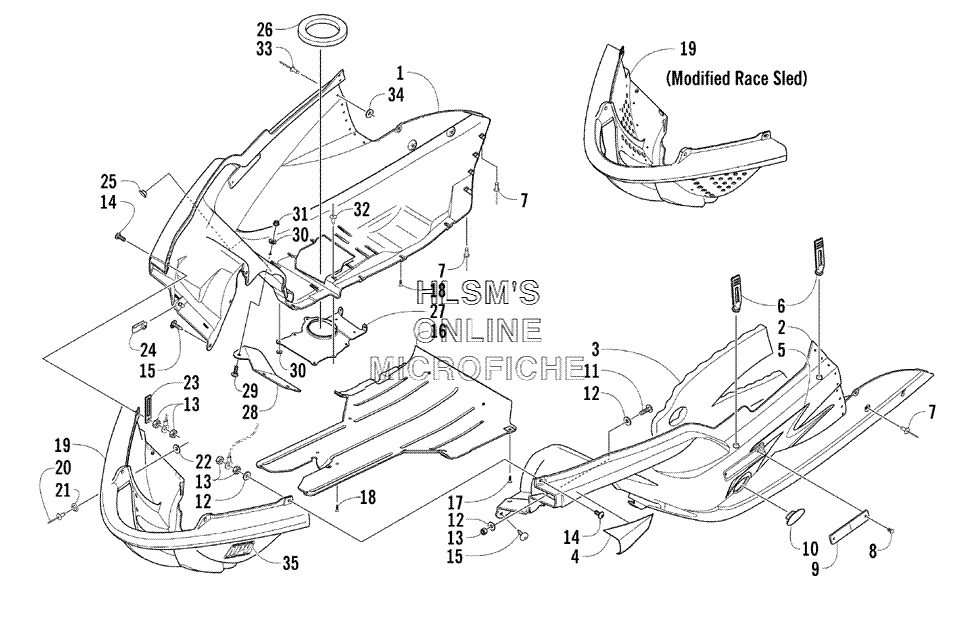

BELLY PAN ASSEMBLY для Arctic Cat AC 440 SNO PRO GREEN INTERNATIONAL - 2005 года выпуска
-
№АртикулНазвание
-
12706-588 BELLY PAN (RIGHT)BELLY PAN (RIGHT)
-
22706-851 BELLY PAN (LEFT)BELLY PAN (LEFT)
-
30617-443 FOAM, BELLY PANFOAM, BELLY PAN
-
45611-942 DECAL, BELLY PAN (FRONT/RIGHT)DECAL, BELLY PAN (FRONT/RIGHT)
-
45611-943 DECAL, BELLY PAN (FRONT/LEFT)DECAL, BELLY PAN (FRONT/LEFT)
-
56611-620 DECAL, BELLY PAN (LOWER/RIGHT)DECAL, BELLY PAN (LOWER/RIGHT)
-
56611-621 DECAL, BELLY PAN (LOWER/LEFT)DECAL, BELLY PAN (LOWER/LEFT)
-
61606-930 STRAP, HOLD, DOWNSTRAP, HOLD, DOWN
-
78061-628 RIVETRIVET
-
80623-269 CLIP, RETAININGCLIP, RETAINING
-
90606-526 REFLECTOR (FRONT/AMBER)REFLECTOR (FRONT/AMBER)
-
102606-650 PANEL, CLUTCH ACCESSPANEL, CLUTCH ACCESS
-
118017-581 SCREW, MACHINESCREW, MACHINE
-
128050-217 WASHERWASHER
-
138041-366 NUT, LOCKNUT, LOCK
-
148017-582 SCREW, MACHINESCREW, MACHINE
-
150623-784 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
163606-027 BELLY PAN, CENTERBELLY PAN, CENTER
-
171623-031 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
180623-797 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
192706-626 BUMPER (FRONT) (INC. 20, 22)BUMPER (FRONT) (INC. 20, 22)
-
208060-209 RIVETRIVET
-
210116-074 SNAPSNAP
-
221623-153 WASHERWASHER
-
233002-964 CLAMP, WIRECLAMP, WIRE
-
241623-030 NUT, SPEEDNUT, SPEED
-
253606-050 PIN, RESONATOR MOUNTINGPIN, RESONATOR MOUNTING
-
261612-408 SEAL, EXHAUSTSEAL, EXHAUST
-
271612-788 DEFLECTOR, EXHAUSTDEFLECTOR, EXHAUST
-
283606-448 PLATE, DEFLECTORPLATE, DEFLECTOR
-
298017-397 SCREW, MACHINESCREW, MACHINE
-
300623-594 WASHERWASHER
-
318041-246 NUT, LOCKNUT, LOCK
-
328061-708 RIVETRIVET
-
338061-508 RIVETRIVET
-
341623-236 WASHERWASHER
-
357611-150 DECAL, APV OILDECAL, APV OIL
