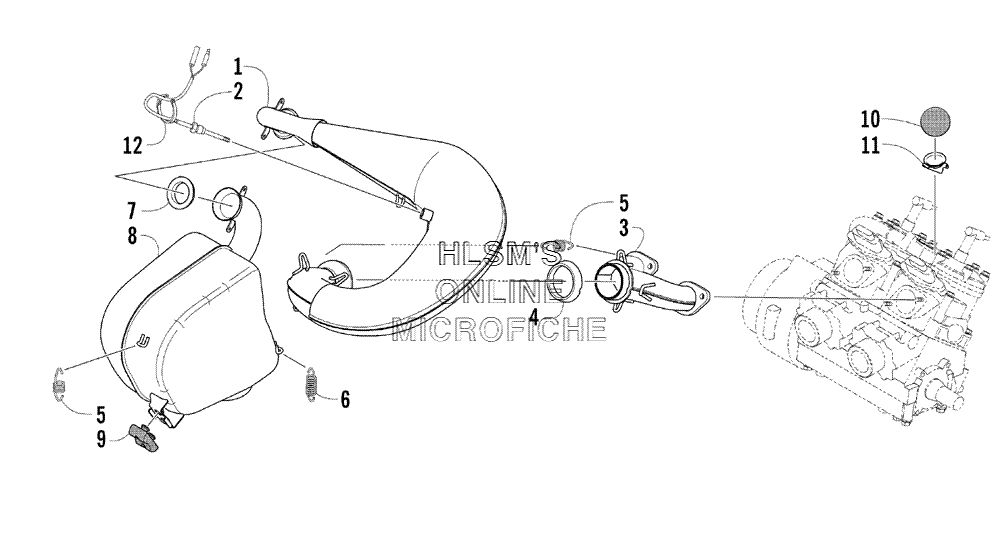

EXHAUST ASSEMBLY для Arctic Cat AC 440 SNO PRO GREEN INTERNATIONAL - 2005 года выпуска
-
№АртикулНазвание
-
11712-163 CHAMBER, EXPANSION, COATEDCHAMBER, EXPANSION, COATED
-
20630-145 SENSOR, TEMPERATURE, EXHAUSTSENSOR, TEMPERATURE, EXHAUST
-
31712-097 MANIFOLD, EXHAUSTMANIFOLD, EXHAUST
-
41612-014 GASKET, EXHAUSTGASKET, EXHAUST
-
50612-668 SPRING, EXTENSIONSPRING, EXTENSION
-
60612-471 SPRING, EXHAUSTSPRING, EXHAUST
-
70612-693 GASKET, EXHAUST, TAILPIPEGASKET, EXHAUST, TAILPIPE
-
81712-090 RESONATORRESONATOR
-
91612-685 MOUNT, RESONATOR, RUBBERMOUNT, RESONATOR, RUBBER
-
101612-678 MOUNT, EXPANSION CHAMBERMOUNT, EXPANSION CHAMBER
-
111712-036 BRACKET, MOUNTING, EXPANSION CHAMBERBRACKET, MOUNTING, EXPANSION CHAMBER
-
120123-811 CABLE TIE, 4 IN.CABLE TIE, 4 IN.
