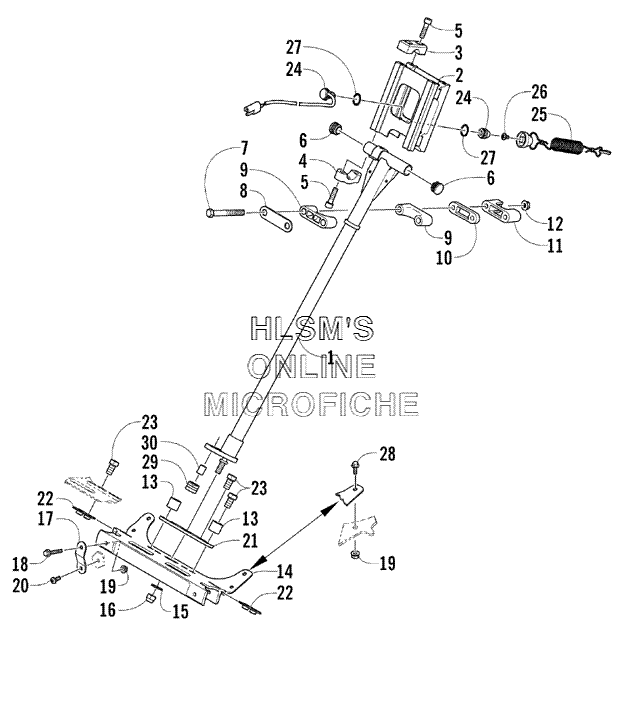

STEERING POST ASSEMBLY для Arctic Cat AC 440 SNO PRO GREEN INTERNATIONAL - 2005 года выпуска
-
№АртикулНазвание
-
11705-061 POST, STEERINGPOST, STEERING
-
20605-779 RISER, HANDLEBAR, 4.4 IN.RISER, HANDLEBAR, 4.4 IN.
-
20605-838 RISER, HANDLEBAR, 5.4 IN.RISER, HANDLEBAR, 5.4 IN.
-
30705-355 CAP, ADJUSTING BLOCK (UPPER)CAP, ADJUSTING BLOCK (UPPER)
-
40605-676 CAP, ADJUSTING BLOCK (LOWER)CAP, ADJUSTING BLOCK (LOWER)
-
50623-872 SCREW, CAPSCREW, CAP
-
61606-079 PLUG, HOLEPLUG, HOLE
-
71623-397 SCREW, CAPSCREW, CAP
-
80605-722 PLATE, RETAININGPLATE, RETAINING
-
90605-576 BLOCK, MOUNTING, STEERING POSTBLOCK, MOUNTING, STEERING POST
-
101705-115 PLATE, ADJUSTMENT BLOCKPLATE, ADJUSTMENT BLOCK
-
111705-069 BLOCK, ADJUSTMENTBLOCK, ADJUSTMENT
-
128047-426 NUT, LOCKNUT, LOCK
-
131705-088 STOP, STEERING POSTSTOP, STEERING POST
-
140607-844 SUPPORT, STEERING, MACHINEDSUPPORT, STEERING, MACHINED
-
150623-985 WASHERWASHER
-
160623-025 NUT, LOCKNUT, LOCK
-
170607-860 SUPPORT, STRAPSUPPORT, STRAP
-
188020-049 SCREW, CAPSCREW, CAP
-
198047-366 NUT, LOCKNUT, LOCK
-
201623-022 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
211705-097 PLATE, MOUNTING, STEERING POSTPLATE, MOUNTING, STEERING POST
-
220605-787 PLATE, NUT, STEERING SUPPORTPLATE, NUT, STEERING SUPPORT
-
231623-396 SCREW, CAPSCREW, CAP
-
240709-072 TETHER SWITCH ASSEMBLY (INC. 25, 26)TETHER SWITCH ASSEMBLY (INC. 25, 26)
-
250709-055 TETHER ASSEMBLY (INC. 26)TETHER ASSEMBLY (INC. 26)
-
260623-338 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
270123-985 WASHER, LOCK, INTERNAL TOOTHWASHER, LOCK, INTERNAL TOOTH
-
288020-039 SCREW, CAPSCREW, CAP
-
291705-110 HOUSING W/BEARINGHOUSING W/BEARING
-
300605-816 AXLE, BEARING HOUSINGAXLE, BEARING HOUSING
