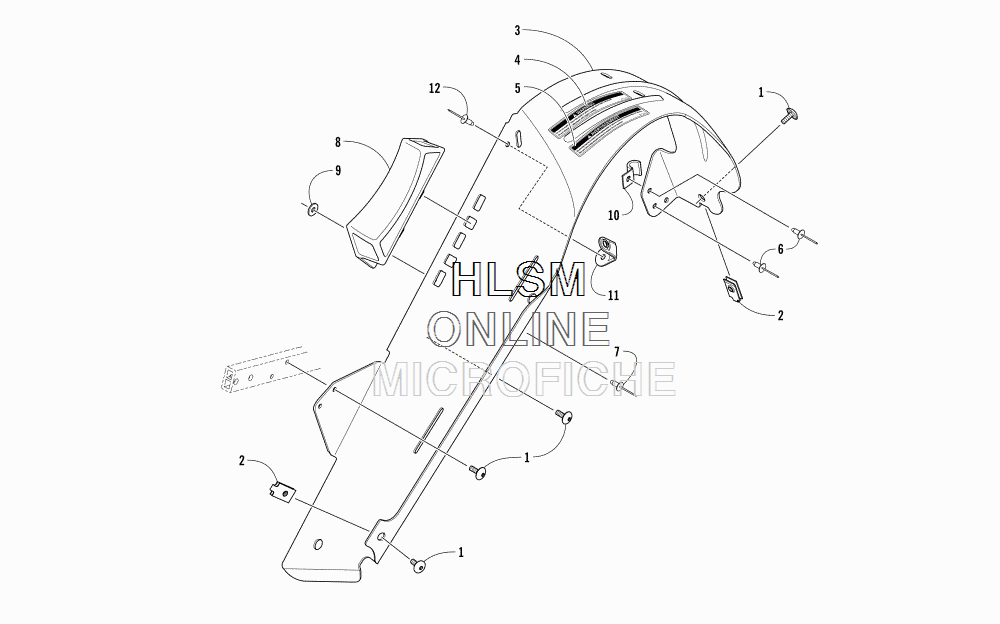

BELT GUARD ASSEMBLY для Arctic Cat XF 8000 HIGH COUNTRY LTD ES 153 GREEN INTERNATIONAL - 2018 года выпуска
-
№АртикулНазвание
-
12623-164 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
21623-052 CLIP, U-NUTCLIP, U-NUT
-
33707-078 GUARD, BELT (INC. 4-5)GUARD, BELT (INC. 4-5)
-
49611-690 ...DECAL, WARNING (ENGLISH)...DECAL, WARNING (ENGLISH)
-
59611-691 ...DECAL, WARNING (FRENCH)...DECAL, WARNING (FRENCH)
-
68060-686 RIVET - ZINCRIVET - ZINC
-
78060-688 RIVET - ZINCRIVET - ZINC
-
83612-016 PAD, MOUNTINGPAD, MOUNTING
-
90123-802 WASHERWASHER
-
101623-786 CLAMP, WIRECLAMP, WIRE
-
113612-037 TAB, RESONATOR MOUNTTAB, RESONATOR MOUNT
-
121623-130 RIVETRIVET
