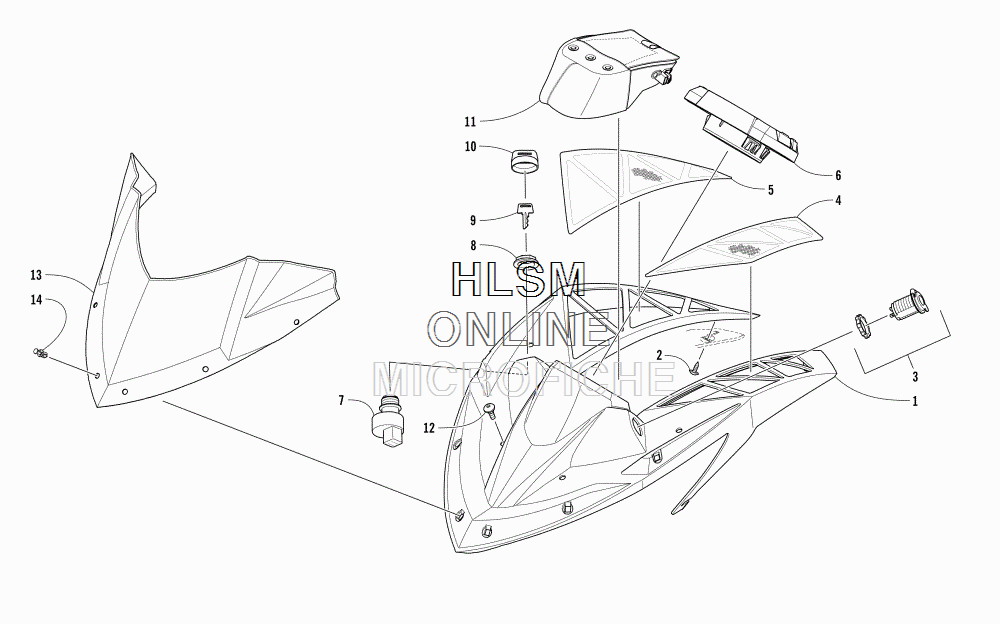

WINDSHIELD AND INSTRUMENTS ASSEMBLIES для Arctic Cat XF 8000 HIGH COUNTRY LTD ES 153 GREEN INTERNATIONAL - 2018 года выпуска
-
№АртикулНазвание
-
15718-704 POD, INSTRUMENT W/DECALS - BLACK (SEE DECALS PAGE FOR DECALS)POD, INSTRUMENT W/DECALS - BLACK (SEE DECALS PAGE FOR DECALS)
-
16706-308 POD, INSTRUMENT - BLACK (SEE DECALS PAGE FOR DECALS)POD, INSTRUMENT - BLACK (SEE DECALS PAGE FOR DECALS)
-
22623-166 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
30641-897 OUTLET, ACCESSORY - 12VOUTLET, ACCESSORY - 12V
-
47606-427 SCREEN, INTAKE - LEFTSCREEN, INTAKE - LEFT
-
57606-426 SCREEN, INTAKE - RIGHTSCREEN, INTAKE - RIGHT
-
60720-045 GAUGE, SPEEDOMETERGAUGE, SPEEDOMETER
-
70609-910 SWITCH, IGNITION (INC. 8-10)SWITCH, IGNITION (INC. 8-10)
-
80430-050 ...NUT, RETAINING...NUT, RETAINING
-
90430-042 ...KEY, IGNITION - Y SERIES (LEFT BLANK)...KEY, IGNITION - Y SERIES (LEFT BLANK)
-
90430-043 ...KEY, IGNITION - Z SERIES (RIGHT BLANK)...KEY, IGNITION - Z SERIES (RIGHT BLANK)
-
100430-054 ...COVER, KEY...COVER, KEY
-
117606-543 BAG, GOGGLEBAG, GOGGLE
-
122623-042 SCREW, SHOULDERSCREW, SHOULDER
-
137606-545 WINDSHIELD - EXTRA LOW - GREENWINDSHIELD - EXTRA LOW - GREEN
-
142623-235 RIVET, PLASTIC - REINSTALLABLERIVET, PLASTIC - REINSTALLABLE
